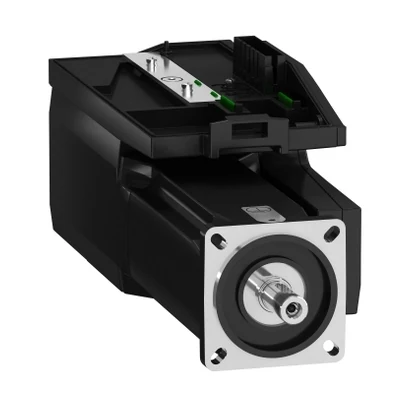

Schneider Electric BMI0703T16A BMI Servo Motor
- Brand: Schneider Electric
- SKU: BMI0703T16A
- MPN: BMI0703T16A
- Price: 158959.54 TRY + VAT · incl. VAT 190751.45 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BMI0703T16A Teknik Veri Föyü (PDF)
Schneider Electric BMI0703T16A BMI Servo Motor.
| Compatible Series | Lexium 32i |
|---|---|
| Product Type | Güç kademeli servo motor |
| Maximum Mechanical Speed | 8000 rpm |
| Rated Control Supply Voltage (Us) | 115…230 V % - 15…10 |
| Supply Voltage Limits | 100–240 V |
| Number of Phases | 1-Phase |
| Mains Frequency | 50/60 Hz - 5…5 % |
| EMC Filter | Entegre |
| Continuous Output Current | 3,5 A @ 8 kHz |
| Peak Output Current (3 s) | 10,5 A @ 230 V için 3 s |
| Continuous Stall Current | 3.5 A |
| Continuous Stall Torque | 3,4 N.m @ 115…230 V monofaze |
| Peak Stall Torque | 8,6 N.m @ 115 V monofaze; 8,6 N.m @ 230 V monofaze |
| Rated Output Power | 700 W @ 230 V monofaze; 400 W @ 115 V monofaze |
| Rated Torque | 2,9 N.m @ 115 V monofaze; 2,2 N.m @ 230 V monofaze |
| Rated Speed | 3200 rpm @ 230 V monofaze; 1400 rpm @ 115 V monofaze |
| Maximum Current (Irms) | 17,8 A @ 115 V, monofaze; 17,8 A @ 230 V, monofaze |
| Compatible Products | Hız kontrol cihazı ünitesi LXM32i CANopen; Hız kontrol cihazı ünitesi LXM32i EtherCAT |
| Shaft End | Kilitli |
| Second Shaft End | Ikinci şaft ucu olmadan |
| Shaft Diameter | 14 mm |
| Shaft Length | 30 mm |
| Key Width | 5 mm |
| Feedback Type | Mutlak tek dönüşlü SinCos Hiperface |
| Speed Feedback Resolution | 32768 nokta/dönüş |
| Brake | None |
| Mounting Support | Uluslararası standart flanş |
| Motor Flange Size | 70 mm |
| Electrical Connection | Baskılı devre kartı konnektörü |
| Torque Constant | 0,81 N.m/A @ 20 °C |
| Back EMF Constant | 54,44 V/krpm @ 20 °C |
| Number of Motor Poles | 10 |
| Rotor Inertia | 1,67 kg.cm² |
| Stator Resistance | 2,58 Ohm @ 20 °C |
| Stator Inductance | 2,28 mH @ 20 °C |
| Stator Electrical Time Constant | 0,88 ms @ 20 °C |
| Maximum Radial Force (Fr) | 730 N @ 1000 rpm; 580 N @ 2000 rpm; 510 N @ 3000 rpm; 460 N @ 4000 rpm; 430 N @ 5000 rpm; 400 N @ 6000 rpm |
| Maximum Axial Force (Fa) | 0,2 x Fr |
| Cooling Type | Doğal konveksiyon |
| Length | 300 mm |
