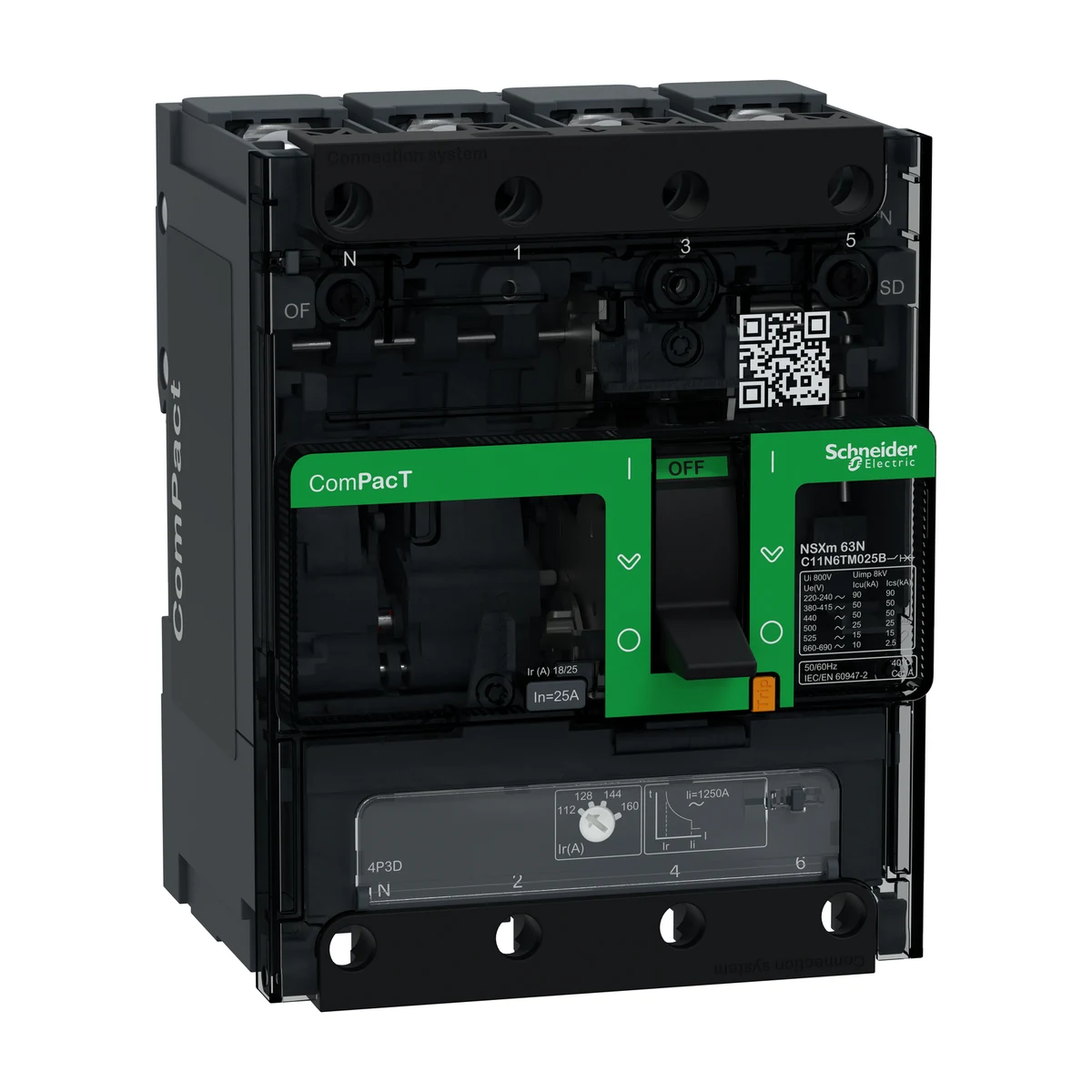

Schneider Electric C11N6TM025B NSXm Circuit Breaker 50 kA TM25D 4P/3T Busbar
- Brand: Schneider Electric
- SKU: C11N6TM025B
- MPN: C11N6TM025B
- Price: 23963.47 TRY + VAT · incl. VAT 28756.16 TRY
- Availability: Made to order
- Molded Case Circuit Breakers
- Schneider Electric Molded Case Circuit Breakers
- Selection guide: Molded Case Circuit Breakers (MCCB) Selection Guide
- Schneider Electric C11N6TM025B Teknik Veri Föyü (PDF)
Schneider Electric C11N6TM025B NSXm Circuit Breaker 50 kA TM25D 4P/3T Busbar. Technical specifications of this model: Short-Circuit Breaking Capacity: 50kA Pole arrangement: 4P
| Short-Circuit Breaking Capacity | 50 kA |
|---|---|
| Pole Arrangement | 4P |
| Series | ComPacT yeni nesil |
| Product Type | Circuit Breaker |
| Device Application | Distribution |
| Protected Pole Configuration | 3d |
| Neutral Position | Sol |
| Rated Current (In) | 25 A @ 40 °C |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Current Type | AC |
| Mains Frequency | 50/60 Hz |
| Suitable for Isolation | Yes (IEC 60947-2) |
| Utilization Category | Category A |
| Release Type | TM-D |
| Trip Unit Technology | Termik Manyetik |
| Protection Functions | LI |
| Control Type | Feed-through |
| Rated Insulation Voltage (Ui) | 800 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Mechanical Endurance | 20000 cycles |
| Electrical Endurance | 20000 cycles @ 440 V In/2; 10000 cycles @ 440 V In; 10000 cycles @ 690 V In/2; 5000 cycles @ 690 V In |
| Power Loss per Pole | 2.8 W |
| Mounting Support | Backplate |
| Mounting Position | Yatay ve dikey; Sırtında düz |
| Top Connection | Front |
| Bottom Connection | Front |
| Connection Range | 35 mm ayırıcılarla; 27 mm ayırıcılar olmadan |
| Trip Unit Rating | 25 A @ 40 °C |
| Earth Leakage Protection | None |
| Product Weight | 1.42 kg |
| Color | Grey (RAL 7016) |
| Standards | EN/IEC 60947-2 |
| Overvoltage category | III |
| Electric Shock Protection Class | Sınıf I üzerinde ön yüz |
| Pollution Degree | 3 (IEC 60664-1) |
| IP Rating | IP40 |
| IK Impact Protection | IK07 (IEC 62262) |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -50…85 °C |
| Relative Humidity | 0…95 % |
