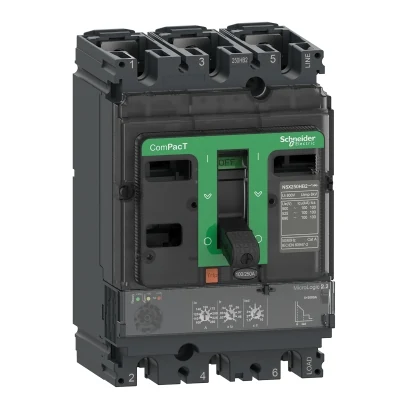

Schneider Electric C16F32D160 NSX160F Micrologic 2.2 36kA
- Brand: Schneider Electric
- SKU: C16F32D160
- MPN: C16F32D160
- Price: 28967.44 TRY + VAT · incl. VAT 34760.93 TRY
- Availability: In stock
- Molded Case Circuit Breakers
- Schneider Electric Molded Case Circuit Breakers
- Selection guide: Molded Case Circuit Breakers (MCCB) Selection Guide
- Schneider Electric C16F32D160 Teknik Veri Föyü (PDF)
Schneider Electric C16F32D160 NSX160F Micrologic 2.2 36kA. Technical specifications of this model: Short-Circuit Breaking Capacity: 36kA
| Short-Circuit Breaking Capacity | 36 kA |
|---|---|
| Series | ComPacT yeni nesil |
| Product Type | Circuit Breaker |
| Device Application | Distribution |
| Pole Arrangement | 3P |
| Protected Pole Configuration | 3d |
| Rated Current (In) | 160 A @ 40 °C |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Current Type | AC |
| Mains Frequency | 50/60 Hz |
| Suitable for Isolation | Yes (EN/IEC 60947-2) |
| Utilization Category | Category A |
| Release Type | Micrologic 2.2 |
| Trip Unit Technology | Elektronik |
| Protection Functions | LSoI |
| Control Type | Feed-through |
| Mounting Type | Fixed |
| Rated Insulation Voltage (Ui) | 800 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Mechanical Endurance | 40000 cycles |
| Electrical Endurance | 40000 cycles @ 440 V In/2; 20000 cycles @ 440 V In; 15000 cycles @ 690 V In/2; 7500 cycles @ 690 V In |
| Power Loss per Pole | 9.2 W |
| Mounting Support | Backplate |
| Mounting Position | Yatay ve dikey; Sırtında düz |
| Top Connection | Front |
| Bottom Connection | Front |
| Connection Range | 35 mm |
| Trip Unit Rating | 160 A @ 40 °C |
| Long-Time Pick-up Adjustment Range (Ir) | 63–160 A |
| Long-Time Delay Adjustment Type (tr) | Fixed |
| Thermal Memory | Açmadan önce ve sonra 20 dakika |
| Instantaneous Pick-up Adjustment Type (Ii) | Fixed |
| Instantaneous Pick-up Adjustment Range (Ii) | 2400 A |
| Earth Leakage Protection | None |
| Zone Selective Interlocking (ZSI) | None |
| Width | 105 mm |
| Height | 161 mm |
| Depth | 86 mm |
| Product Weight | 2.2 kg |
| Standards | EN/IEC 60947-2 |
