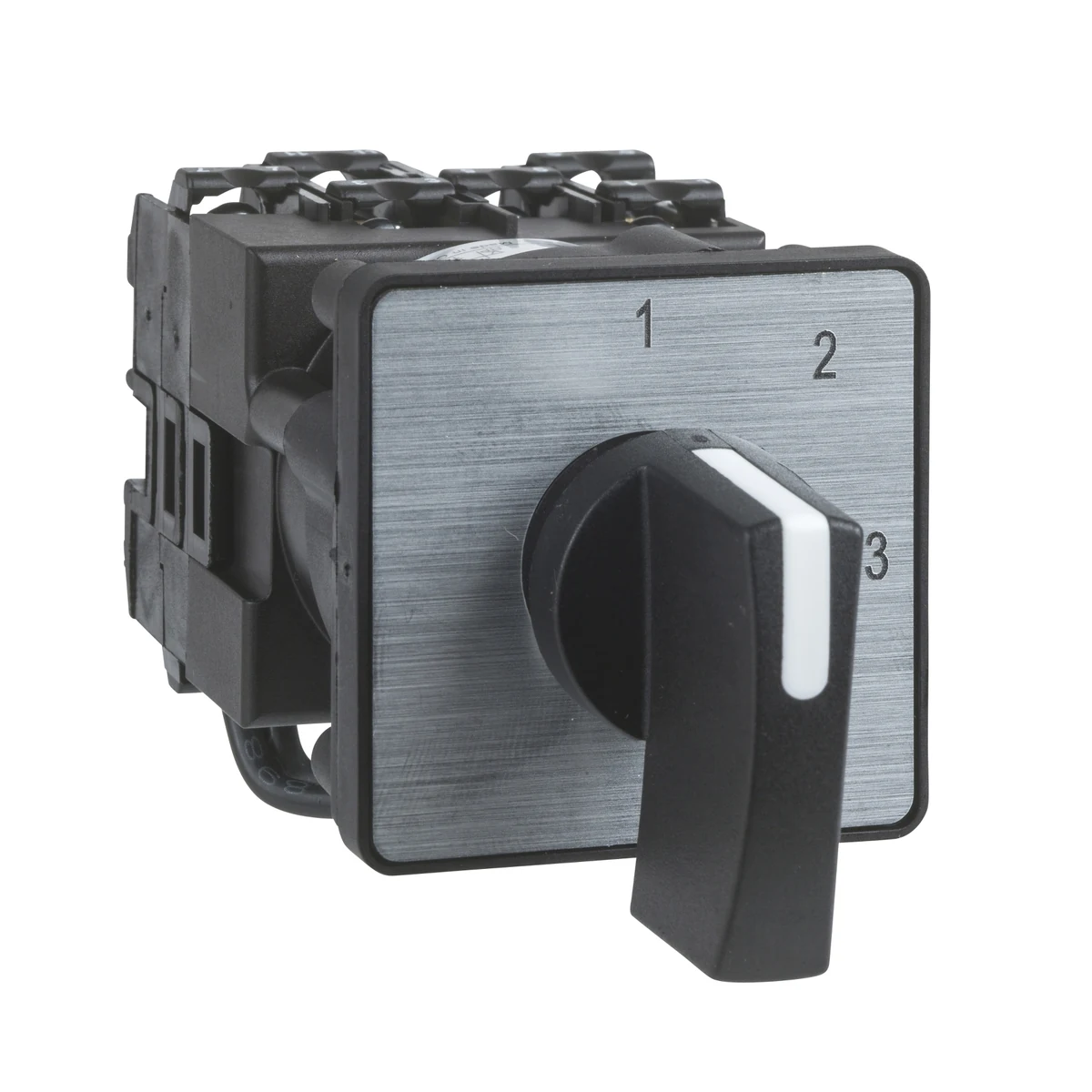

Schneider Electric K2H004ULH COMPL. CAMSWITCH DIA 22
- Brand: Schneider Electric
- SKU: K2H004ULH
- MPN: K2H004ULH
- Price: 4086.58 TRY + VAT · incl. VAT 4903.90 TRY
- Availability: Made to order
- On-Off Switches
- Schneider Electric On-Off Switches
- Selection guide: On-Off Cam Switches (0-1) Selection Guide
- Schneider Electric K2H004ULH Teknik Veri Föyü (PDF)
Schneider Electric K2H004ULH COMPL. CAMSWITCH DIA 22.
| Series | Harmony K |
|---|---|
| Product Type | Eksiksiz kam anahtarı |
| Conventional Free Air Thermal Current (Ith) | 20 A |
| Fixing Method | Çoklu sabitleme |
| Operating Mechanism Type | Black kol, uzunluk = 35 mm |
| Rotary Handle Padlocking | None |
| Pole Arrangement | 4P |
| IP Rating | IP40 |
| Rated Insulation Voltage (Ui) | 690 V (kirlilik derecesi 3) (IEC 60947-1) |
| Conventional Enclosed Thermal Current (Ithe) | 16 A |
| Electrical Endurance | 200000 cycles AC-23; 200000 cycles AC-3; 600000 cycles AC-15; 600000 cycles AC-21 |
| Maximum Operating Rate (cycles/h) | 2,5 cyc/mn AC-21; 2,5 cyc/mn AC-23; 2,5 cyc/mn AC-3; 8,333 cyc/mn AC-15 |
| Short-Circuit Protection | 20 A kartuş sigorta, tip gG |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV yalıtım fonksiyonunda; 6 kV (IEC 947-1) |
| Contact Operation Type | Yavaş kesen |
| Positive Opening | Available |
| Electrical Connection | Tutucu vida kelepçesi terminalleri esnek, kelepçeleme kapasitesi: 2 x 1,5 mm²; Tutucu vida kelepçesi terminalleri katı, kelepçeleme kapasitesi: 1 x 2,5 mm² |
| Mechanical Endurance | 1000000 cycles |
| Product Weight | 0.195 kg |
| Standards | IEC 60947-3 için güç devresi; IEC 60947-5-1 için kontrol devresi; CENELEC EN 50013 |
| Certifications | CSA 240 V 3 hp 3 faz 2 kutup(lar); UL 240 V 0,33 hp 1 faz 2 kutup(lar); CSA 240 V 1 hp 1 faz; UL 240 V 1 hp 3 faz |
| Operating Ambient Temperature | -25…55 °C |
| Storage Temperature | -40…70 °C |
| Shock Resistance | 30 gn (IEC 68-2-27) |
| Vibration Resistance | 5 gn[Alan](f =[Alan]10…150 Hz) (IEC 68-2-6) |
| Electric Shock Protection Class | Sınıf II (IEC 536); Sınıf II |
