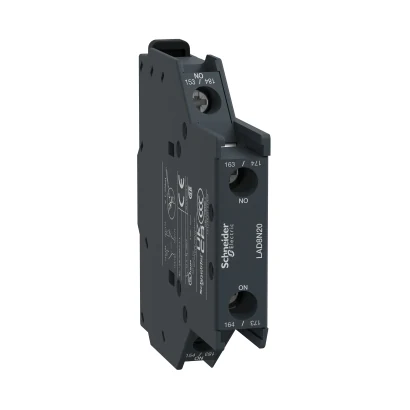

Schneider Electric LAD8N20 TeSys Deca Auxiliary Contact Block 2NO
- Brand: Schneider Electric
- SKU: LAD8N20
- MPN: LAD8N20
- Price: 884.04 TRY + VAT · incl. VAT 1060.85 TRY
- Availability: In stock
- Auxiliary Contacts
- Schneider Electric Auxiliary Contacts
- Selection guide: Switchgear Auxiliary and Trip Alarm Contacts Selection Guide
- Schneider Electric LAD8N20 Teknik Veri Föyü (PDF)
Schneider Electric LAD8N20 TeSys Deca Auxiliary Contact Block 2NO. Technical specifications of this model: Series: TeSys Deca Contact Arrangement: 2NO
| Contact Arrangement | 2NO |
|---|---|
| Series | TeSys Deca |
| Product Type | Yardımcı kontak bloğu |
| Compatible Series | TeSys Deca LC1D09…95 AC coil; TeSys Deca LC1D40A…80A AC Coil; TeSys Deca LC1D115/150; TeSys Deca CAD AC coil; TeSys F LC1F |
| Mounting Position | Yan |
| Power Pole Contact Arrangement | 2 NA |
| Contact Timing | Anlık |
| Rated Operational Voltage (Ue) | 690 V AC 25…400 Hz |
| Rated Operational Current (Ie) | 6 A at 120 V AC-15; 1,04 A at 690 V AC-15; 0,55 A at 125 V DC-13; 0,1 A at 600 V DC-13 |
| Rated Insulation Voltage (Ui) | 690 V (IEC 60947-5-1); 600 V (UL); 600 V (CSA) |
| Conventional Free Air Thermal Current (Ith) | 10 A (at 60 °C) |
| Standards | EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; IEC 60335-1:Clause 30.2; IEC 60335-2-40:Annex JJ; UL 60335-2-40:Annex JJ |
| Certifications | CB Şeması; UL; CSA; CCC; EAC; UKCA |
| Rated Making Capacity (Irms) | 140 A AC (IEC 60947-5-1); 250 A DC (IEC 60947-5-1) |
| Permissible Short-Time Current | 100 A 1 sn; 120 A 500 ms; 140 A 100 ms |
| Protection Type | GG sigorta 10 A |
| Mechanical Endurance | 30 Mcycles |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Non-Overlap Time | 1,5 ms enerji kesmede NK ve NA kontağı arasında çakışma olmaması; 1,5 ms enerjilemede NK ve NA kontağı arasında çakışma olmaması |
| Insulation Resistance | > 10 MOhm |
| Tightening Torque | 1,7 N.m - tornavidayla düz Ø 6 mm; 1,7 N.m - tornavidayla Philips No 2; 1,7 N.m - tornavidayla pozidriv No 2 |
| Height | 72 mm |
| Width | 12.5 mm |
| Depth | 71.3 mm |
| Environmental Conditions | Normal ortam |
| IP Rating | IP20 |
| Storage Temperature | -60…80 °C |
| Operating Ambient Temperature | -5…60 °C |
| Operating Altitude | 3000 m |
