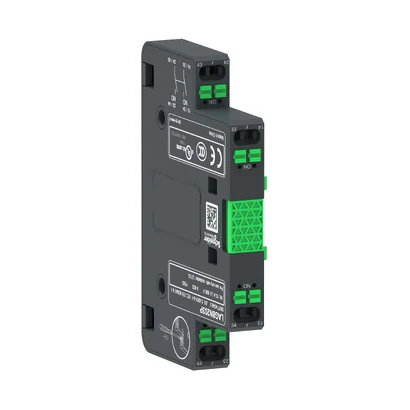

Schneider Electric LAG8N203P TeSys Giga Auxiliary Contact 2NO spring-terminal type L1/R1
- Brand: Schneider Electric
- SKU: LAG8N203P
- MPN: LAG8N203P
- Price: 1623.51 TRY + VAT · incl. VAT 1948.21 TRY
- Availability: Made to order
- Auxiliary Contacts
- Schneider Electric Auxiliary Contacts
- Selection guide: Switchgear Auxiliary and Trip Alarm Contacts Selection Guide
- Schneider Electric LAG8N203P Teknik Veri Föyü (PDF)
Schneider Electric LAG8N203P TeSys Giga Auxiliary Contact 2NO spring-terminal type L1/R1. Technical specifications of this model: Series: TeSys Giga Contact Arrangement: 2NO
| Contact Arrangement | 2NO |
|---|---|
| Series | TeSys Giga |
| Compatible Series | TeSys G LC1G |
| Product Type | Yardımcı kontak bloğu |
| Auxiliary Contact Operation | Anlık |
| Power Pole Contact Arrangement | 2 NA |
| Connection Terminals | Vida kelepçesi terminalleri0,75…2,5 mm²sabit damarlı kablo uçsuz; Vida kelepçesi terminalleri0,75…2,5 mm²esnek ile |
| Mounting Position | Yan |
| Rated Insulation Voltage (Ui) | 600 V (IEC 60947-5-1); 600 V - sertifikalar CSA; 600 V - sertifikalar UL |
| Rated Operational Voltage (Ue) | 600 V AC 25…400 Hz |
| Conventional Free Air Thermal Current (Ith) | 10 A (at 60 °C) |
| Rated Making Capacity (Irms) | 140 A AC (IEC 60947-5-1); 250 A DC (IEC 60947-5-1) |
| Permissible Short-Time Current | 100 A 60 °C 1 sn; 120 A 60 °C 500 ms; 140 A 60 °C 100 ms |
| Protection Type | GG sigorta 10 A |
| Mechanical Endurance | 8 Mcycles |
| Minimum Switching Current | 1 mA |
| Minimum Switching Voltage | 17 V |
| Non-Overlap Time | 1,5 ms enerji kesmede NK ve NA kontağı arasında çakışma olmaması; 1,5 ms enerjilemede NK ve NA kontağı arasında çakışma olmaması |
| Insulation Resistance | > 10 MOhm |
| Height | 55.8 mm |
| Width | 15.4 mm |
| Depth | 84.8 mm |
| Product Weight | 0.05 kg |
| Standards | EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; GB 14048.5; IEC 60335-1:Clause 30.2; IEC 60335-2-40:Annex JJ; UL 60335-1; UL 60335-2-40:Annex JJ |
| Certifications | CB Şeması; CCC; cULus; CE; UKCA |
| IP Rating | IP20 |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -60…80 °C |
| Operating Altitude | 3000 m |
