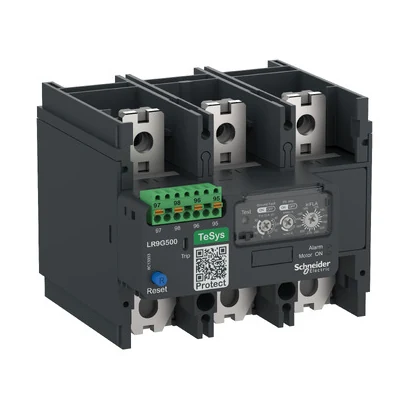

Schneider Electric LR9G500 TeSys Giga Thermal Overload Relay LR9G 500A spring-terminal
- Brand: Schneider Electric
- SKU: LR9G500
- MPN: LR9G500
- Price: 40291.99 TRY + VAT · incl. VAT 48350.39 TRY
- Availability: In stock
- Motor Control Equipment
- Schneider Electric Motor Control Equipment
- Selection guide: Motor Control and Protection Equipment Selection Guide
- Schneider Electric LR9G500 Teknik Veri Föyü (PDF)
Schneider Electric LR9G500 TeSys Giga Thermal Overload Relay LR9G 500A spring-terminal. Technical specifications of this model: Series: TeSys Giga
| Series | TeSys Giga |
|---|---|
| Product Type | Elektronik termal aşırı load rölesi |
| Relay Application | Motor koruma |
| Current Type | AC |
| Trip Class | Class 5E...30E (IEC 60947-4-1) |
| Thermal current setting range | 125–500 A |
| Mains Frequency | 30…60 Hz; 100 Hz |
| Overvoltage category | III |
| Tripping Threshold | 1.125 +/- 0.07 In (IEC 60947-4-1) |
| On-device Signalling | LED; Açma göstergesi |
| Contact Arrangement | 1NO+1NC |
| Conventional Free Air Thermal Current (Ith) | 5 A |
| Rated Control Circuit Voltage (Uc) | 24…500 V AC 50/60 Hz; 24…250 V DC |
| Rated Operational Voltage (Ue) | 1000 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Reset Type | Otomatik sıfırlama; Manuel |
| Mechanical Endurance | 7000 cycles |
| Surge Immunity | 4 kV |
| Tightening Torque | 35 N.m |
| Mounting Support | Kontaktöre doğrudan; Plaka |
| Certifications | CB Şeması; CCC; cULus; UKCA; ATEX; DNV-GL'den EU-RO-MR; EAC |
| IP Rating | IP2X ön yüz kaplar ile (IEC 60529); IP2X ön yüz kaplar ile (VDE 0106) |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -60…80 °C |
| Mechanical Durability | Titreşimler 5…300 Hz 6 gn contactor open; Şoklar 15 gn 11 ms contactor closed |
| Height | 114 mm |
| Width | 140 mm |
| Depth | 140 mm |
| Product Weight | 1.3 kg |
| Color | Koyu gri |
