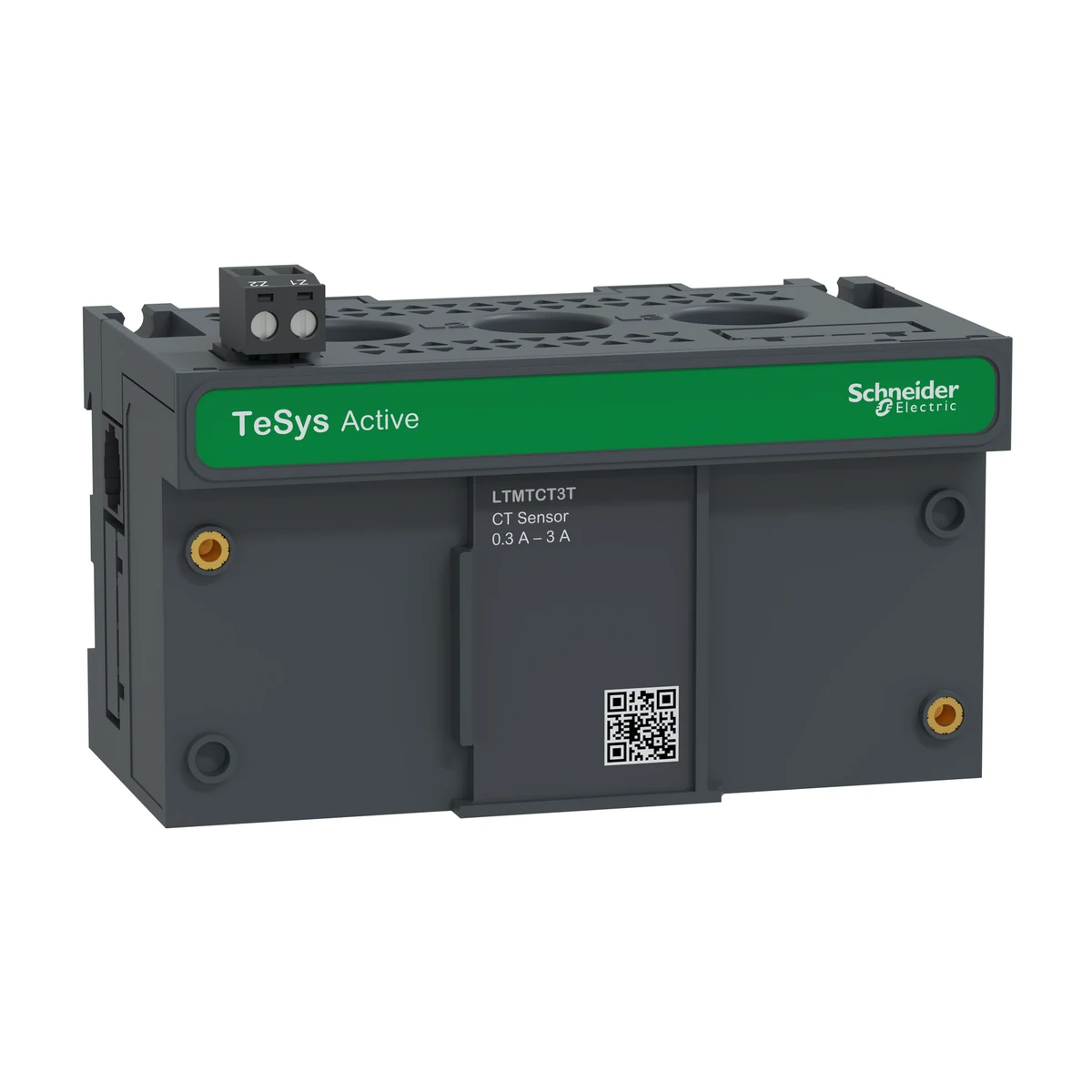

Schneider Electric LTMTCT3T TeSys Tera Current Measuring Horizontal Sensor Module 0.3-3A
- Brand: Schneider Electric
- SKU: LTMTCT3T
- MPN: LTMTCT3T
- Price: 17980.94 TRY + VAT · incl. VAT 21577.13 TRY
- Availability: Made to order
- Motor Control Equipment
- Schneider Electric Motor Control Equipment
- Selection guide: Motor Control and Protection Equipment Selection Guide
- Schneider Electric LTMTCT3T Teknik Veri Föyü (PDF)
Schneider Electric LTMTCT3T TeSys Tera Current Measuring Horizontal Sensor Module 0.3-3A. Technical specifications of this model: Series: TeSys Tera
| Series | TeSys Tera |
|---|---|
| Product Type | Sensör |
| Device Application | Motor koruması |
| Rated Insulation Voltage (Ui) | 690 V (EN/IEC 60947-1) |
| Overvoltage category | III |
| Pollution Degree | 3 |
| Rated Current (In) | 0,3…3 A at 60…690 V, AC 45…65 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV akım veya gerilim ölçüm devresi |
| Short-Circuit Withstand Strength | 100 kA (EN/IEC 60947-4-1) |
| Measurement Accuracy | +/- 1 % akım |
| Mounting Type | Yatay |
| Connection Range | 5 mm |
| Input Type | Analog |
| Depth | 60.5 mm |
| Height | 74.7 mm |
| Width | 110.3 mm |
| Tightening Torque | Kontrol devresi: 0,5 N.m - tornavidayla düz 3 mm |
| Certifications | IEC; UL; cUL |
| Standards | EN/IEC 60947-4-1; UL/CSA 60947-4-1 |
| Fire Resistance | 650 °C (EN/IEC 60695-2-12); 960 °C (UL 94) |
| Storage Temperature | -40…80 °C |
| Operating Altitude | <= 2000 m değer kaybı olmadan |
| Operating Ambient Temperature | -20…70 °C |
