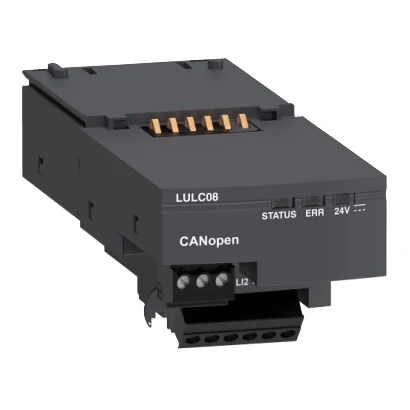

Schneider Electric LULC08 TeSys U Canopen Communication Module 24VDC
- Brand: Schneider Electric
- SKU: LULC08
- MPN: LULC08
- Price: 18286.74 TRY + VAT · incl. VAT 21944.09 TRY
- Availability: Made to order
- Motor Control Equipment
- Schneider Electric Motor Control Equipment
- Selection guide: Motor Control and Protection Equipment Selection Guide
- Schneider Electric LULC08 Teknik Veri Föyü (PDF)
Schneider Electric LULC08 TeSys U Canopen Communication Module 24VDC. Technical specifications of this model: Communication Protocol: Canopen Series: TeSys U
| Communication Protocol | CanOpen |
|---|---|
| Series | TeSys U |
| Product Type | Haberleşme Modülü |
| Compatible Products | LUCA; LUCL; LUCD; LUCC; LUCM; LUCB |
| Device Application | Haberleşme |
| Compatible Series | TeSys TeSys U LUB tek yönlü güç kaidesi; TeSys TeSys U LU2B enversör güç kaidesi |
| Available Functions | Haberleşme modülü |
| Mounting Type | Takılabilir |
| Mounting Position | Ön taraf |
| Physical Interface | 9 yönlü SUB-D dişi |
| Fieldbus Type | CANopen |
| Current Consumption | 1,5 mA @ 24 V DC 20…28 V |
| Response Time | 10 ms +/- 30 % 0 durumuna değişim; 10 ms +/- 30 % 1 durumuna değişim |
| Number of Outputs | 2 yolverici-kontrolör bobinli çalışma için; 1 |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Output Current | <= 500 mA |
| Protection Type | GL sigorta 2 A |
| Local Signalling | 3 LED ön panel |
| Connection Range | 3.81 mm |
| Tightening Torque | 0,2…0,25 N.m2,5 mm |
| Standards | DR 303-2; CIADS-301 V4.02 |
| Operating Ambient Temperature | -25…55 °C |
| IP Rating | IP20 |
