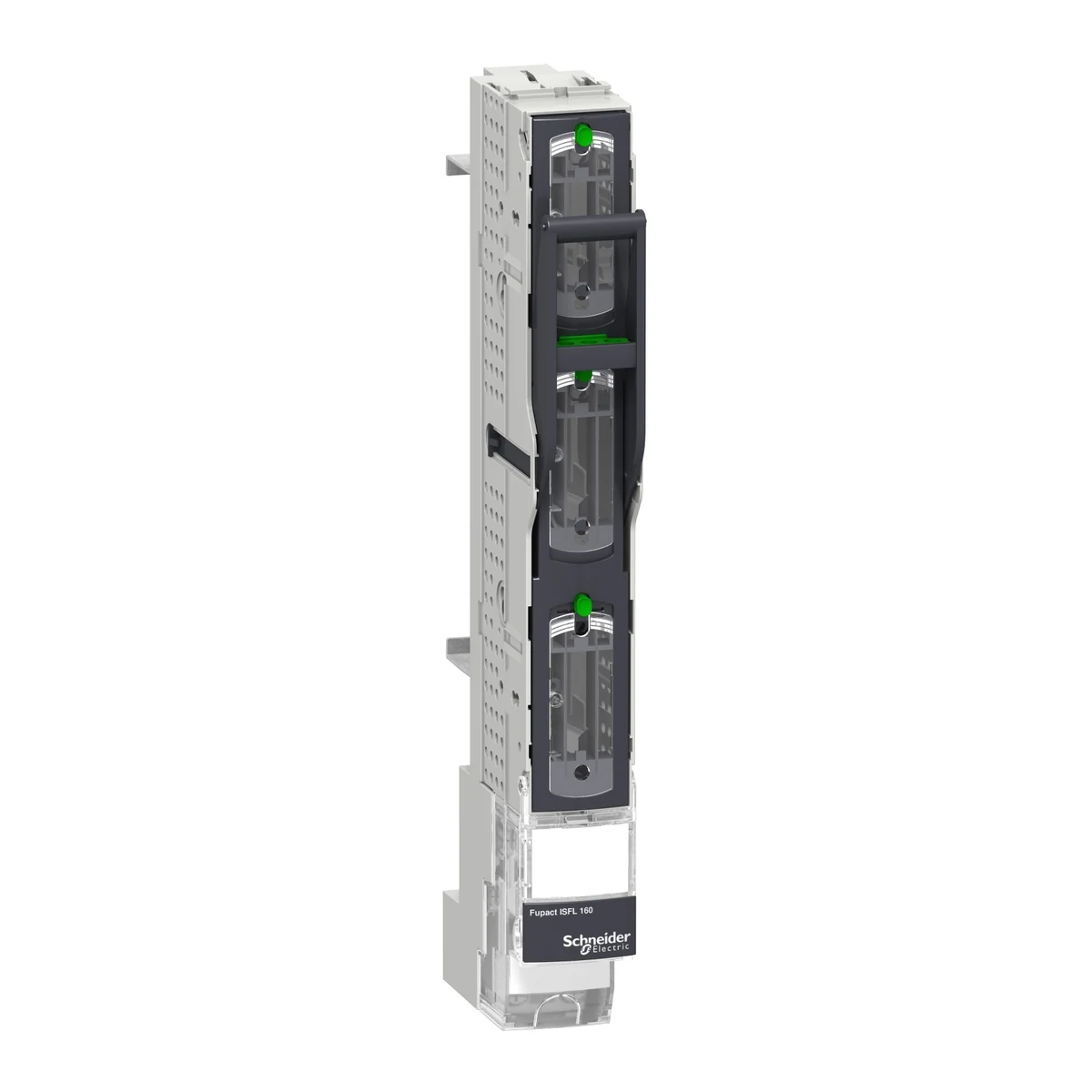

Schneider Electric LV480851 isfl160
- Brand: Schneider Electric
- SKU: LV480851
- MPN: LV480851
- Price: 13121.53 TRY + VAT · incl. VAT 15745.84 TRY
- Availability: Made to order
- Vertical Type Load Break Switches
- Schneider Electric Vertical Type Load Break Switches
- Selection guide: Vertical Type Load Break Switches Selection Guide: Technical Criteria & Application Standards
- Schneider Electric LV480851 Teknik Veri Föyü (PDF)
Schneider Electric LV480851 isfl160.
| Series | FuPacT |
|---|---|
| Product Type | Sigortalı load ayırıcı |
| Device Application | Ekipman koruma, izleme ve kontrol; Dağıtım |
| Signalling Function | Ayrı sigorta monitörü |
| Pole Arrangement | 1 x 3P anahtarlanabilir |
| Number of Fuse Carriers | 3 |
| Fuse Type | DIN |
| Fuse Size | NH00; NH000 |
| Suitable for Isolation | Yes (EN/IEC 60947-3) |
| Apparent Breaking | Yes |
| Contact Position Indication | Yes |
| Conventional Enclosed Thermal Current (Ithe) | 160 A @ 40 °C, sigorta basina güç dagilimi: 12 W |
| Maximum Power Loss per Pole | 19 W |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz; 800 V AC 50/60 Hz AC-20; 800 V DC DC-20 |
| Rated Insulation Voltage (Ui) | 1000 V AC 50/60 Hz; 1000 V DC |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA için 1 s |
| Rated Making and Breaking Capacity | 7,65 kA @ 690 V |
| Rated Duty | Kesintisiz |
| Control Type | Sigorta taşıyıcı kolu |
| Locking Option | 3 kilit |
| Mounting Position | Yatay; Dikey |
| Mounting Type | Fixed |
| Mounting Support | Baralar |
| Contact Operation Type | Tek mola |
| Mechanical Endurance | 1400 cycles |
| Electrical Endurance | AC-21B: 200 cycles 690 V AC 50/60 Hz; AC-22B: 200 cycles 500 V AC 50/60 Hz; AC-23B: 200 cycles 415 V AC 50/60 Hz |
| Connection Terminals | Kablo konnektörleri 95 mm² |
| Tightening Torque | 14 N.m |
| Width | 50 mm |
| Height | 405 mm |
| Depth | 123 mm |
| Product Weight | 1.3 kg |
| Standards | EN/IEC 60947-1; EN/IEC 60947-3 |
| Electric Shock Protection Class | Sınıf II ön yüz |
| IP Rating | IP20 |
| IK Impact Protection | IK07 (EN 50102) |
| Pollution Degree | 3 (IEC 60947) |
| Operating Ambient Temperature | -20…70 °C |
| Storage Temperature | -50…85 °C |
