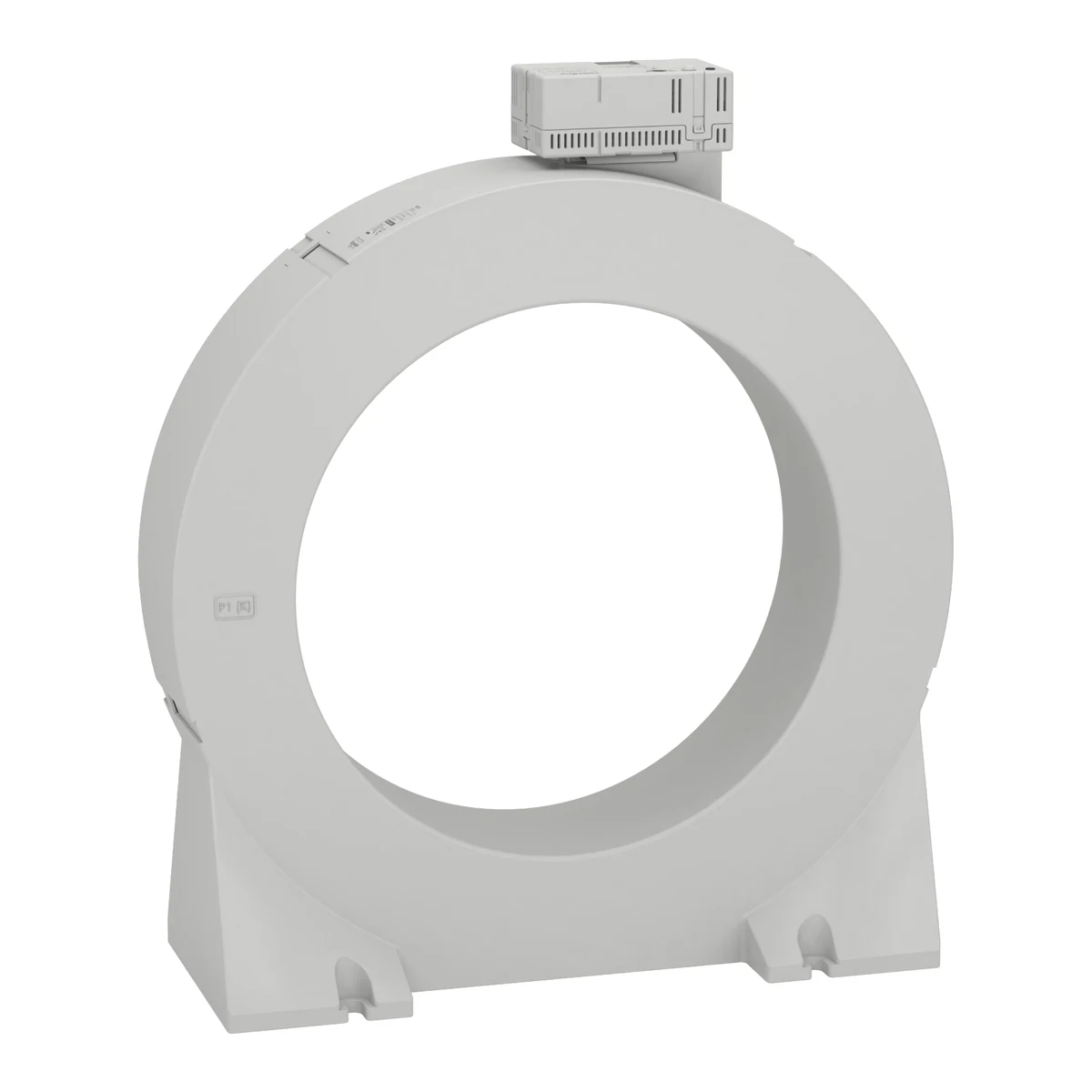

Schneider Electric LV481014 Closed Toroid VigiPact B Type TB210mm
- Brand: Schneider Electric
- SKU: LV481014
- MPN: LV481014
- Price: 244305.08 TRY + VAT · incl. VAT 293166.10 TRY
- Availability: Made to order
- Current Transformers
- Schneider Electric Current Transformers
- Selection guide: Current Transformers Selection Guide
- Schneider Electric LV481014 Teknik Veri Föyü (PDF)
Schneider Electric LV481014 Closed Toroid VigiPact B Type TB210mm.
| Series | VigiPacT |
|---|---|
| Product Type | Toprak kaçağı akım sensörü |
| Device Application | Ekipman izleme ve kontrolü |
| Compatible Series | VigiPacT RHB rezidüel akım koruma rölesi; VigiPacT RHB wiring kit |
| Current Sensor Type | B type closed toroid |
| Rated Operational Current (Ie) | 630 A |
| Mains Frequency | 50/60 Hz; 0…2000 Hz |
| Rated Short-Circuit Withstand Current (Ik) | 25 kA için 0,5 sn |
| Residual Short-Circuit Withstand Current | 36 kA / 0,5 sn (IEC 60947-2) |
| Rated Insulation Voltage (Ui) | 800 V |
| Overvoltage category | III |
| Rated Lightning Impulse Withstand Voltage (Up) | 8 kV |
| Mounting Method | Sabit (düz devre kartı) |
| Connection Terminals | Önceden hazırlanmış bağlantı |
| Diameter | Dahili: 210 mm |
| Product Weight | 4.29 kg |
| Height | 339 mm |
| Width | 339 mm |
| Depth | 113 mm |
| IP Rating | Gövde: IP40; Konnektörler: IP20 |
| Pollution Degree | Seviye 2 (IEC 60664-1) |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -25…70 °C |
| Standards | IEC60947-2 |
| Certifications | CE |
