Schneider Electric LV481523 FuPact GS Load Break Switch 3P 125A 22x58mm
- Brand: Schneider Electric
- SKU: LV481523
- MPN: LV481523
- Price: 19181.90 TRY + VAT · incl. VAT 23018.28 TRY
- Availability: Made to order
- Load Break Switches
- Schneider Electric Load Break Switches
- Selection guide: Load Break Switches Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric LV481523 Teknik Veri Föyü (PDF)

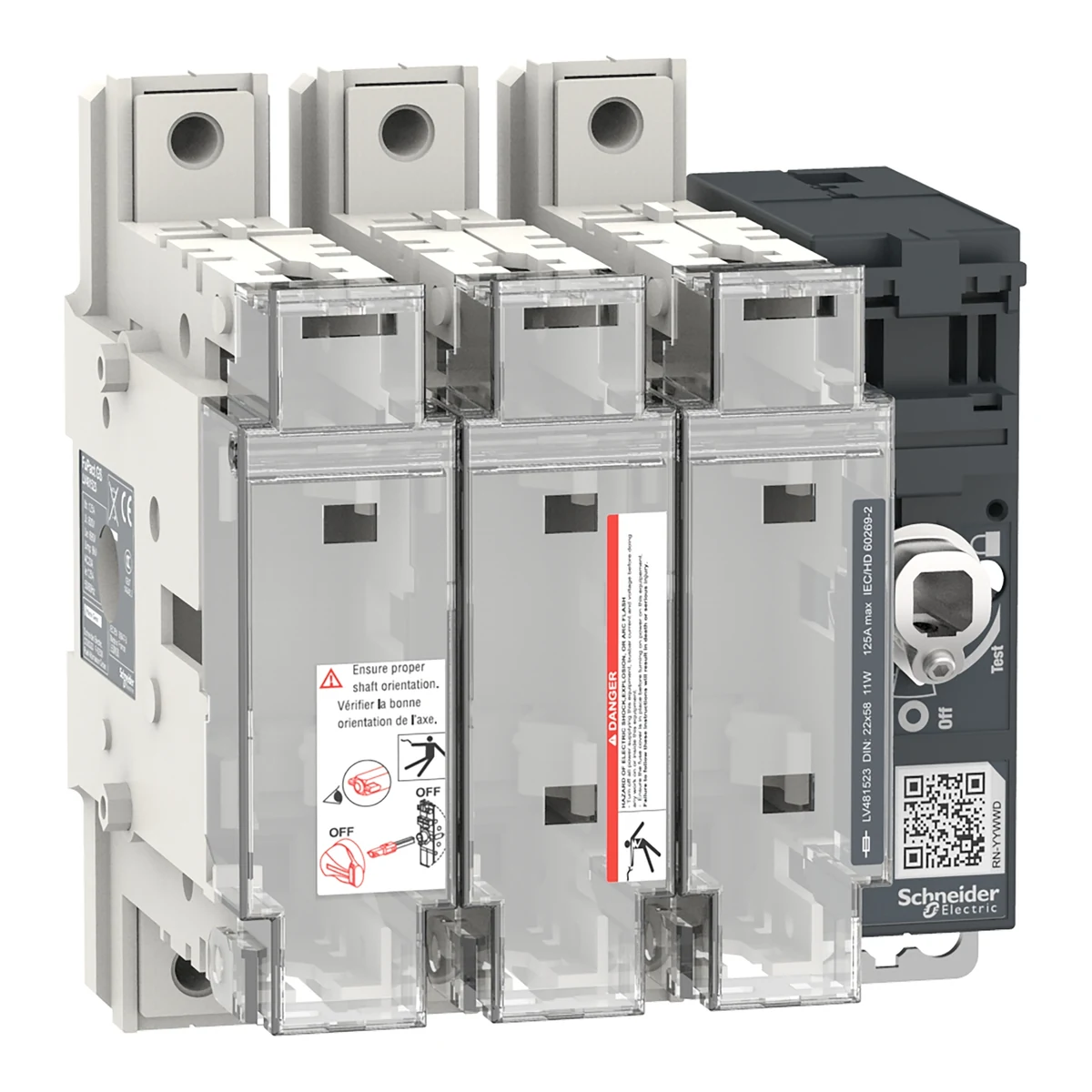

Schneider Electric LV481523 FuPact GS Load Break Switch 3P 125A 22x58mm.
| Series | FuPacT |
|---|---|
| Product Type | load ayırıcı sigortası |
| Device Application | Ekipman koruma, izleme ve kontrol; Dağıtım |
| Pole Arrangement | 3P |
| Number of Fuse Carriers | 3 |
| Fuse Type | NFC |
| Fuse Size | 22 x 58 mm |
| Suitable for Isolation | Yes (EN/IEC 60947-3) |
| Apparent Breaking | None |
| Contact Position Indication | Yes |
| Conventional Enclosed Thermal Current (Ithe) | 125 A @ 35 °C, sigorta basina güç dagilimi: 10,4 W |
| Maximum Power Loss per Pole | 8.6 W |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz; 800 V AC 50/60 Hz AC-20 |
| Rated Insulation Voltage (Ui) | 800 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Contact Arrangement | 3NO |
| Operating Handle Type | Doğrudan ön cephe; Harici ön cephe; Harici sağ taraf |
| Locking Option | 3 kilit |
| Mounting Position | Dikey |
| Mounting Type | Fixed |
| Mounting Support | Backplate |
| Mechanical Endurance | 10000 cycles |
| Electrical Endurance | AC-22A: 1000 cycles 415 V AC 50/60 Hz; AC-23A: 1000 cycles 415 V AC 50/60 Hz; AC-22A: 1000 cycles 690 V AC 50/60 Hz; AC-23A: 1000 cycles 690 V AC 50/60 Hz |
| Connection Terminals | Güç devresi: çıplak kablo konnektörleri 20 mm²; Güç devresi: pabuç-halka terminalleri 35…95 mm² |
| Tightening Torque | Güç devresi: 12 N.m |
| Width | 148 mm |
| Height | 162 mm |
| Depth | 116 mm |
| Product Weight | 1.5 kg |
| Standards | EN/IEC 60947-1; EN/IEC 60947-3 |
| Certifications | CE; CCC; EAC |
| Electric Shock Protection Class | Sınıf II ön yüz |
| IP Rating | IP20 (IEC 60529 (terminal kapağı ile)) |
| IK Impact Protection | IK07 (EN 50102) |
| Pollution Degree | 3 (IEC 60947) |
| Operating Ambient Temperature | -20…70 °C |
| Storage Temperature | -40…80 °C |
| Fire Resistance | 850 °C sigorta kapağı (IEC 60695-2-1); 960 °C gövde (IEC 60695-2-1) |
