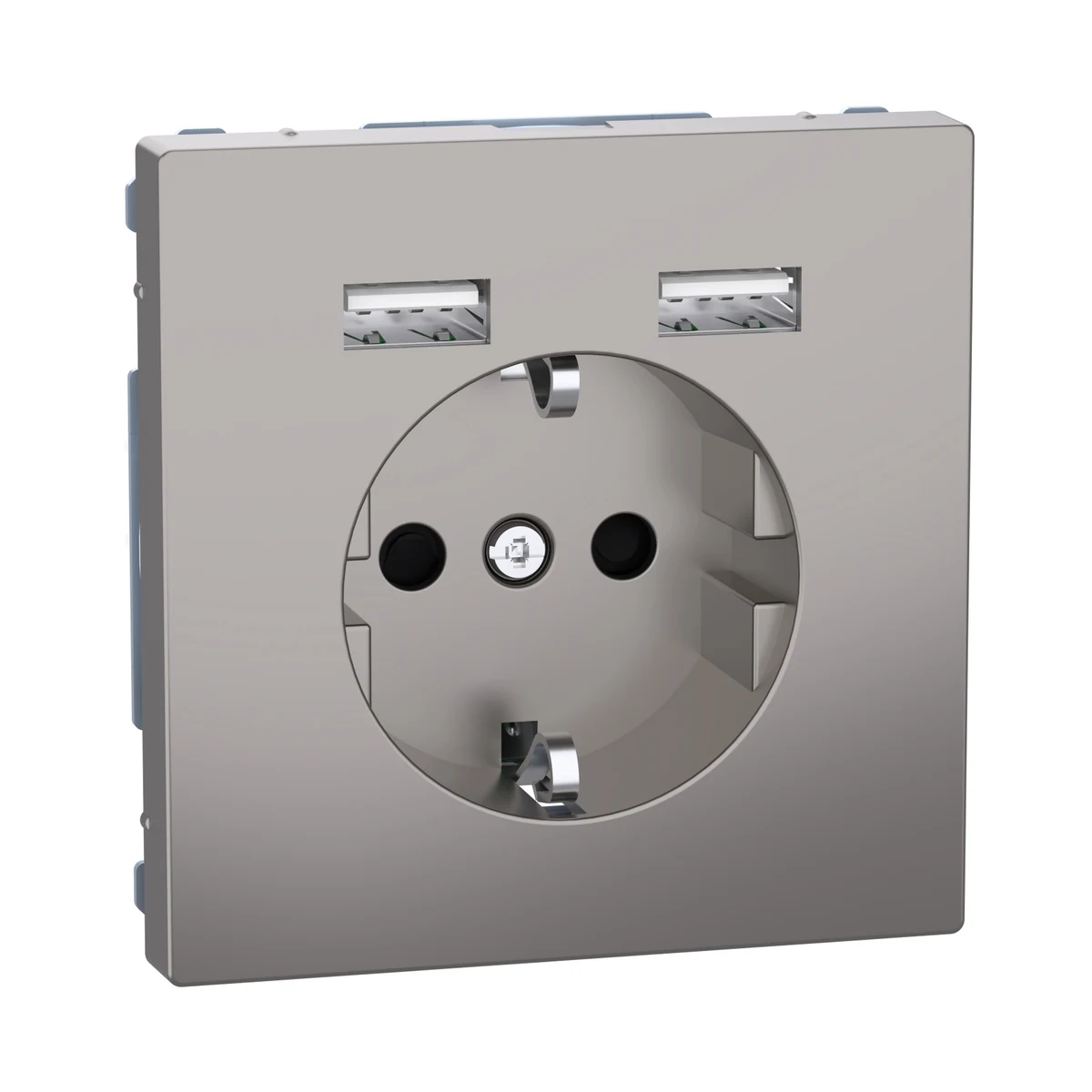

Schneider Electric MEG2366-6050 Merten System-D, Type A+A Grounded Socket with 2.4A USB, Nickel Metallic
- Brand: Schneider Electric
- SKU: MEG2366-6050
- GTIN: 4042811217693
- MPN: MEG2366-6050
- Price: 7339.16 TRY + VAT · incl. VAT 8806.99 TRY
- Availability: Made to order
- Grounded Wall Sockets
- Schneider Electric Grounded Wall Sockets
- Selection guide: What Is a Grounded Socket? Grounded Wall Socket Selection Guide
- Schneider Electric MEG2366-6050 Teknik Veri Föyü (PDF)
Schneider Electric MEG2366-6050 Merten System-D, Type A+A Grounded Socket with 2.4A USB, Nickel Metallic. Technical specifications of this model: Series: Merten System-D Mechanisms
| Series | Merten System-D Mekanizmalar |
|---|---|
| Product Type | USB şarj cihazı + priz |
| Device Presentation | Sabitleme çerçevesi ve kapak plakası ile mekanizma |
| Enclosure Construction | Flush-mounted |
| Number of sockets | 1 |
| Output Pole Configuration | 2 kutuplu + toprak (E) |
| Socket Standard | Topraklı priz (Schuko) |
| Rated Current | 16 A |
| USB Power Supply Type | USB Tip A + A |
| Integrated Connection Type | 1 priz 250 V AC, maksimum load akımı: 16 A; 2 USB bağlantısı 5 V DC, maksimum load akımı: 2,4 A |
| Input Power | 12 W |
| Mounting Support | CEE60 montaj kutusu |
| Earthing Tab Position | Düz konum 0° |
| Fixing Method | Vida ve pençe ile |
| Color Tone | Nikel |
| Surface Finish Appearance | Metalik |
| Surface Finishing | Boyalı |
| Storage Temperature | -20…60 °C |
| Operating Ambient Temperature | -5…35 °C |
| Service Life in Cycles | 30000 cycles |
| Connection Terminals | Vidasız terminal |
| Number of Terminals | 3 |
| Number of Cables | 2 |
| Terminal Connection Capacity | 1,5 - 2,5 mm² (tek telli kablo); 1,5 - 2,5 mm² (çok telli kablo) |
| Material | Termoplastik; PC (Polikarbonat): gövde |
| Cable Stripping Length | 11 mm |
| Height | 71 mm |
| Width | 71 mm |
| Depth | 44 mm |
| Flush Mounting Depth | 32 mm |
| Product Weight | 0.092 kg |
| Standards | DIN VDE 0620-1; IEC 60884-1; EN/IEC 60950; NEN-EN 50198-2 |
| Certifications | KEMA-KEUR; CB; NEMKO; SEMKO; VDE; FIMKO |
| IK Impact Protection | IK04 |
