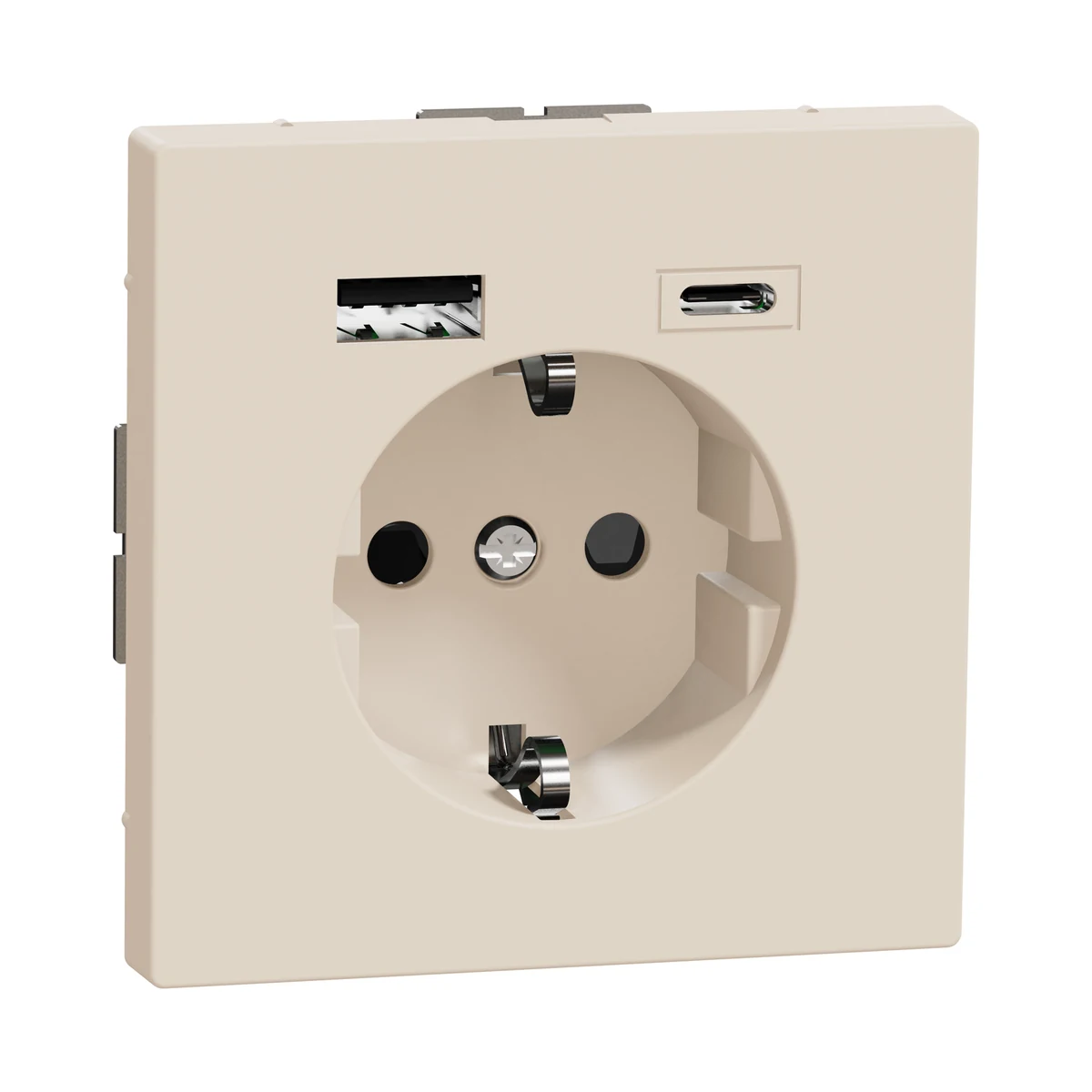

Schneider Electric MEG2367-6033 Merten System-D, Type A+C Grounded Socket with 3A USB, Sahara
- Brand: Schneider Electric
- SKU: MEG2367-6033
- GTIN: 4042811221058
- MPN: MEG2367-6033
- Price: 8562.35 TRY + VAT · incl. VAT 10274.82 TRY
- Availability: Made to order
- Grounded Wall Sockets
- Schneider Electric Grounded Wall Sockets
- Selection guide: What Is a Grounded Socket? Grounded Wall Socket Selection Guide
- Schneider Electric MEG2367-6033 Teknik Veri Föyü (PDF)
Schneider Electric MEG2367-6033 Merten System-D, Type A+C Grounded Socket with 3A USB, Sahara. Technical specifications of this model: Series: Merten System-D Mechanisms
| Series | Merten System-D Mekanizmalar |
|---|---|
| Product Type | USB şarj cihazı + priz |
| Device Presentation | Sabitleme çerçevesi ve kapak plakası ile mekanizma |
| Enclosure Construction | Flush-mounted |
| Number of sockets | 1 |
| Output Pole Configuration | 2 kutuplu + toprak (E) |
| Socket Standard | Topraklı priz (Schuko) |
| Rated Current | 16 A |
| USB Power Supply Type | USB Tip A + C |
| Integrated Connection Type | 1 priz 250 V AC, maksimum load akımı: 16 A; 1 USB Tip A 5 V DC, maksimum load akımı: 2,4 A; 1 USB Tip C 5 V DC, maksimum load akımı: 3 A |
| Earthing Tab Position | Düz konum 0° |
| Fixing Method | Vida ve pençe ile |
| Color Tone | Sahara rengi |
| Surface Finish Appearance | Parlak |
| Surface Finishing | Boyalı |
| Storage Temperature | -20…60 °C |
| Operating Ambient Temperature | -5…40 °C |
| Connection Terminals | Vidasız terminal |
| Number of Terminals | 3 |
| Number of Cables | 2 |
| Terminal Connection Capacity | 1,5 - 2,5 mm² (tek telli kablo); 1,5 - 2,5 mm² (çok telli kablo) |
| Material | Termoplastik |
| Cable Stripping Length | 11 mm |
| Height | 71 mm |
| Width | 71 mm |
| Depth | 44 mm |
| Flush Mounting Depth | 32 mm |
| Product Weight | 0.092 kg |
| Standards | IEC 60884-1; IEC 62368-1; SS 428 08 34; SFS 5610; IEC/EN 61558-2 |
| Certifications | KEMA-KEUR; FIMKO; SEMKO; VDE; NEMKO; OVE |
| Directives | 2004/108/EC - elektromanyetik uyumluluk; 2006/95/EC - alçak gerilim direktifi |
| IK Impact Protection | IK04 |
| IP Rating | IP20 |
| Aesthetic Dimension | 71 x 71 mm |
