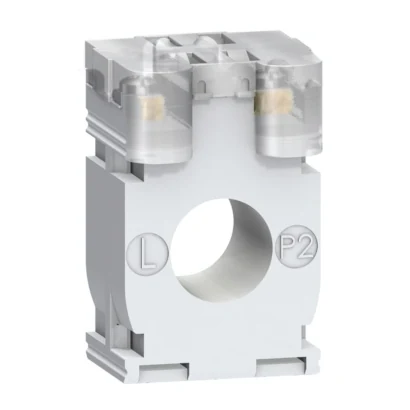

Schneider Electric METSECT5CC025 Current Transformer - CC Type, 21mm 250 A
- Brand: Schneider Electric
- SKU: METSECT5CC025
- MPN: METSECT5CC025
- Price: 1684.67 TRY + VAT · incl. VAT 2021.60 TRY
- Availability: Made to order
- Current Transformers
- Schneider Electric Current Transformers
- Selection guide: Current Transformers Selection Guide
- Schneider Electric METSECT5CC025 Teknik Veri Föyü (PDF)
Schneider Electric METSECT5CC025 Current Transformer - CC Type, 21mm 250 A. Technical specifications of this model: Primary Current: 250 A Manufacturer Product Group: Current transformers
| Primary Current | 250 A |
|---|---|
| Manufacturer Product Group | Akım trafoları |
| Series | PowerLogic |
| Product Type | Akım transformatörü |
| Secondary Current | 5 A |
| Accuracy Class | Class 0.5 @ 5 VA; Class 1 @ 6 VA; Class 3 @ 7 VA |
| Rated Current (Ir) | 250 A |
| Current Transformer Type | Kablo için tropik; Solid core |
| Current Transformer Ratio | 250/5 |
| Conventional Free Air Thermal Current (Ith) | 15 kA |
| Dynamic Withstand Current | 2,5 Ith |
| Rated Operational Voltage (Ue) | < 720 V AC 50/60 Hz |
| Rated Insulation Voltage (Ui) | 3 kV 50 Hz 1 dakika için |
| Mounting Type | Vidalarla; Takılabilir |
| Mounting Support | Montaj plakası; DIN rayı |
| Width | Dış: 44 mm |
| Height | Dış: 65 mm |
| Depth | Frame : 30 mm; Toplam : 37 mm |
| Diameter | 21 mm |
| Product Weight | 0.175 kg |
| Rated Impulse Withstand Voltage (Uimp) | 3 kV |
| Insulation Class | Sınıf B |
| Cable Outer Diameter | 21 mm |
| Sealing | Available |
| Standards | VDE 0414; IEC 61869-2 |
| Certifications | CE |
| IP Rating | IP20 |
| Relative Humidity | 0…95 % |
| Operating Ambient Temperature | -25…60 °C |
