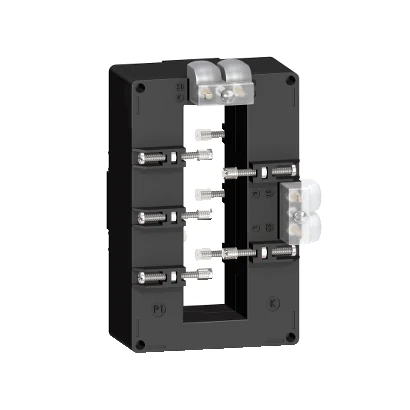

Schneider Electric METSECT5DB200 Current Transformer - dB Type, 38x27, 2000 A
- Brand: Schneider Electric
- SKU: METSECT5DB200
- MPN: METSECT5DB200
- Price: 7311.36 TRY + VAT · incl. VAT 8773.63 TRY
- Availability: Made to order
- Current Transformers
- Schneider Electric Current Transformers
- Selection guide: Current Transformers Selection Guide
- Schneider Electric METSECT5DB200 Teknik Veri Föyü (PDF)
Schneider Electric METSECT5DB200 Current Transformer - dB Type, 38x27, 2000 A. Technical specifications of this model: Primary Current: 2000 A Manufacturer Product Group: Current transformers
| Primary Current | 2000 A |
|---|---|
| Manufacturer Product Group | Akım trafoları |
| Series | PowerLogic |
| Product Type | Akım transformatörü |
| Secondary Current | 5 A |
| Accuracy Class | Class 0.5 @ 15 VA; Class 1 @ 20 VA |
| Rated Current (Ir) | 2000 A |
| Current Transformer Type | Busbar için tropik; Solid core |
| Current Transformer Ratio | 2000/5 |
| Conventional Free Air Thermal Current (Ith) | 60 kA |
| Dynamic Withstand Current | 2,5 Ith |
| Rated Operational Voltage (Ue) | < 720 V AC 50/60 Hz |
| Rated Insulation Voltage (Ui) | 3 kV |
| Mounting Type | Yalıtımlı kilitleme vidası |
| Mounting Support | Busbar |
| Width | Dahili: 38 mm; Dış: 99 mm |
| Height | Dahili: 127 mm; Dış: 160 mm |
| Depth | Frame : 40 mm; Toplam : 78,4 mm |
| Product Weight | 0.91 kg |
| Rated Impulse Withstand Voltage (Uimp) | 3 kV |
| Insulation Class | Sınıf B |
| Sealing | Available |
| Standards | VDE 0414; IEC 61869-2 |
| Certifications | CE; EAC |
| IP Rating | IP20 |
| Relative Humidity | 0…95 % |
| Operating Ambient Temperature | -25…50 °C |
