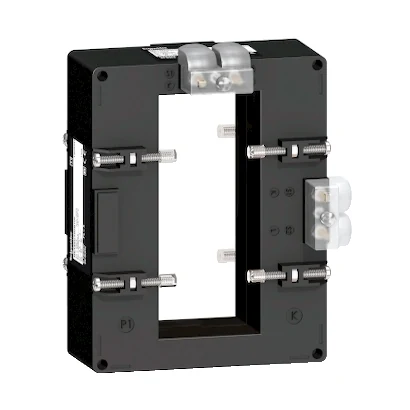

Schneider Electric METSECT5DC300 Current Transformer - DC Type, 52x127, 3000 A
- Brand: Schneider Electric
- SKU: METSECT5DC300
- MPN: METSECT5DC300
- Price: 8506.75 TRY + VAT · incl. VAT 10208.10 TRY
- Availability: Made to order
- Current Transformers
- Schneider Electric Current Transformers
- Selection guide: Current Transformers Selection Guide
- Schneider Electric METSECT5DC300 Teknik Veri Föyü (PDF)
Schneider Electric METSECT5DC300 Current Transformer - DC Type, 52x127, 3000 A. Technical specifications of this model: Primary Current: 3000 A Manufacturer Product Group: Current transformers
| Primary Current | 3000 A |
|---|---|
| Manufacturer Product Group | Akım trafoları |
| Series | PowerLogic |
| Product Type | Akım transformatörü |
| Secondary Current | 5 A |
| Accuracy Class | Class 0.5 @ 30 VA; Class 1 @ 50 VA |
| Rated Current (Ir) | 3000 A |
| Current Transformer Type | Busbar için tropik; Solid core |
| Current Transformer Ratio | 3000/5 |
| Conventional Free Air Thermal Current (Ith) | 60 kA |
| Dynamic Withstand Current | 2,5 Ith |
| Rated Operational Voltage (Ue) | < 720 V AC 50/60 Hz |
| Rated Insulation Voltage (Ui) | 3 kV |
| Mounting Type | Yalıtımlı kilitleme vidası |
| Mounting Support | Busbar |
| Width | Dış: 125 mm; Dahili: 54 mm |
| Height | Dış: 160 mm; Dahili: 127 mm |
| Depth | Frame : 40 mm; Toplam : 87 mm |
| Product Weight | 1.097 kg |
| Rated Impulse Withstand Voltage (Uimp) | 3 kV |
| Insulation Class | Sınıf B |
| Sealing | Available |
| Standards | IEC 61869-2; VDE 0414 |
| Certifications | EAC; CE |
| IP Rating | IP20 |
| Relative Humidity | 0…95 % |
| Operating Ambient Temperature | -25…50 °C |
