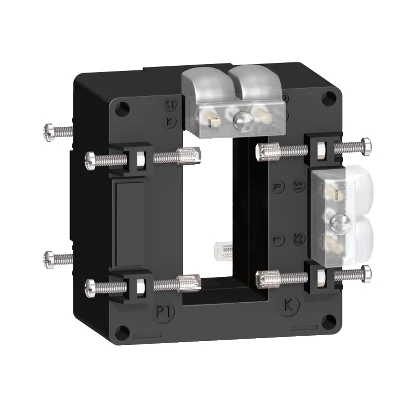

Schneider Electric METSECT5DH150 Current Transformer - DH Type, 38x102, 1500 A
- Brand: Schneider Electric
- SKU: METSECT5DH150
- MPN: METSECT5DH150
- Price: 6594.12 TRY + VAT · incl. VAT 7912.94 TRY
- Availability: Made to order
- Current Transformers
- Schneider Electric Current Transformers
- Selection guide: Current Transformers Selection Guide
- Schneider Electric METSECT5DH150 Teknik Veri Föyü (PDF)
Schneider Electric METSECT5DH150 Current Transformer - DH Type, 38x102, 1500 A. Technical specifications of this model: Primary Current: 1500 A Manufacturer Product Group: Current transformers
| Primary Current | 1500 A |
|---|---|
| Manufacturer Product Group | Akım trafoları |
| Series | PowerLogic |
| Product Type | Akım transformatörü |
| Secondary Current | 5 A |
| Accuracy Class | Class 0.5 @ 12 VA; Class 1 @ 15 VA |
| Rated Current (Ir) | 1500 A |
| Current Transformer Type | Busbar için tropik; Solid core |
| Current Transformer Ratio | 1500/5 |
| Conventional Free Air Thermal Current (Ith) | 60 kA |
| Dynamic Withstand Current | 2,5 Ith |
| Rated Operational Voltage (Ue) | < 720 V AC 50/60 Hz |
| Mounting Type | Yalıtımlı kilitleme vidası |
| Mounting Support | Busbar |
| Width | Dış: 98 mm; Dahili: 40 mm |
| Height | Dış: 129 mm; Dahili: 103 mm |
| Depth | Frame : 40 mm; Toplam : 75 mm |
| Product Weight | 0.576 kg |
| Rated Impulse Withstand Voltage (Uimp) | 3 kV |
| Insulation Class | Sınıf B |
| Sealing | Available |
| Standards | VDE 0414; IEC 61869-2 |
| Certifications | CE |
| IP Rating | IP20 |
| Relative Humidity | 0…95 % |
| Operating Ambient Temperature | -25…50 °C |
