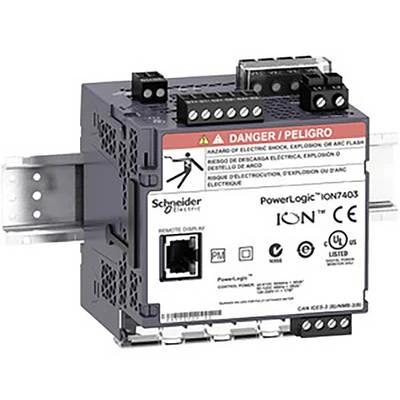

Schneider Electric METSEION7403 ION7400 Class S Certified DIN Rail Mount
- Brand: Schneider Electric
- SKU: METSEION7403
- MPN: METSEION7403
- Availability: Made to order
- Power Quality Analyzers
- Schneider Electric Power Quality Analyzers
- Selection guide: Power Quality Analyzers Selection Guide: Technical Criteria & Application Standards
- Schneider Electric METSEION7403 Teknik Veri Föyü (PDF)
Schneider Electric METSEION7403 ION7400 Class S Certified DIN Rail Mount.
| Series | PowerLogic |
|---|---|
| Product Type | Güç ölçer |
| Model Type | Standard |
| Device Application | Gelir faturası; Veri toplama; Güç izleme; WAGES ölçümü |
| Supply Voltage | 90…415 V AC 45…65 Hz +/- 10 %; 110…415 V DC +/- 10 % |
| Mains Frequency | 50 Hz; 60 Hz |
| Rated Current (Ir) | 1 A; 5 A; 10 A |
| Pole Arrangement | 1P+N; 3P; 3P+N |
| Power Consumption (VA) | 18 VA @ 415 V AC |
| Display Type | Ekransız |
| Sampling Rate | Döngü başına 256 örnek |
| Measuring Current | 50–10000 mA |
| Analog Input Type | Gerilim (impedance 5 MOhm); Akım (impedance 0,3 mOhm) |
| Measurement Voltage | 57…400 V AC 42…69 Hz faz ve nötr arasında; 100…690 V AC 42…69 Hz fazlar arasında |
| Frequency Range | 42–69 Hz |
| Number of Inputs | 3 dijital 30 V AC; 3 dijital 60 V DC |
| Measurement Accuracy | Akım +/- %0,1; Gerilim +/- %0,1; Aktif enerji +/- %0,2 |
| Number of Outputs | 1 darbe |
| Displayed Information | Gerilim; Akım; Frekans; Güç; Enerji tüketimi; Harmonik bozulma |
| Communication Port Support | Ethernet; Vidalı terminal bloğu: RS485; Mini B USB: USB |
| Communication Network Type | IPv6 (internet protokolü) |
| Memory Capacity | 512 MB |
| Communication Services | SMTP e-posta bildirimi; NTP süre senkronizasyonu; RSTP desteği; DHCP; PTP zaman senkronizasyonu |
| Mounting Type | Takılabilir |
| Mounting Support | DIN rayı |
| Standards | IEC 62052-11; IEC 61557-12; IEC 62053-22; IEC 62053-24; IEC 61326-1; IEEE 1588; IEC 62586 |
| Certifications | CE; CULus; N998 |
| Width | 90.5 mm |
| Depth | 90.8 mm |
| Height | 90.5 mm |
| Product Weight | 528 g |
| IP Rating | IP30 |
| Relative Humidity | 5…95 % |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -40…85 °C |
| Operating Altitude | 3000 m |
