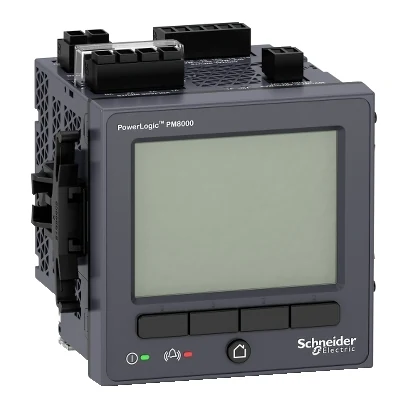

Schneider Electric METSEPM8210 PM8000 LVDC Panel Mount With Display
- Brand: Schneider Electric
- SKU: METSEPM8210
- MPN: METSEPM8210
- Availability: Made to order
- Panel-Mount Power Network Analyzers
- Schneider Electric Panel-Mount Power Network Analyzers
- Selection guide: Panel-Mount Power Network Analyzers Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric METSEPM8210 Teknik Veri Föyü (PDF)
Schneider Electric METSEPM8210 PM8000 LVDC Panel Mount With Display.
| Series | PowerLogic |
|---|---|
| Product Type | Güç ölçer |
| Model Type | Standard |
| Device Application | Güç izleme; WAGES ölçümü |
| Supply Voltage | 20…60 V DC +/- 10 % |
| Mains Frequency | 60 Hz; 50 Hz |
| Rated Current (Ir) | 10 A; 5 A; 1 A |
| Pole Arrangement | 1P+N; 3P; 3P+N |
| Power Consumption | 18 W |
| Display Type | Renkli TFT LCD |
| Display Resolution | 320 x 240 pixels QVGA |
| Sampling Rate | Döngü başına 256 örnek |
| Measuring Current | 50–10000 mA |
| Analog Input Type | Gerilim (impedance 5 MOhm); Akım (impedance 0,3 mOhm) |
| Measurement Voltage | 57…400 V AC 42…69 Hz faz ve nötr arasında; 100…690 V AC 42…69 Hz fazlar arasında |
| Frequency Range | 42–69 Hz |
| Number of Inputs | 3 dijital 30 V AC; 3 dijital 60 V DC |
| Measurement Accuracy | Akım +/- %0,1; Gerilim +/- %0,1; Aktif enerji +/- %0,2 |
| Number of Outputs | 1 darbe |
| Displayed Information | Gerilim; Akım; Frekans; Güç; Enerji tüketimi; Harmonik bozulma |
| Communication Port Support | Ethernet; Vidalı terminal bloğu: RS485 |
| Communication Network Type | IPv6 (internet protokolü) |
| Memory Capacity | 512 MB |
| Communication Services | NTP süre senkronizasyonu; SMTP e-posta bildirimi; DHCP; RSTP desteği; SNMP; PTP zaman senkronizasyonu |
| Mounting Type | Sıva altı monte |
| Mounting Support | Gövde |
| Standards | IEC 62052-11; IEC 61557-12; IEC 62053-22; IEC 62053-24; IEEE 1588; IEC 62586-2; IEC 61326-1 |
| Certifications | CE; CULus; N998 |
| Width | 96 mm |
| Depth | 77.5 mm |
| Height | 96 mm |
| Product Weight | 581 g |
| IP Rating | IP54 ön: (IEC 60529); IP30 gövde: (IEC 60529) |
| Relative Humidity | 5…95 % |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -40…85 °C |
| Operating Altitude | 3000 m |
