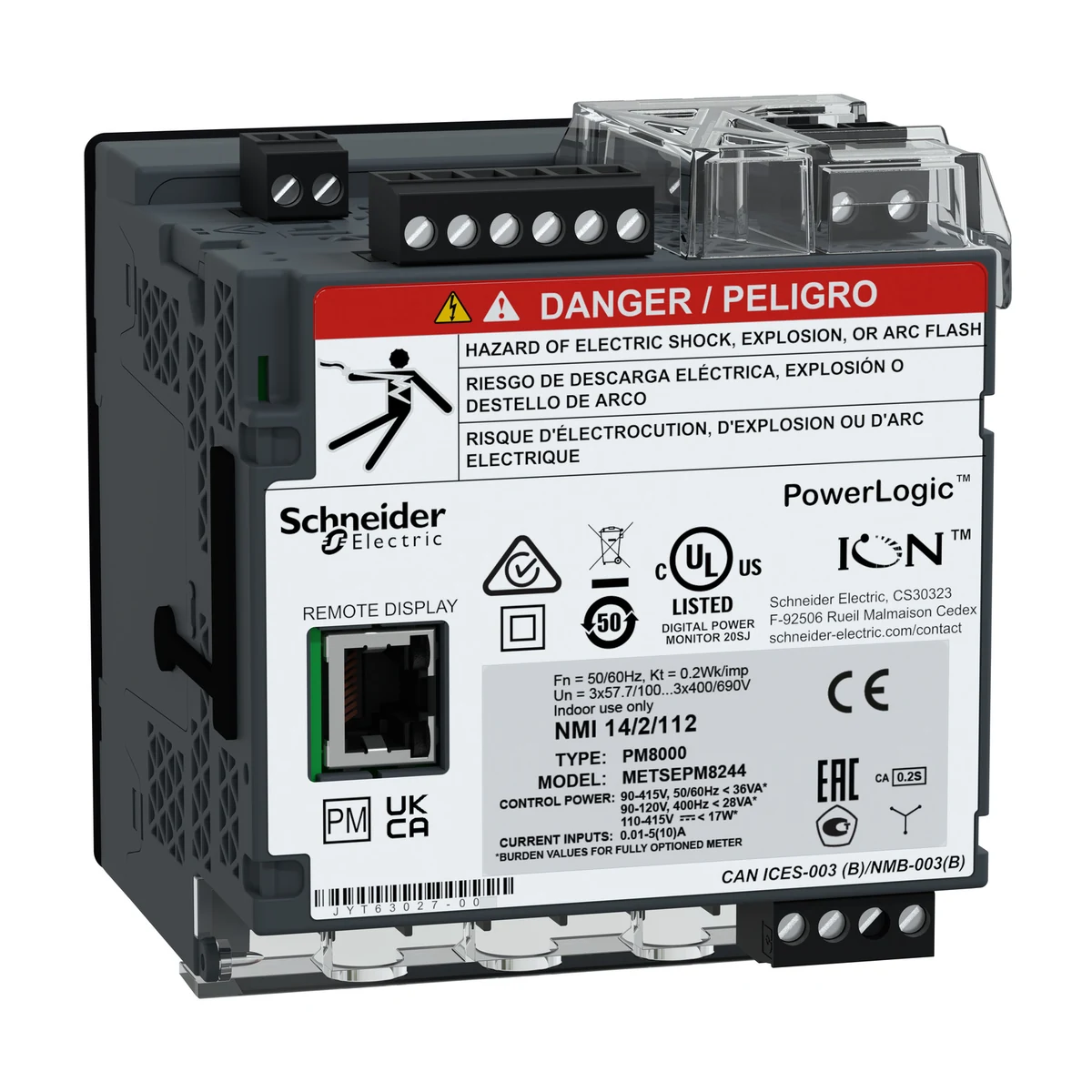

Schneider Electric METSEPM8244 PM8000 DIN Rail Mount Remote Monitoring
- Brand: Schneider Electric
- SKU: METSEPM8244
- MPN: METSEPM8244
- Availability: Made to order
- DIN Rail Power Network Analyzers
- Selection guide: DIN Rail Power Network Analyzers Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric METSEPM8244 Teknik Veri Föyü (PDF)
Schneider Electric METSEPM8244 PM8000 DIN Rail Mount Remote Monitoring.
| Series | PowerLogic |
|---|---|
| Product Type | Güç ölçer |
| Model Type | Standard |
| Device Application | WAGES ölçümü; Güç izleme |
| Supply Voltage | 90…415 V AC 45…65 Hz +/- 10 %; 110…415 V DC +/- 10 % |
| Mains Frequency | 50 Hz; 60 Hz |
| Rated Current (Ir) | 10 A; 5 A; 1 A |
| Pole Arrangement | 1P+N; 3P; 3P+N |
| Power Consumption (VA) | 16 VA @ 230 V AC |
| Display Type | Uzak LCD ekran |
| Display Resolution | 320 x 240 pixels QVGA |
| Sampling Rate | Döngü başına 256 örnek |
| Measuring Current | 50–10000 mA |
| Analog Input Type | Gerilim (impedance 5 MOhm); Akım (impedance 0,3 mOhm) |
| Measurement Voltage | 57…400 V AC 42…69 Hz faz ve nötr arasında; 100…690 V AC 42…69 Hz fazlar arasında |
| Frequency Range | 42–69 Hz |
| Number of Inputs | 3 dijital 30 V AC; 3 dijital 60 V DC |
| Measurement Accuracy | Akım +/- %0,1; Gerilim +/- %0,1; Aktif enerji +/- %0,2 |
| Number of Outputs | 1 darbe |
| Displayed Information | Gerilim; Akım; Frekans; Güç; Enerji tüketimi; Harmonik bozulma |
| Communication Port Support | Ethernet; Vidalı terminal bloğu: RS485 |
| Communication Network Type | IPv6 (internet protokolü) |
| Memory Capacity | 512 MB |
| Communication Services | SMTP e-posta bildirimi; RSTP desteği; NTP süre senkronizasyonu; DHCP; PTP zaman senkronizasyonu |
| Mounting Type | Sıva altı monte; Takılabilir |
| Mounting Support | DIN rayı metre cihazı; Gövde uzaktan ekran |
| Standards | IEC 62053-22; IEC 62053-24; IEC 62052-11; IEC 61557-12; IEEE 1588; IEC 62586-2; IEC 61326-1 |
| Certifications | CE; CULus; N998 |
| Width | 90.5 mm |
| Depth | 90.8 mm |
| Height | 90.5 mm |
| Product Weight | 528 g |
| IP Rating | IP30 |
| Relative Humidity | 5…95 % |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -40…85 °C |
| Operating Altitude | 3000 m |
