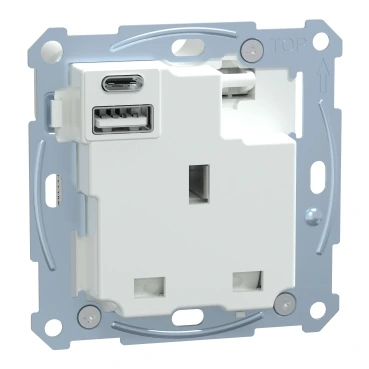

Schneider Electric MTN2125-0000 Merten, British-Type Socket Mechanism 13A with Type A+C USB
- Brand: Schneider Electric
- SKU: MTN2125-0000
- MPN: MTN2125-0000
- Price: 3669.58 TRY + VAT · incl. VAT 4403.50 TRY
- Availability: Made to order
- Grounded Wall Sockets
- Schneider Electric Grounded Wall Sockets
- Selection guide: What Is a Grounded Socket? Grounded Wall Socket Selection Guide
- Schneider Electric MTN2125-0000 Teknik Veri Föyü (PDF)
Schneider Electric MTN2125-0000 Merten, British-Type Socket Mechanism 13A with Type A+C USB. Technical specifications of this model: Series: Merten Mechanisms
| Series | Merten mekanizmalar |
|---|---|
| Aesthetic Range | Sistem tasarımı |
| Product Type | USB şarjlı anahtarlı priz |
| Device Presentation | Sabitleme çerçeveli mekanizma |
| Socket Earthing Information | Earthed |
| Color Tone | - (-) |
| Number of sockets | 1 |
| Device Mounting | Sıva altı 26 mm |
| Local Signalling | Yok: olmadan |
| Switch Function | 2 kutuplu |
| Rated Current | 13 A 250 V, AC, 50/60 Hz |
| Number of Sets | 1 takım |
| Connector Type | USB |
| Rated Operational Voltage (Ue) | 250 V AC 50…60 Hz |
| Maximum Power Consumption (W) | 0.3 W |
| Integrated Connection Type | 2 USB portu 15 V DC <= 3 A |
| Screw Head Shape | Çapraz |
| Electrical Connection | 3 0.2…2.5 mm² |
| Cable Stripping Length | 10–12 mm |
| Mounting Support | Gömme montaj (BS 1363-2) |
| Fixing Method | 4 sabitleme noktası M3.5 x 25 mm |
| Fixing Centres | 72 mm |
| Insulation Class | Çift yalıtım |
| Height | 71 mm |
| Width | 71 mm |
| Depth | 37 mm |
| Flush Mounting Depth | 26 mm |
| Product Weight | 0.105 kg |
| Operating Altitude | 0–2500 m |
| Operating Ambient Temperature | 0…35 °C |
| Storage Temperature | -20…70 °C |
| Relative Humidity | 10…90 % |
| Standards | BS 1363-2 |
| Certifications | EMC; BSI 1363 |
| IK Impact Protection | IK03 |
| IP Rating | IP20 |
| Environmental Conditions | Düşük gerilim yönergesi |
