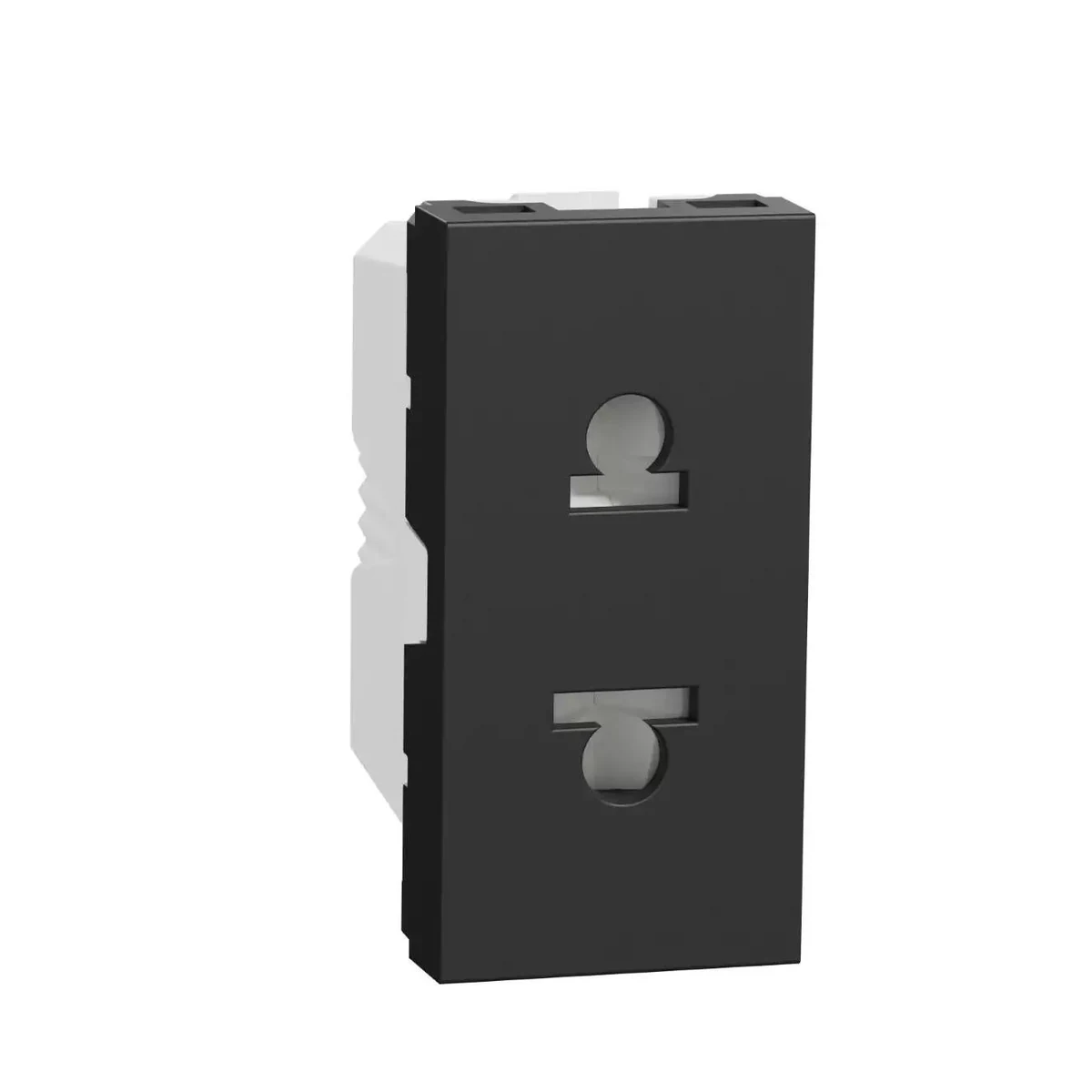

Schneider Electric NU302154 Yeni Unica, Euroamerican Socket 1 module, Anthracite
- Brand: Schneider Electric
- SKU: NU302154
- MPN: NU302154
- Price: 786.20 TRY + VAT · incl. VAT 943.44 TRY
- Availability: Made to order
- Grounded Wall Sockets
- Schneider Electric Grounded Wall Sockets
- Selection guide: What Is a Grounded Socket? Grounded Wall Socket Selection Guide
- Schneider Electric NU302154 Teknik Veri Föyü (PDF)
Schneider Electric NU302154 Yeni Unica, Euroamerican Socket 1 module, Anthracite. Technical specifications of this model: Series: Yeni Unica Color: Anthracite
| Color | Anthracite |
|---|---|
| Series | New Unica |
| Product Type | Socket |
| Device Presentation | Kapak plakalı mekanizma |
| Device Mounting | Flush-mounted |
| Number of sockets | 1 |
| Output Pole Configuration | 2P |
| Socket Standard | Avrupa Amerikan |
| Rated Current | 16 A |
| Device Application | Güç kaynağı |
| Cover Type | Sürgülü |
| Rated Operational Voltage (Ue) | 250 V |
| Current Type | AC |
| Mains Frequency | 50/60 Hz |
| Number of Modules | 1 modül |
| Fixing Method | Plug-in |
| Color Tone | Antrasit (RAL 7021) |
| Connection Terminals | Screw terminals |
| Cable Cross-Section | 0…4 mm² kablo(lar), 2 - kablo sertligi: esnek; 0…4 mm² - kablo sertligi: sert |
| Electrical Endurance | 10000 cycles, cos phi = 0,8 |
| Insulation Resistance | > 5 MOhm @ 500 V |
| Dielectric Strength | 2000 V |
| Material | PC: mekanizma kapağı; PC (polikarbonat) GF10 FR: muhafaza |
| Standards | IEC 60884-1 |
| Flush Mounting Depth | 24 mm |
| Depth | 35.5 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Product Weight | 0.0193 kg |
| Operating Ambient Temperature | -5…35 °C |
| Storage Temperature | -5…50 °C |
| IK Impact Protection | IK01 |
| IP Rating | IP21 D |
| Environmental Conditions | Beyazlatma; Petrol; UV dirençli; Yağ; Pencere temizleme sıvısı; Sıvı Sabun; Alkol; Aseton |
