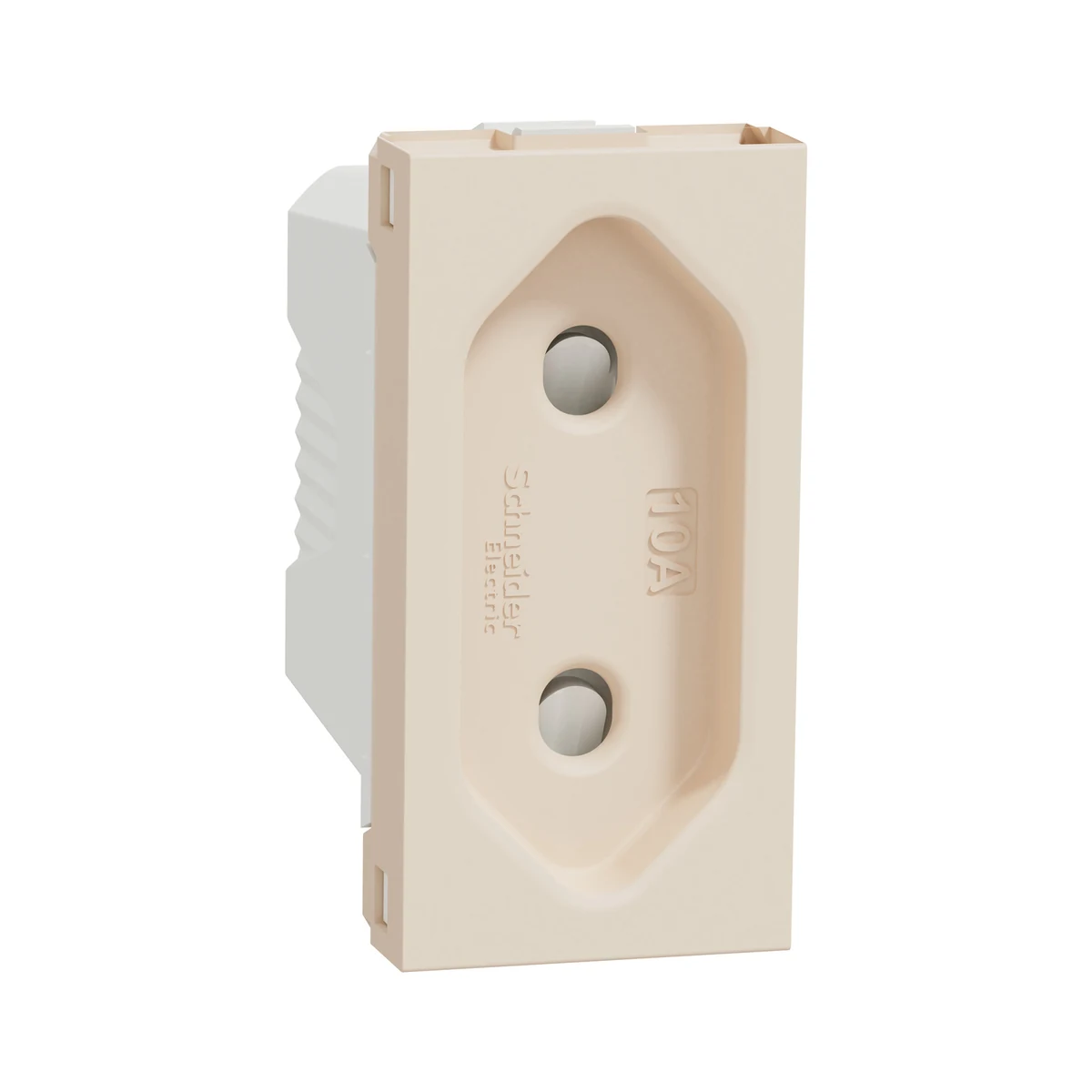

Schneider Electric NU303144 Yeni Unica, European Socket 1 module, Cream
- Brand: Schneider Electric
- SKU: NU303144
- MPN: NU303144
- Price: 571.80 TRY + VAT · incl. VAT 686.16 TRY
- Availability: Made to order
- Grounded Wall Sockets
- Schneider Electric Grounded Wall Sockets
- Selection guide: What Is a Grounded Socket? Grounded Wall Socket Selection Guide
- Schneider Electric NU303144 Teknik Veri Föyü (PDF)
Schneider Electric NU303144 Yeni Unica, European Socket 1 module, Cream. Technical specifications of this model: Series: Yeni Unica Color: Cream
| Color | Cream |
|---|---|
| Series | New Unica |
| Product Type | Socket |
| Device Presentation | Kapak plakalı mekanizma |
| Device Mounting | Flush-mounted |
| Number of sockets | 1 |
| Output Pole Configuration | 2P |
| Socket Standard | CEE 7/1 |
| Rated Current | 0,416666666666667 |
| Device Application | Güç kaynağı |
| Cover Type | Sürgülü |
| Rated Operational Voltage (Ue) | 250 V |
| Current Type | AC |
| Mains Frequency | 50/60 Hz |
| Number of Modules | 1 modül |
| Fixing Method | Plug-in |
| Color Tone | Bej (RAL 1013) |
| Connection Terminals | Screw terminals |
| Cable Cross-Section | 0…4 mm² kablo(lar), 2 - kablo sertligi: esnek; 0…4 mm² - kablo sertligi: sert |
| Electrical Endurance | 10000 cycles, cos phi = 0,8 |
| Insulation Resistance | > 5 MOhm @ 500 V |
| Dielectric Strength | 2000 V |
| Material | PC: mekanizma kapağı; PC (polikarbonat) GF10 FR: muhafaza |
| Standards | IEC 60884-1 |
| Certifications | EAC |
| Flush Mounting Depth | 27 mm |
| Depth | 37 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Product Weight | 0.018 kg |
| Operating Ambient Temperature | -5…35 °C |
| Storage Temperature | -5…50 °C |
| IK Impact Protection | IK01 |
| IP Rating | IP3x |
| Environmental Conditions | UV dirençli; Aseton; Pencere temizleme sıvısı; Yağ; Alkol; Sıvı Sabun; Beyazlatma; Petrol |
