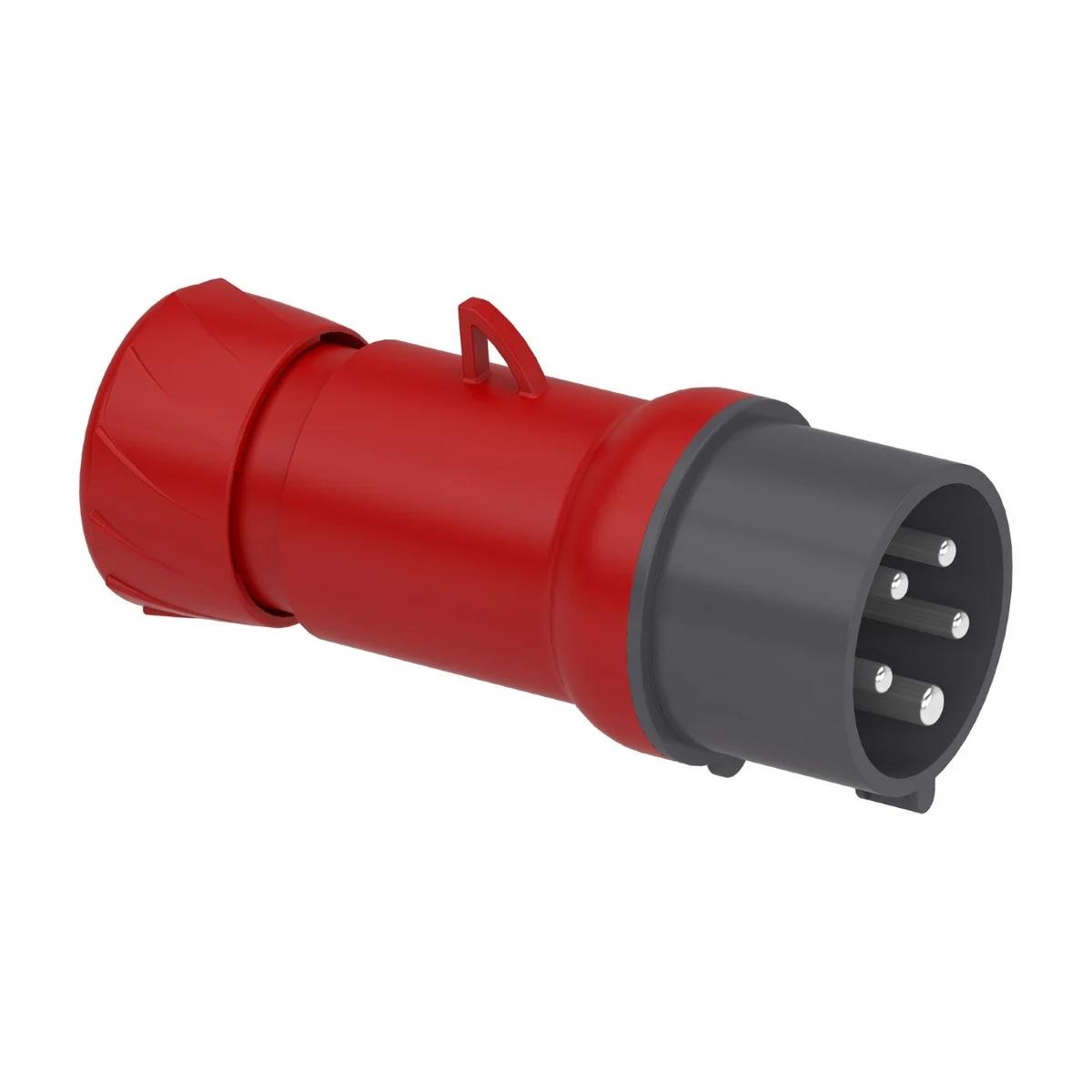

Schneider Electric PKE16M435 5x16A, Three-Phase, 3P+N+T, IP44, SCREW, Straight Plug
- Brand: Schneider Electric
- SKU: PKE16M435
- MPN: PKE16M435
- Price: 995.24 TRY + VAT · incl. VAT 1194.29 TRY
- Availability: In stock
- CEE Extension Plugs
- Schneider Electric CEE Extension Plugs
- Selection guide: CEE Industrial Extension Plugs Selection Guide
Schneider Electric PKE16M435 5x16A, Three-Phase, 3P+N+T, IP44, SCREW, Straight Plug. Technical specifications of this model: Series: Mureva Earth Lug Clockwise Position: 6 o'clock Plug, Socket Material: housing: self-extinguishing engineering polymer IP Rating: IP44 conforming to IEC 60529 Mains Type: AC Depth: 74 mm Operating Altitude: 2000 m Plug, Socket Category: low voltage Manufacturer Product Group: Mureva Box Type: Free-standing Rated Current: 16 A Cable outer diameter: 8-15 mm Color: gray (RAL 7035) Output Standard: industrial Fire Resistance: 850 °C, compliant with IEC 60695-2-11 Cable Cross-Section: 1-4 mm² Width: 74 mm Product Weight: 0.19 kg Pole arrangement: 3P + N + E Voltage Color: red Rated Operational Voltage: 380...415 V Contact Material: rings: brass Cable Entry: cable bushing, cable gland Mains Frequency: 50/60 Hz IK Protection Rating: IK08 conforming to EN 62262 Height: 142 mm Product Type: free plug Plug, Socket, Control Station Form: straight Relative Humidity: 50-50 % at 40-40 °C & 70-70 % at 30-30 °C & 90-90 % at 20-20 °C
| Series | Mureva |
|---|---|
| Earth Lug Clockwise Position | 6 saat |
| Plug, Socket Material | muhafaza: kendiliğinden sönen mühendislik polimeri |
| IP Rating | IP44 |
| Mains Type | AC |
| Depth | 74 mm |
| Operating Altitude | 2000 m |
| Plug, Socket Category | düşük gerilim |
| Manufacturer Product Group | Mureva |
| Box Type | Serbest |
| Rated Current | 16 A |
| Cable Outer Diameter | 8–15 mm |
| Color | Grey (RAL 7035) |
| Output Standard | endüstriyel |
| Fire Resistance | 850 °C 'e uygunIEC 60695-2-11 |
| Cable Cross-Section | 1–4 mm² |
| Width | 74 mm |
| Product Weight | 0.19 kg |
| Pole Arrangement | 3P+N+E |
| Voltage Color | Red |
| Rated Operational Voltage | 380–415 V |
| Contact Material | bilezikler: pirinç |
| Cable Entry | kablo makarası,kablo rakoru |
| Mains Frequency | 50/60 Hz |
| IK Protection Rating | IK08 conforming to EN 62262 |
| Height | 142 mm |
| Product Type | serbest fiş |
| Plug, Socket, Control Station Form | düz |
| Relative Humidity | 50-50 % -de 40-40 °C & 70-70 % -de 30-30 °C & 90-90 % -de 20-20 °C |
