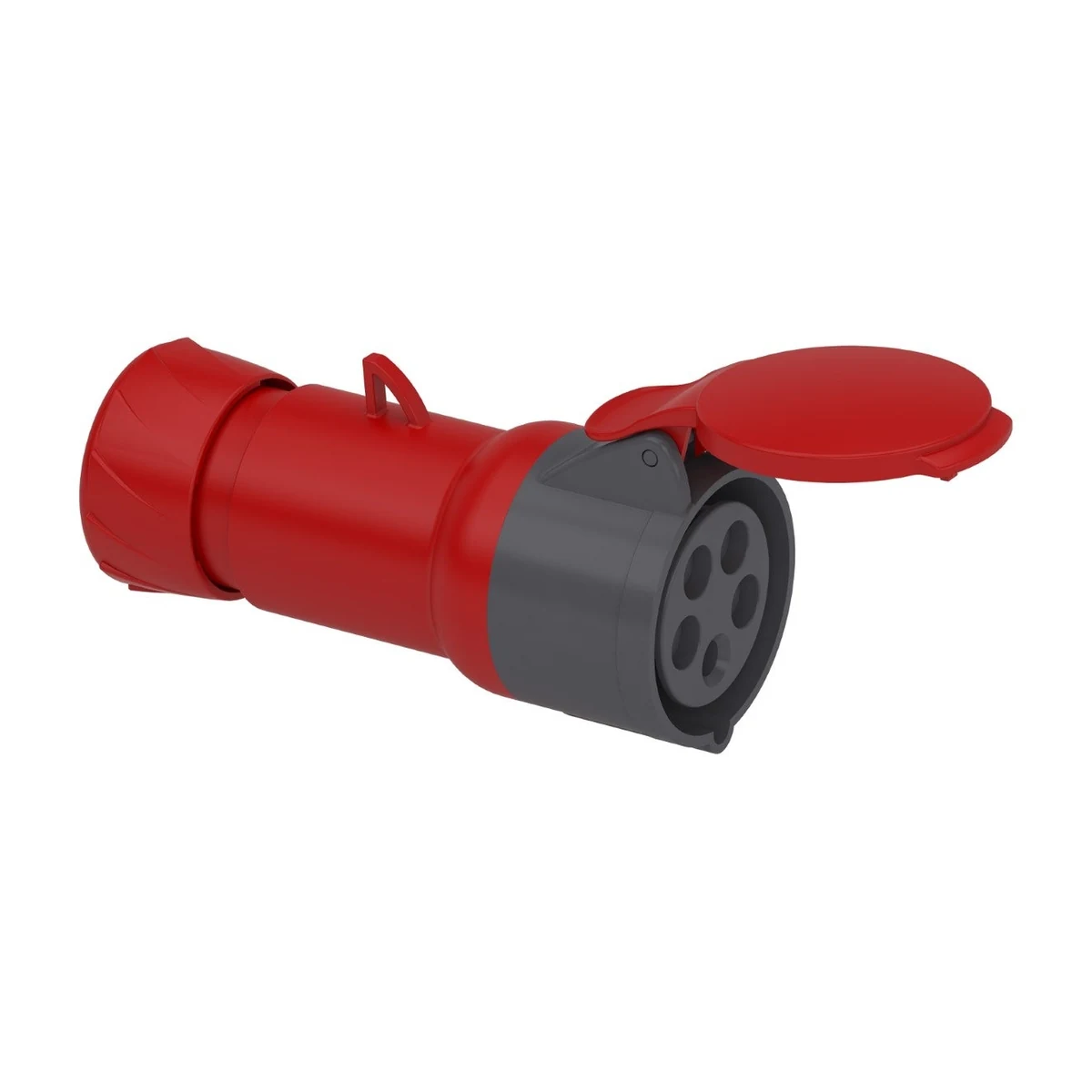

Schneider Electric PKF16M435 5x16A, Three-Phase, 3P+N+T, IP44, SCREW-TYPE, Extension Socket

Schneider Electric PKF16M435 5x16A, Three-Phase, 3P+N+T, IP44, SCREW-TYPE, Extension Socket

Schneider Electric PKF16M435 5x16A, Three-Phase, 3P+N+T, IP44, SCREW-TYPE, Extension Socket. Technical specifications of this model: Product Type: free socket Product Weight: 0.21 kg Fire Resistance: 850 °C, compliant with IEC 60695-2-1 Rated Current: 16 A IK Protection Rating: IK08 conforming to EN 62262 Cable Cross-Section: 1-4 mm² Depth: 153 mm Width: 97 mm Series: Mureva Box Type: Free-standing Output Standard: industrial Mains Frequency: 50/60 Hz Contact Material: rings: brass Plug, Socket Material: housing: self-extinguishing engineering polymer Plug, Socket, Control Station Form: straight Cable Entry: cable bushing, cable gland Rated Operational Voltage: 380...415 V IP Rating: IP44 conforming to IEC 60529 Height: 97 mm Relative Humidity: 50-50 % at 40-40 °C & 70-70 % at 30-30 °C & 90-90 % at 20-20 °C Cable outer diameter: 8-15 mm Pole arrangement: 3P + N + E Earth Lug Clockwise Position: 6 o'clock Mains Type: AC Voltage Color: red Plug, Socket Category: low voltage Color: gray (RAL 7035)

Product Typeserbest soket
Product Weight0.21 kg
Fire Resistance850 °C 'e uygunIEC 60695-2-1
Rated Current16 A
IK Protection RatingIK08 conforming to EN 62262
Cable Cross-Section1–4 mm²
Depth153 mm
Width97 mm
SeriesMureva
Box TypeSerbest
Output Standardendüstriyel
Mains Frequency50/60 Hz
Contact Materialbilezikler: pirinç
Plug, Socket Materialmuhafaza: kendiliğinden sönen mühendislik polimeri
Plug, Socket, Control Station Formdüz
Cable Entrykablo makarası,kablo rakoru
Rated Operational Voltage380–415 V
IP RatingIP44
Height97 mm
Relative Humidity50-50 % -de 40-40 °C & 70-70 % -de 30-30 °C & 90-90 % -de 20-20 °C
Cable Outer Diameter8–15 mm
Pole Arrangement3P+N+E
Earth Lug Clockwise Position6 saat
Mains TypeAC
Voltage ColorRed
Plug, Socket Categorydüşük gerilim
ColorGrey (RAL 7035)
