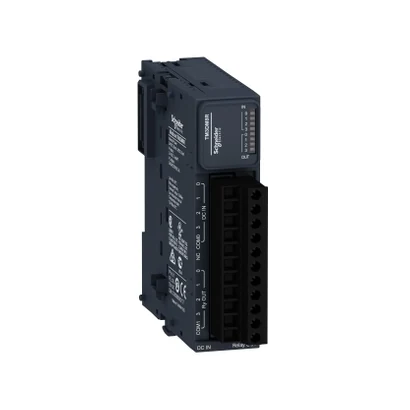

Schneider Electric TM3DM8R TM3 I/O Module, 4DI/4DO relay
- Brand: Schneider Electric
- SKU: TM3DM8R
- MPN: TM3DM8R
- Price: 11119.94 TRY + VAT · incl. VAT 13343.93 TRY
- Availability: Made to order
- Digital I/O Modules
- Schneider Electric Digital I/O Modules
- Selection guide: Digital I/O Modules Selection Guide: Technical Criteria & Application Standards
- Schneider Electric TM3DM8R Teknik Veri Föyü (PDF)
Schneider Electric TM3DM8R TM3 I/O Module, 4DI/4DO relay. Technical specifications of this model: Number of Digital Inputs: 4 Number of Digital Outputs: 4
| Number of Digital Outputs | 4 |
|---|---|
| Number of Digital Inputs | 4 |
| Series | Modicon TM3 |
| Product Type | Dijital G/Ç modülü |
| Compatible Series | Modicon M241; Modicon M251; Modicon M221; Modicon M262 |
| Device Application | Endüstriyel uygulama |
| Digital Input Logic | Blok veya kaynak (pozitif/negatif) |
| Minimum Switching Current | 10 mA 5 V DC |
| Mechanical Endurance | 20000000 cycles |
| Safety Reliability Data (MTTFd) | MTBF = 310 years 40 °C |
| Power Supply Type | Electronic powered by internal bus |
| Typical Current Consumption | 5 mA @ 5 V DC; 0 mA @ 24 V DC; 65 mA @ 5 V DC |
| Electrical Connection | 11 x 2,5 mm² çıkarılabilir vidalı terminal bloğu with aralık 5,08 mm adjustment girişler; ve çıkışlar için |
| Maximum Cable Distance Between Devices | Ekransız kablo: <30 m için düzenli giriş |
| Local Signalling | Kanal başına 1 LED (yeşil) for G/Ç durumu |
| Enclosure Colour | Grey |
| Mounting Support | Silindir şapka tipi TH35-15 ray (IEC 60715); Silindir şapka tipi TH35-7.5 ray (IEC 60715); sabitleme kitli plaka veya panel |
| Height | 90 mm |
| Width | 27.4 mm |
| Depth | 84.6 mm |
| Product Weight | 0.95 kg |
| IP Rating | IP20 |
| Conformity Markings | CE |
| Certifications | CE; CULus; UKCA; RCM; EAC; CULus HazLoc |
| Standards | IEC 61131-2 |
| Operating Ambient Temperature | -10…35 °C (dikey kurulum); -10…55 °C (yatay kurulum) |
| Storage Temperature | -25…70 °C |
| Relative Humidity | 10…95 % çalışma için yoğuşmasız; 10…95 % Storage için yoğuşmasız |
| Operating Altitude | 0–2000 m |
| Pollution Degree | 2 |
| Shock Resistance | 15 gn için 11 ms |
