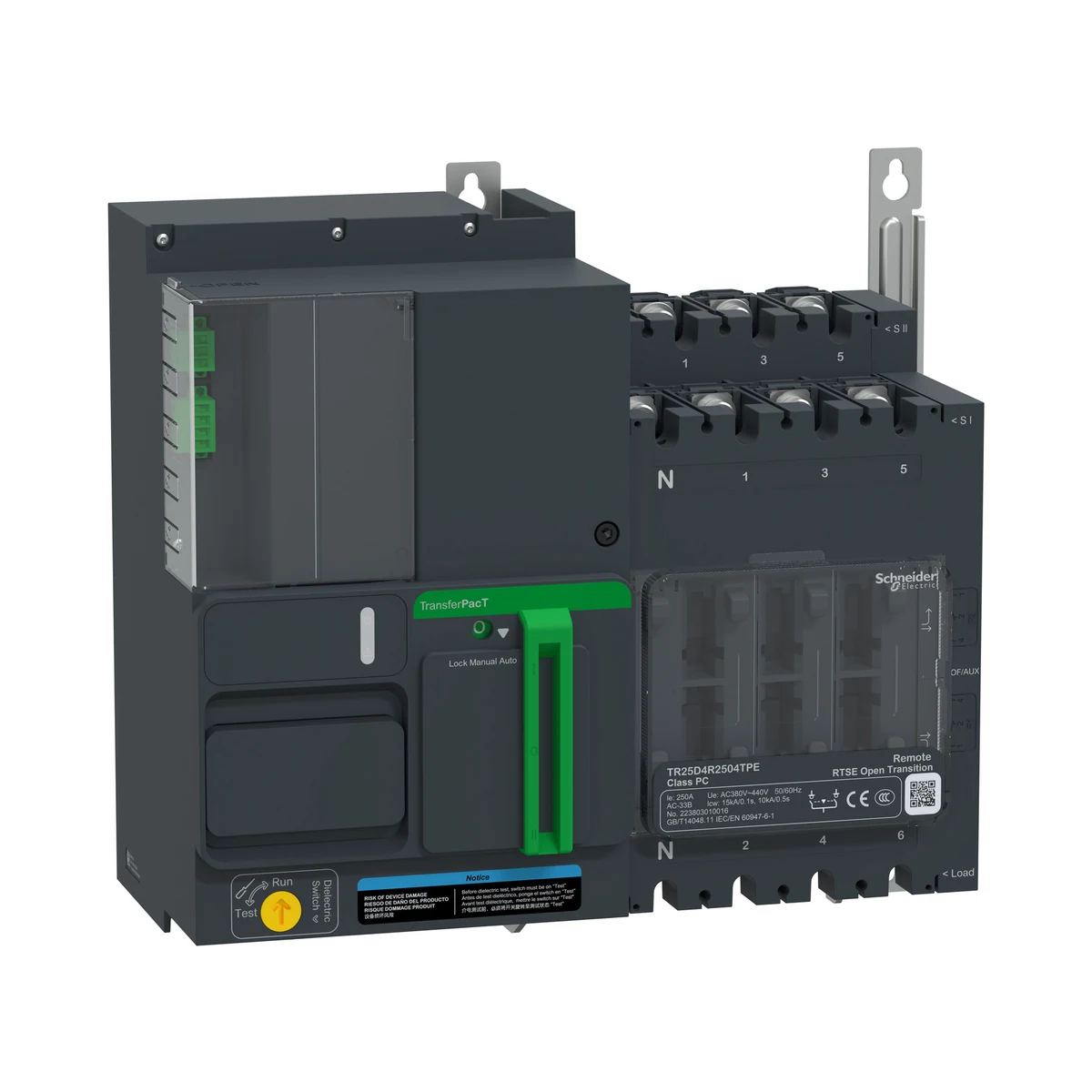

Schneider Electric TR25D4R2504TPE TR25.250A 4P Remote 400V
- Brand: Schneider Electric
- SKU: TR25D4R2504TPE
- MPN: TR25D4R2504TPE
- Price: 144837.22 TRY + VAT · incl. VAT 173804.66 TRY
- Availability: Made to order
- Transfer Switches
- Selection guide: Transfer Switches (ATS / Changeover) Selection Guide
- Schneider Electric TR25D4R2504TPE Teknik Veri Föyü (PDF)
Schneider Electric TR25D4R2504TPE TR25.250A 4P Remote 400V.
| Series | TransferPacT |
|---|---|
| Product Type | Uzaktan aktarım anahtarı |
| Device Application | Besleme kaynağını değiştirme |
| Pole Arrangement | 4P |
| Current Type | AC |
| Mains Frequency | 50/60 Hz |
| Bottom Connection | Screw |
| Mounting Type | Fixed |
| Top Connection | Screw |
| Contact Position Indication | Yes |
| Rated Short-Circuit Making Capacity (Icm) | 30 kA sadece load ayırıcı 400 V AC @ 50 Hz; 330 kA şebeke tarafı koruma devre kesicisi ile 400 V AC @ 50 Hz |
| Suitable for Isolation | Yes |
| Transfer Switch Class | PC |
| Number of Contact Positions | 3 |
| Signalling Contact Arrangement | 1 NA + 2 NK; 1 NK + 2 NA; 2 NA |
| Utilization Category | AC-33B |
| Rated Operational Voltage (Ue) | 400 V AC 50/60 Hz |
| Control Type | Uzaktan kumanda |
| Operating Mode | Manuel; Uzaktan |
| Display Type | Alarm göstergesi |
| Mounting Support | Plaka |
| Locking Option | KAPALI konumda kilit; SI / SII konumunda asma kilit |
| Rated Duty | Kesintisiz |
| Rated Insulation Voltage (Ui) | Şalter: 800 V; Kontrolör: 500 V |
| Rated Impulse Withstand Voltage (Uimp) | Şalter: 8 kV; Kontrolör: 6 kV |
| Rated Operational Current (Ie) | 250 A |
| Mechanical Interlock | Mekanik kilitleme ile |
| Mechanical Endurance | 10000 cycles |
| Connection Range | 35 mm |
| Local Signalling | LED göstergesi (yeşil) for güç AÇIK; LED göstergesi (kırmızı) for alarm |
| Rated Short-time Withstand Current Low Voltage (Icw) | 10 kA süresince 0,5 sn; 15 kA süresince 0.1 s |
| Height | 341 mm |
| Width | 370 mm |
| Depth | 185.8 mm |
| Product Weight | 13.3 kg |
| Conventional Free Air Thermal Current (Ith) | 250 A @ 60 °C |
| Standards | IEC60947-6-1 |
| Certifications | CE; CB; CCC |
| IP Rating | Ön yüz: IP40 running; Inside the enclosure: IP20 manual mode |
| Operating Ambient Temperature | -25…70 °C |
