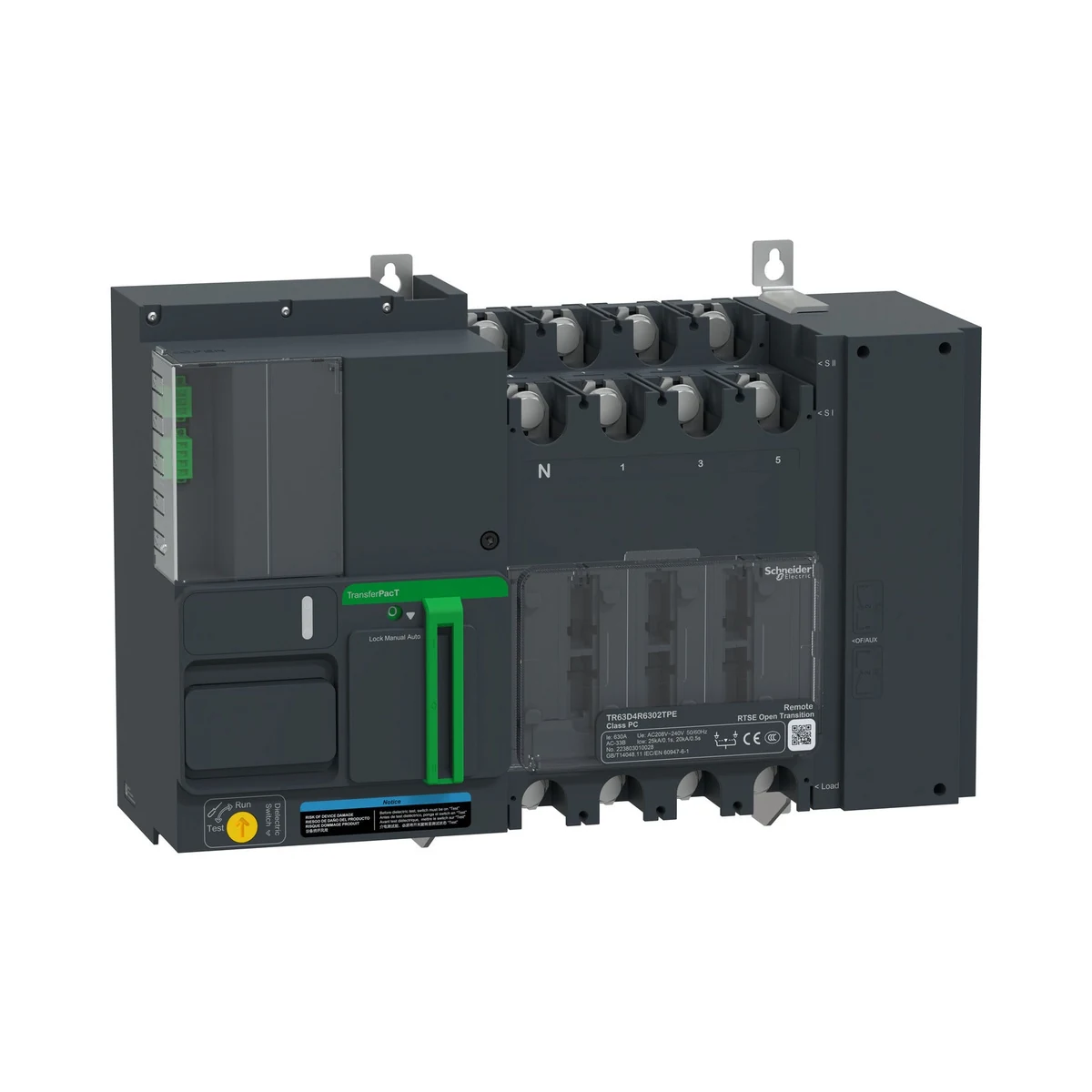

Schneider Electric TR63D4R6302TPE TR63.630A 4P Remote 230V
- Brand: Schneider Electric
- SKU: TR63D4R6302TPE
- MPN: TR63D4R6302TPE
- Price: 226068.38 TRY + VAT · incl. VAT 271282.06 TRY
- Availability: Made to order
- Transfer Switches
- Selection guide: Transfer Switches (ATS / Changeover) Selection Guide
Schneider Electric TR63D4R6302TPE TR63.630A 4P Remote 230V. Technical specifications of this model: Rated Short-Circuit Making Capacity (Icm): 40 kA for the switch-disconnector alone at 230 V AC 50 Hz / 330 kA with an upstream protective circuit breaker at 230 V AC 50 Hz Pollution Degree: 3 Signal Contact Arrangement: 1 NO + 2 NC1 NC + 2 NO2 NO Mounting Support: PLATE Manufacturer Certificate Declaration: CECBCCC Rated Operational Voltage: 230 V AC 50/60 Hz Depth: 186 mm Pole arrangement: 4P Top Connection: SCREWED Transfer Switch Class: PC Product Type: Remote transfer switch Local Indicator: LED indicator for power on (green); LED indicator for alarm (red) Product Weight: 22.8 kg Operating Mode: MANUALREMOTE Display Type: ALARM INDICATORREMOTE LCD DISPLAY Mechanical Interlock: With mechanical interlock Width: 467 mm Mounting Style: FIXED Bottom Connection: SCREWED Mains Frequency: 50/60 Hz Mains Type: AC Rated Insulation Voltage (Ui): Switch: 800 V; Controller: 500 V Rated Impulse Withstand Voltage (Uimp): Switch: 8 kV; Controller: 6 kV Control type: REMOTE CONTROL Storage Temperature: -40…85 °C Series: TRANSFERPACT Conventional Free-Air Thermal Current (Ith): 630 A at 60 °C IP Rating: Front face: IP40 while operating; Inside enclosure: IP20 in manual mode Manufacturer Standard Declaration: IEC 60947-6-1 Utilization category: AC-33BAC-33A Rated Short-Time Withstand Current (Icw): 20 KA DURING 0.5 S25 KA DURING 0.1 S Rated Duty Cycle: UNINTERRUPTED Locking Options: PADLOCK IN OFF POSITIONPADLOCK IN SI / SII POSITION Isolation Suitability: Yes Device Application: Supply source changeover Rated Operational Current (Ie): 630 A Number of Contact Positions: 3 Height: 341 mm Mechanical Endurance: 10000 CYCLES Contact Position Indicator: Yes Operating Ambient Temperature: -25…70 °C Connection Range: 35 mm
| Conventional Free-Air Thermal Current (Ith) | 630 A AT 60 °C |
|---|---|
| Bottom Connection | SCREWED |
| Rated Operational Current (Ie) | 630 A |
| Rated Operational Voltage | 230 V AC 50/60 Hz |
| Rated Duty Cycle | UNINTERRUPTED |
| Rated Impulse Withstand Voltage (Uimp) | Şalter: 8 kV; Kontrolör: 6 kV |
| Rated Short-Circuit Making Capacity (Icm) | 40 kA yalnız şalter-ayırıcı 230 V AC 50 Hz'de / 330 kA üst tarafta koruma devre kesicisi ile 230 V AC 50 Hz'de |
| Rated Short-Time Withstand Current (Icw) | 20 KA DURING 0.5 S25 KA DURING 0.1 S |
| Rated Insulation Voltage (Ui) | Şalter: 800 V; Kontrolör: 500 V |
| Isolation Suitability | Available |
| Connection Range | 35 mm |
| Operating Mode | MANUALREMOTE |
| Operating Ambient Temperature | -25…70 °C |
| Device Application | Besleme kaynağı değiştirme |
| Storage Temperature | -40…85 °C |
| Depth | 186 mm |
| Display Type | ALARM INDICATORREMOTE LCD DISPLAY |
| Width | 467 mm |
| IP Rating | Ön yüz: IP40 çalışıyor; Muhafaza içi: IP20 manuel mod |
| Locking Options | PADLOCK IN OFF POSITIONPADLOCK IN SI / SII POSITION |
| Pollution Degree | 3 |
| Contact Position Indicator | Available |
| Number of Contact Positions | 3 |
| Control Type | REMOTE CONTROL |
| Utilization Category | AC-33BAC-33A |
| Pole Arrangement | 4P |
| Mechanical Endurance | 10000 cycles |
| Mechanical Interlock | Mekanik kilitleme ile |
| Mounting Style | FIXED |
| Mounting Support | PLATE |
| Mains Frequency | 50/60 Hz |
| Mains Type | AC |
| Series | TransferPacT |
| Signal Contact Arrangement | 1 NO + 2 NC1 NC + 2 NO2 NO |
| Transfer Switch Class | PC |
| Manufacturer Certificate Declaration | CECBCCC |
| Manufacturer Standard Declaration | IEC 60947-6-1 |
| Product Weight | 22.8 kg |
| Product Type | Uzaktan transfer şalteri |
| Top Connection | SCREWED |
