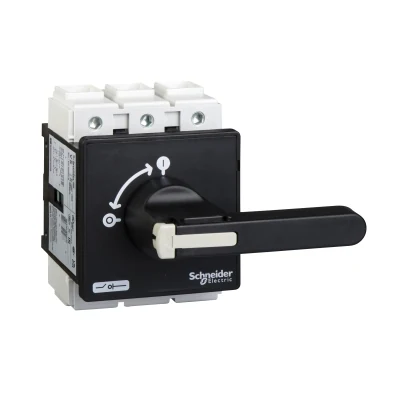

Schneider Electric VBF5 TeSys VARIO Load Break Switch 125A
- Brand: Schneider Electric
- SKU: VBF5
- MPN: VBF5
- Price: 10683.48 TRY + VAT · incl. VAT 12820.18 TRY
- Availability: In stock
- Load Break Switches
- Schneider Electric Load Break Switches
- Selection guide: Load Break Switches Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric VBF5 Teknik Veri Föyü (PDF)
Schneider Electric VBF5 TeSys VARIO Load Break Switch 125A. Technical specifications of this model: Series: TeSys VARIO
| Series | TeSys VARIO |
|---|---|
| Product Type | Bağlantı kesici |
| Device Composition | Anahtar; Kol |
| Mounting Support | Kol: kapı; Anahtar: kapı |
| Mounting Method | 4 vidayla için kol |
| Performance Level | Yüksek performans |
| Pole Arrangement | 3P |
| Contact Arrangement | 3NO |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Rated Operational Current (Ie) | 68,5 A AC-23 Ue: 400 V |
| Conventional Free Air Thermal Current (Ith) | 125 A |
| Conventional Enclosed Thermal Current (Ithe) | 100 A |
| Rated Making Capacity (Irms) | 1250 A @ 400 V AC-21A; 1250 A @ 400 V AC-22A; 1250 A @ 400 V AC-23A |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA @ 400 V - ilgili sigorta 125 A AM; 10 kA @ 400 V - ilgili sigorta 125 A GG |
| Rated Short-Circuit Making Capacity (Icm) | 2,8 kA @ 400 V Itepe'de |
| Rated Short-time Withstand Current Low Voltage (Icw) | 1500 A @ 400 V 1 s |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Suitable for Isolation | Yes |
| Current Type | AC; DC |
| Intermittent Duty Class | 30 |
| Control Type | Döner kol |
| Rotary Handle Mounting Style | Doğrudan |
| Handle Color | Black |
| Handle Front Plate Colour | Yellow |
| Rotary Handle Padlocking | 1 ila 3 asmalı kilit 4…8 mm |
| Position Marking | 0–1 |
| Mechanical Endurance | 30000 cycles |
| Electrical Endurance | 30000 cycles AC-21; 30000 cycles DC-1…5 |
| Tightening Torque | Güç devresi: 22,6 N.m - üzerinde vida kelepçesi terminalleri |
| Base Size | 90 x 90 mm |
| Height | 125 mm |
| Width | 90 mm |
| Product Weight | 1.2 kg |
| Standards | IEC 60947-3 |
| Certifications | CCC; UL; CSA; GL; UKCA |
| IP Rating | IP20 (IEC 60529); IP65 |
| Mechanical Durability | Titreşimler 10…150 Hz (1 gn) (IEC 60068-2-6); Şoklar 11 ms (30 Gn) (IEC 60068-2-27) |
| Operating Ambient Temperature | -20…50 °C |
| Fire Resistance | 960 °C (IEC 60695-2-1) |
