Schneider Electric VCDN12 TeSys MiniVARIO Emergency Stop Load Break Switch 12A
- Brand: Schneider Electric
- SKU: VCDN12
- MPN: VCDN12
- Price: 1940.43 TRY + VAT · incl. VAT 2328.52 TRY
- Availability: Made to order
- Load Break Switches
- Schneider Electric Load Break Switches
- Selection guide: Load Break Switches Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric VCDN12 Teknik Veri Föyü (PDF)

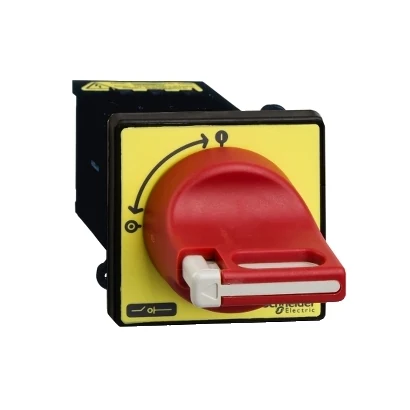

Schneider Electric VCDN12 TeSys MiniVARIO Emergency Stop Load Break Switch 12A.
| Series | TeSys |
|---|---|
| Product Type | Acil durdurma load ayırıcısı |
| Performance Level | Standard |
| Pole Arrangement | 3P |
| Contact Arrangement | 3NO |
| Current Type | AC; DC |
| Control Type | Döner kol |
| Rotary Handle Mounting Style | Doğrudan |
| Handle Color | Red |
| Handle Front Plate Colour | Yellow |
| Conformity Markings | 0–1 |
| Mounting Support | Kol: kapı; Anahtar: kapı |
| Fixing Method | Delikile 22,5 mm için kol |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Conventional Free Air Thermal Current (Ith) | 12 A |
| Conventional Enclosed Thermal Current (Ithe) | 10 A |
| Rated Operational Current (Ie) | 8,1 A (AC-23) @ 400 V |
| Intermittent Duty Class | 30 |
| Rated Short-Circuit Making Capacity (Icm) | 0,5 kA @ 400 V Itepe'de |
| Rated Short-time Withstand Current Low Voltage (Icw) | 140 A @ 400 V 1 s |
| Device Arrangement | Kol; Anahtar |
| Mechanical Endurance | 50000 cycles |
| Electrical Endurance | 30000 cycles DC-1…5; 50000 cycles AC-21 |
| Suitable for Isolation | Yes |
| Tightening Torque | Güç devresi: 0,7 N.m - üzerinde vida kelepçesi terminalleri |
| Height | 60 mm |
| Width | 60 mm |
| Product Weight | 0.177 kg |
| Standards | IEC 60947-3 |
| Certifications | GL; CCC; UL; CSA; UKCA |
| IP Rating | IP65 |
| Mechanical Durability | Titreşimler 10…150 Hz (5 gn) (IEC 60068-2-6); Şoklar 11 ms (15 gn) (IEC 60068-2-27) |
| Operating Ambient Temperature | -20…50 °C |
| Fire Resistance | 960 °C (IEC 60695-2-1) |
