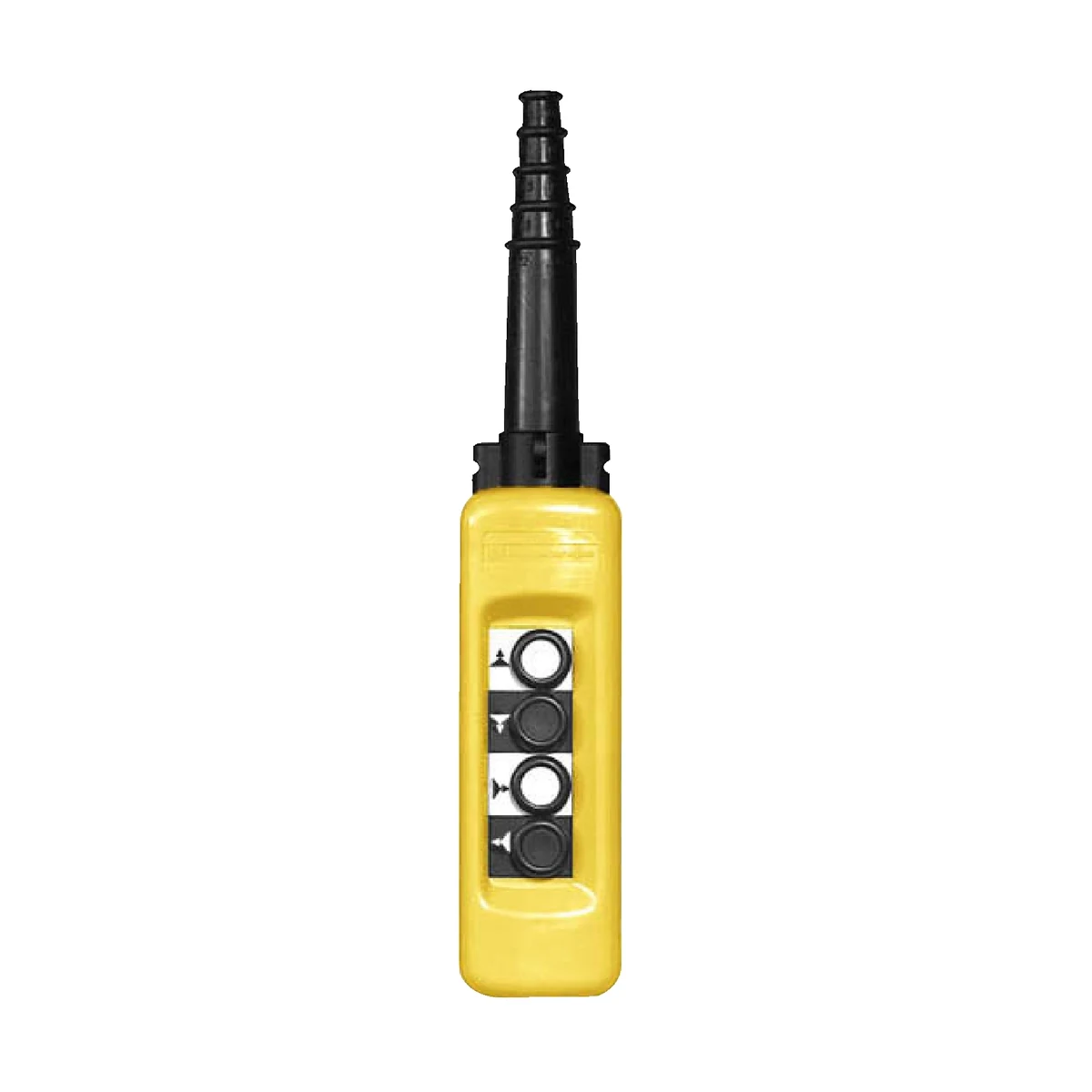

Schneider Electric XACA491 PUSHBUTTON STATION (DBL SPEED)
- Brand: Schneider Electric
- SKU: XACA491
- MPN: XACA491
- Price: 10285.95 TRY + VAT · incl. VAT 12343.14 TRY
- Availability: In stock
- Crane Control Boxes
- Selection guide: Crane Control Boxes Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XACA491 Teknik Veri Föyü (PDF)
Schneider Electric XACA491 PUSHBUTTON STATION (DBL SPEED).
| Series | Harmony XAC |
|---|---|
| Product Type | Asılı kontrol istasyonu |
| Housing Material | Polipropilen |
| Electrical Circuit Type | Kontrol devresi |
| Enclosure Construction | Tamamen kullanıma hazır |
| Control Station Application | 2 hızlı kaldırma motorunun kontrolü |
| Control Station Arrangement | 4 basmalı düğme |
| Compatible Products | XENG1191 her bir yön için |
| Mechanical Interlock | Çiftler arasında mekanik kilitleme ile |
| Connection Terminals | Vida kelepçesi terminalleri, 1 x 0,5…1 x 2,5 mm² kablo uçsuz; Vida kelepçesi terminalleri, 1 x 0,5…2 x 1,5 mm² Kablo uçlu |
| Standards | UL 508; IEC 60204-32; IEC 60947-5-1; CSA C22.2 No 14 |
| Certifications | GOST; CCC |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -40…70 °C |
| Vibration Resistance | 15 gn (f= 10…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 100 gn (IEC 60068-2-27) |
| IP Rating | IP65 |
| IK Impact Protection | IK08 (IEC 62262) |
| Mechanical Endurance | 1000000 cycles |
| Cable Entry | Adımlı girişli kauçuk bilezik 8…26 mm |
| Conventional Enclosed Thermal Current (Ithe) | 10 A |
| Rated Insulation Voltage (Ui) | 600 V (kirlilik derecesi 3) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Contact Operation Type | Yavaş kesen; Kademeli |
| Maximum Resistance Between Terminals | 25 MOhm |
| Operating Force | 18 N basmalı düğme |
| Short-Circuit Protection | 10 A sigorta koruma tarafindan kartuş sigorta tip gG |
| Terminal Designation (ISO) | (21-22)NC; (33-34)NO_CL; (13-14)NO |
| Product Weight | 0.625 kg |
