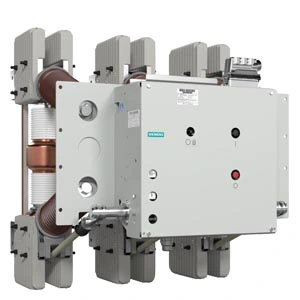

Siemens 3AH4306-6TE44-4ED2 Vacuum Circuit Breaker Operational Voltage 110VDC 2500 A
- Brand: Siemens
- SKU: 3AH4306-6TE44-4ED2
- MPN: 3AH4306-6TE44-4ED2
- Price: 2900191.55 TRY + VAT · incl. VAT 3480229.86 TRY
- Availability: Made to order
- Medium Voltage Circuit Breakers
- Selection guide: Medium Voltage Circuit Breakers Selection Guide: Technical Criteria and Engineering Practice
Siemens 3AH4306-6TE44-4ED2 Vacuum Circuit Breaker Operational Voltage 110VDC 2500 A. Rated short-circuit current: 40 kA Rated Voltage: 36 kV Product function and configuration: Operational Voltage 110VDC Rated Current: 2500 A Manufacturer type: 3AH4 Manufacturer declared standards: IEC 62271-100 Circuit breaker class: E2/M2/C2 Auxiliary Contact Arrangement: 12 NO + 12 NC Plug and socket connection: 64 pin Locking: Mechanical Frequency: 50 Hz Distance between poles: 350 mm Mechanical operating life: 120,000 open-close operations with special maintenance after the first 10,000 and every 30,000 operations Opening coil count: 2 Closing coil count: 1 Undervoltage coil count: 1
| Rated Current | 2500 A |
|---|---|
| Rated Voltage | 36 kV |
| Rated short-circuit current | 40 kA |
| Model | 3AH4306-6TE44-4ED2 |
| Manufacturer type | 3AH4 |
| Product Type | Vakum Kesici |
| Product function and configuration | İşletme Gerilimi 110VDC |
| Manufacturer declared standards | IEC 62271-100 |
| Circuit breaker class | E2/M2/C2 |
| Auxiliary contact configuration | 12 NO + 12 NC |
| Plug and socket connection | 64 pin |
| Locking | Mekanik |
| Frequency | 50 Hz |
| Distance between poles | 350 mm |
| Mechanical operating life | İlk 10.000 ve her 30.000 işlem sonrası özel bakımla 120.000 açma-kapama |
| Opening coil count | 2 |
| Closing coil count | 1 |
| Undervoltage coil count | 1 |
