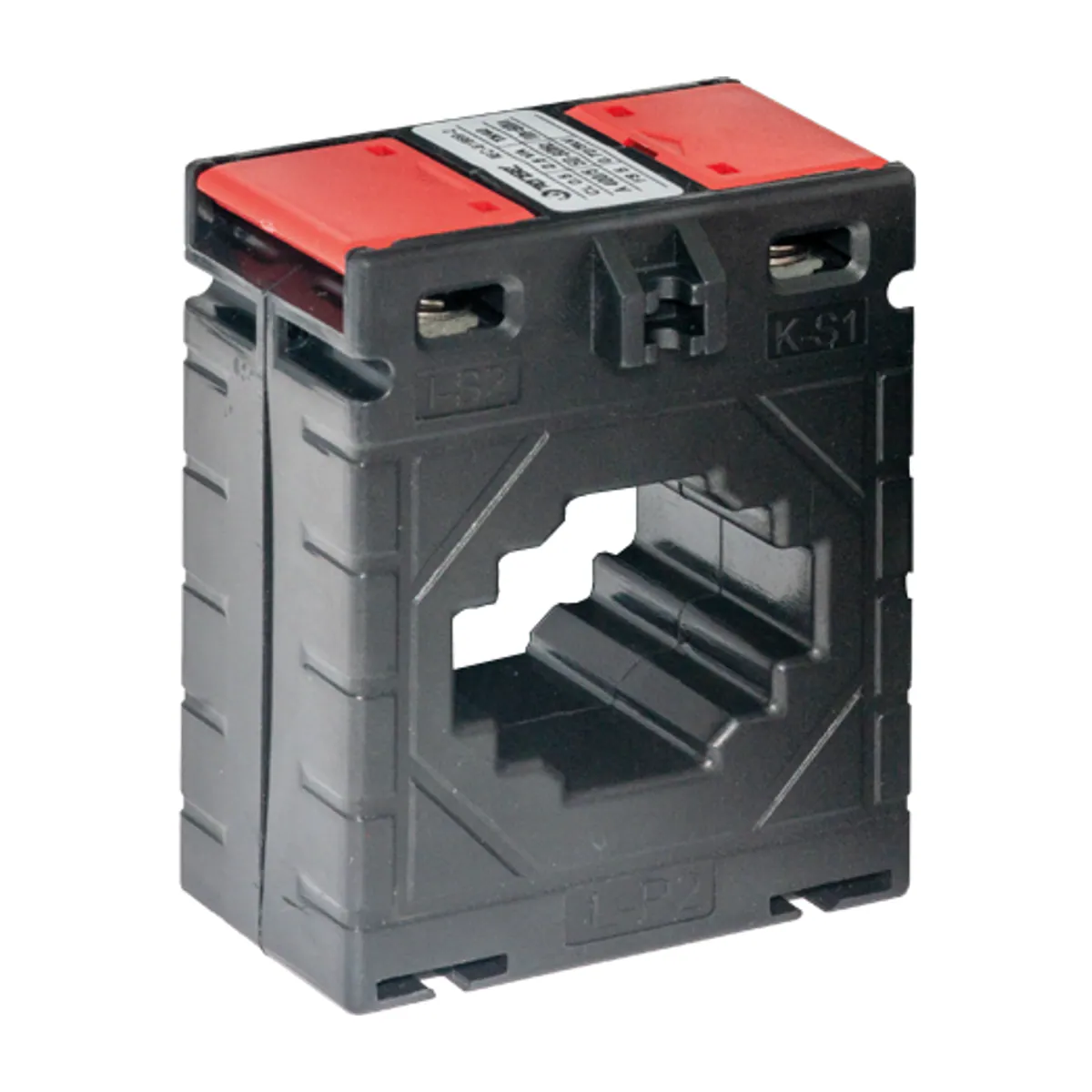

Tense AT-250 Low Voltage Current Transformer, 250/5, 30 x 10 mm

Tense AT-250 Low Voltage Current Transformer, 250/5, 30 x 10 mm

Tense AT-250, low voltage current transformer. Busbar Size: 30 x 10 mm; Transformation Ratio: 250/5; Accuracy Class: 0.5; Output Power: 5 VA; Type: Unsealed, with hole. Current transformers are designed to scale the primary circuit current down within the transformation ratio and pass it to the secondary circuit components, and to isolate the connected measuring and protection devices from the high-voltage system. Key Features: Primary Current: 250A.

Busbar Size30 × 10 mm
Transformation Ratio250/5
Accuracy Class0,5
Output Power5 VA
TypeMühürsüz, delikli
Primary Current250 A
Secondary Current5 A
Key FeaturesPrimer Akım : 250A
