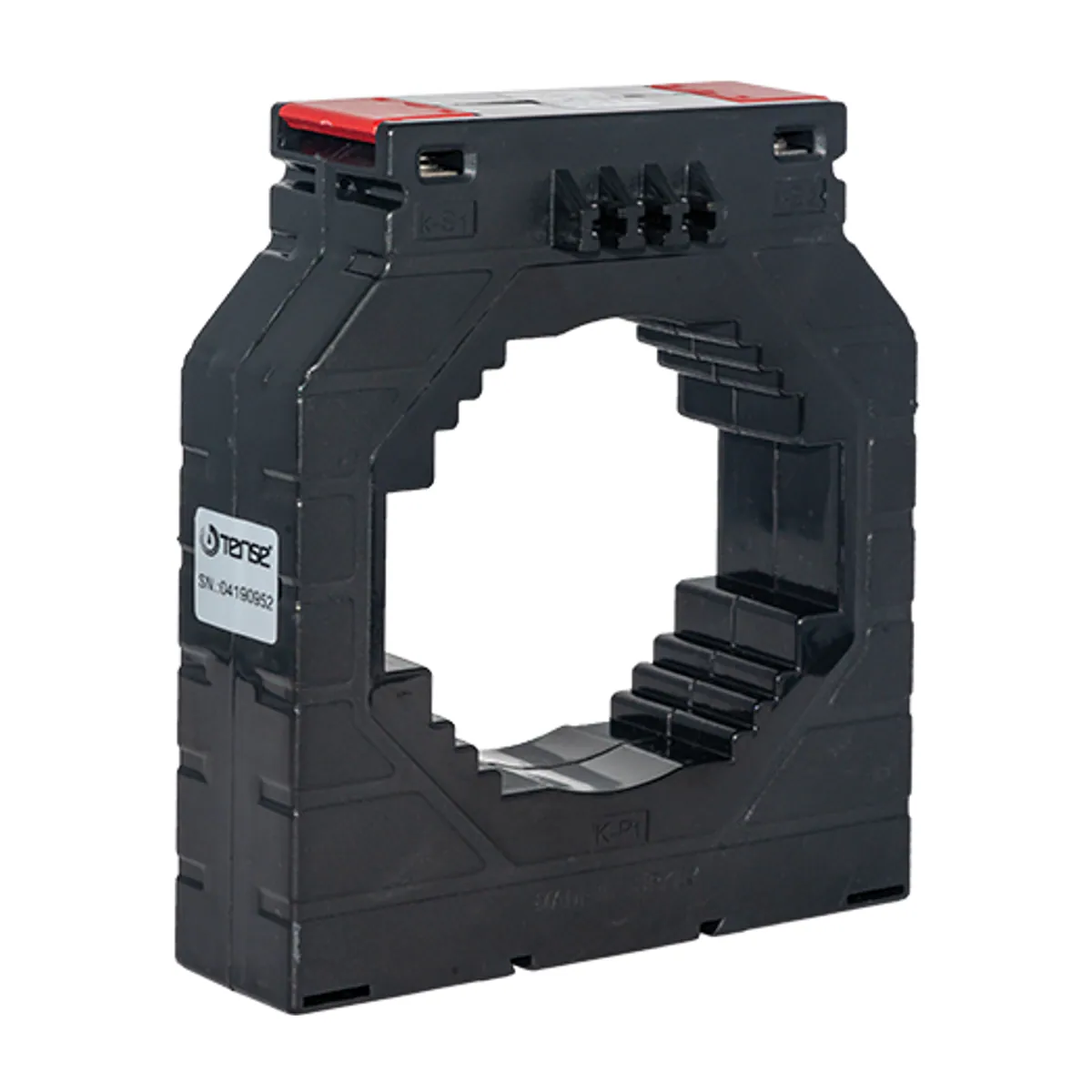

Tense AT-2500 Low Voltage Current Transformer, 2500/5, 100 x 10 mm

Tense AT-2500 Low Voltage Current Transformer, 2500/5, 100 x 10 mm

Tense AT-2500, low voltage current transformer. Busbar Size: 100 x 10 mm; Transformation Ratio: 2500/5; Accuracy Class: 0.5; Output Power: 40 VA; Type: Unsealed, with hole. Current transformers are designed to scale the primary circuit current down within the transformation ratio and pass it to the secondary circuit components, and to isolate the connected measuring and protection devices from the high-voltage system. Key Features: Primary Current: 2500A.

Busbar Size100 × 10 mm
Transformation Ratio2500/5
Accuracy Class0,5
Output Power40 VA
TypeMühürsüz, delikli
Primary Current2500 A
Secondary Current5 A
Key FeaturesPrimer Akım : 2500A
