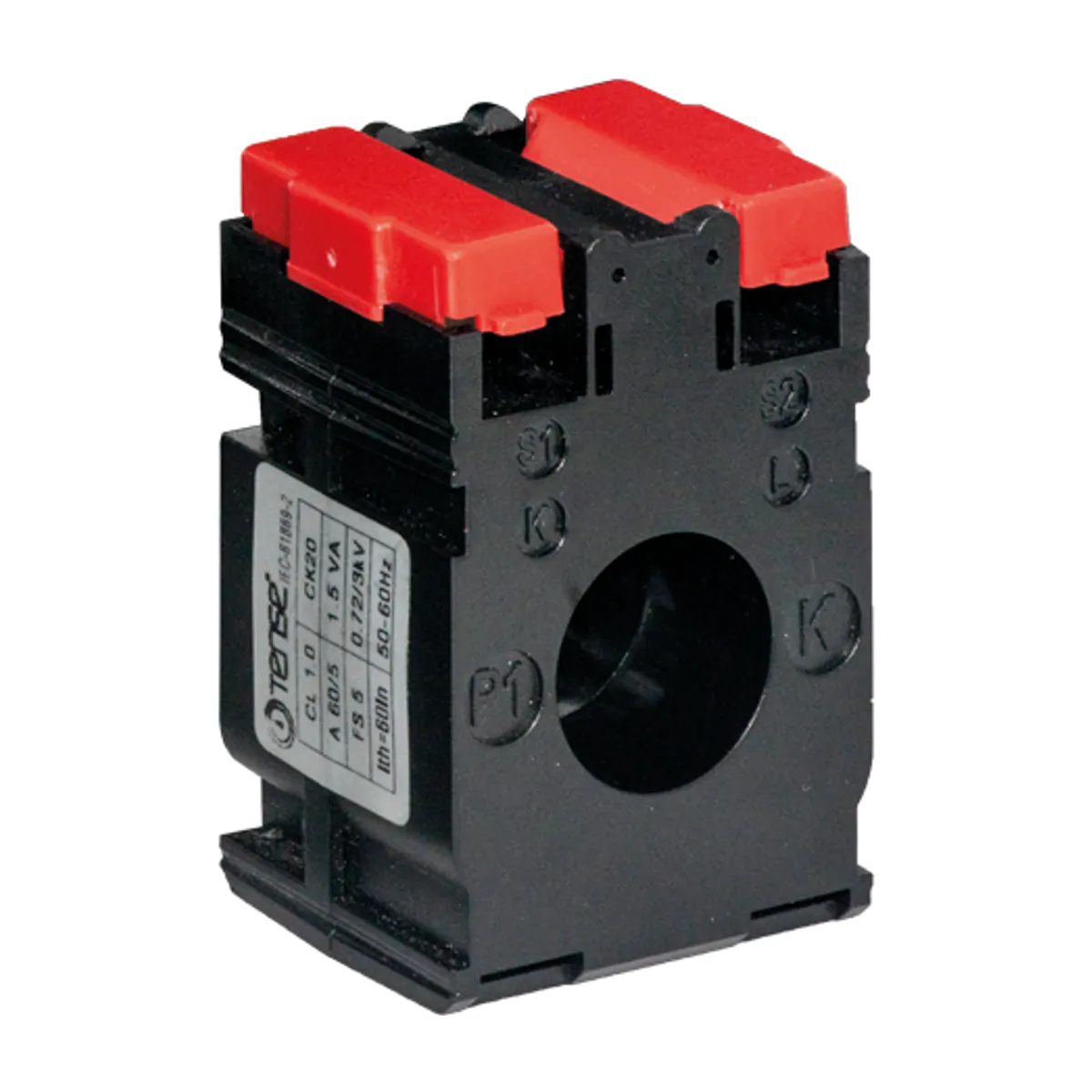

Tense ATM-75 Low Voltage Current Transformer, 75/5, ø 20mm
- Brand: Tense
- SKU: ATM-75
- MPN: ATM-75
- Price: 350.06 TRY + VAT · incl. VAT 420.07 TRY
- Availability: In stock
- Current Transformers
- Tense Current Transformers
- Selection guide: Current Transformers Selection Guide
Tense ATM-75, low voltage current transformer. Busbar Size: ø 20mm; Transformation Ratio: 75/5; Accuracy Class: 1; Output Power: 1.5 VA; Type: Unsealed, with hole. Current transformers are designed to scale the primary circuit current down within the transformation ratio and pass it to the secondary circuit components, and to isolate the connected measuring and protection devices from the high-voltage system. Key Features: Primary Current: 75A.
| Busbar Size | ø 20mm |
|---|---|
| Transformation Ratio | 75/5 |
| Accuracy Class | 1 |
| Output Power | 1.5 VA |
| Type | Mühürsüz, delikli |
| Primary Current | 75 A |
| Secondary Current | 5 A |
| Key Features | Primer Akım : 75A |
