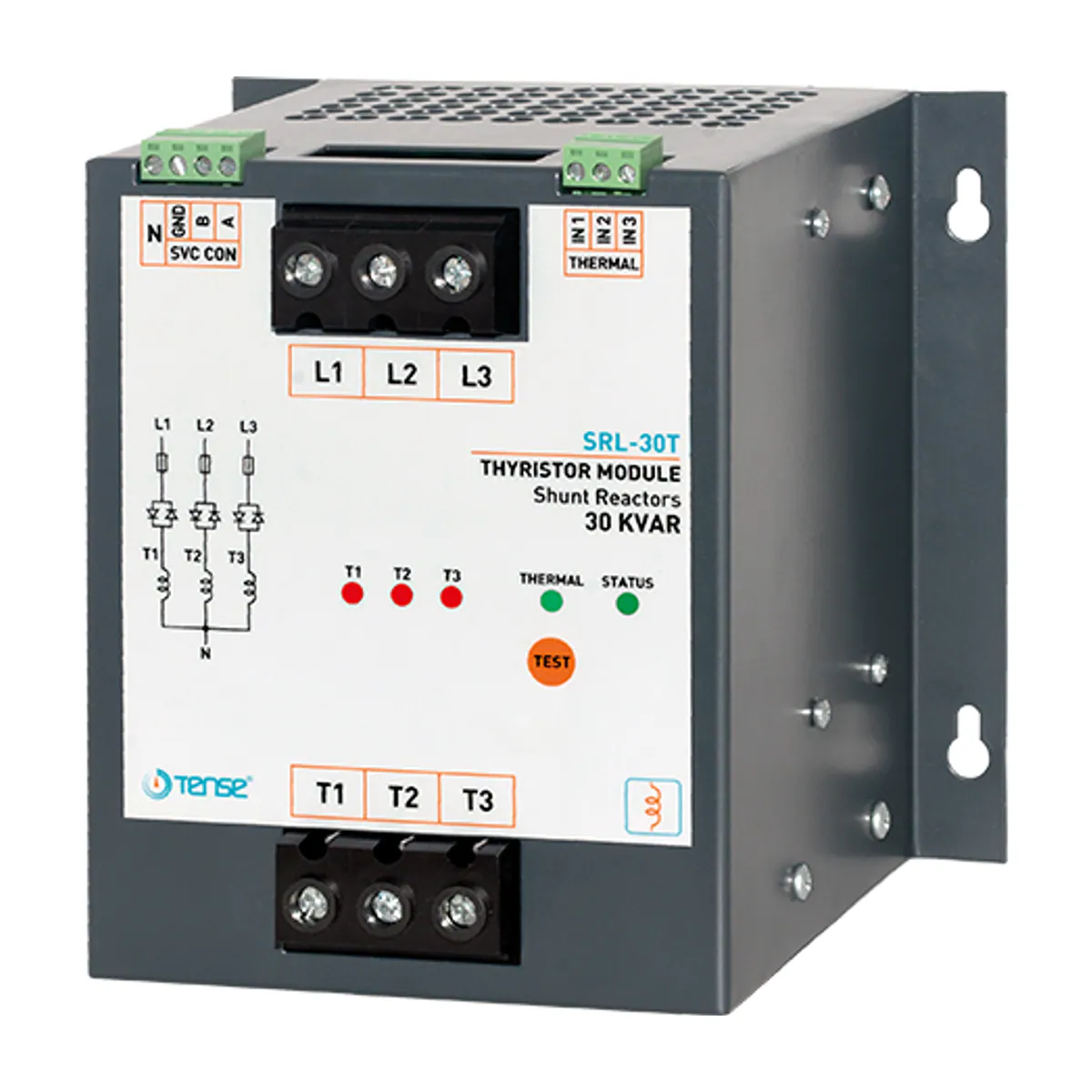

Tense SRL-30T SVC Inductive Load Driver, 30 kVAr
- Brand: Tense
- SKU: SRL-30T
- MPN: SRL-30T
- Price: 11350.50 TRY + VAT · incl. VAT 13620.60 TRY
- Availability: In stock
- SVC Inductive Load Drivers
- Selection guide: SVC Inductive Load Drivers Selection Guide: Technical Criteria & Application Standards
Tense SRL-30T is an SVC inductive load driver. Maximum Inductive Power: 30 kVAr; Operating Voltage: 85–260 VAC; Dimensions / Enclosure: 170 × 130 × 140 mm; Maximum Connectable Shunt Reactor: 3 × TNS-10S (230V); Recommended Cable Cross-section: 35 mm². TENSE Inductive Load Drivers can be used together with new-generation TENSE reactive power control relays with SVC capability. The inductive load driver operating with the reactive power control relay is designed to drive 3 single-phase shunt reactors in total, 1 per phase. In this way, the shunt reactors are triggered in proportion to the demand of each phase and are brought into service only as much as needed, providing full control. Key Features: 30kVAr Shunt Reactor Driving Capacity (10kVAr per Phase); Separate Thermal Input for Each Shunt Reactor; Switching In Between 0% and 100%; Instant Response; System Test Capability with Test Button; Thermal and Status Indicator LEDs; Separate Driving Indicator LED for T1, T2 and T3; Cooling Fan That Activates During Driving.
| Maximum Inductive Power | 30 kVAr |
|---|---|
| Operating Voltage | 85–260 V AC |
| Dimensions / Enclosure | 170 × 130 × 140 mm |
| Maximum Connectable Shunt Reactor | 3 × TNS-10S (230V) |
| Recommended Cable Cross-section | 35 mm² |
| Maximum Fuse Current | 100 A |
| Communication | Modbus |
| Functions | Mikroişlemci tabanlı, Manuel test |
| Key Features | 30kVAr Şönt Reaktör Sürme Kapasitesi (Faz başına 10kVAr); Her Şönt Reaktör için Ayrı Termik Girişi; 0% ila 100% Arasında Devreye Alma; Gecikmesiz Müdahale; Test Butonu ile Sistemi Deneme İmkânı; Thermal ve Durum Bildirim Ledleri; T1, T2 ve T3 için Ayrı Sürme Bildirim Ledi; Sürme Esnasında Devreye Giren Soğutma Fanı |
