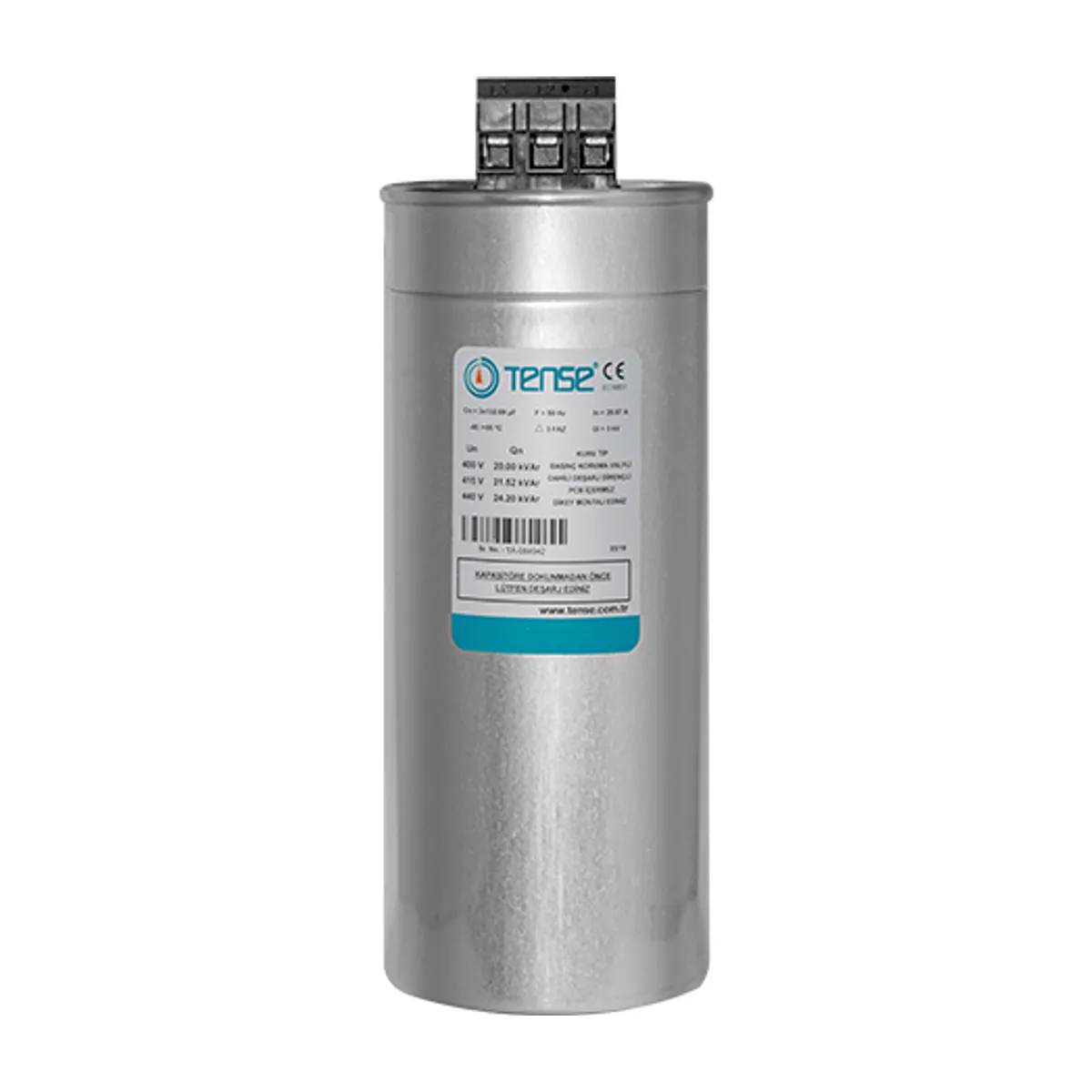

Tense TTK-50 Three-Phase Low-Voltage Power Capacitor, 50 kVAr, 400 VAC
- Brand: Tense
- SKU: TTK-50
- MPN: TTK-50
- Price: 5951.03 TRY + VAT · incl. VAT 7141.24 TRY
- Availability: In stock
- Three-Phase Power Capacitors
- Tense Three-Phase Power Capacitors
- Selection guide: Three-Phase Power Factor Correction Capacitors Selection Guide
Tense TTK-50, three-phase low-voltage power capacitor. Rated Power: 50 kVAr; Capacitive Power (440 V): 60.5 kVAr; Rated Voltage: 400 VAC; Capacitive Power (400 V): 50 kVAr; Capacitive Power (415 V): 53.82 kVAr. LV Power Capacitors are designed for power factor correction in low-voltage systems. The capacitors have a cylindrical aluminum case. Thanks to the overpressure-sensitive disconnect system, capacitor bursting is prevented. Key Features: Power: 50 kVAr (Three-Phase).
| Rated Power | 50 kVAr |
|---|---|
| Capacitive Power (440 V) | 60.5 kVAr |
| Rated Voltage | 400 V AC |
| Capacitive Power (400 V) | 50 kVAr |
| Capacitive Power (415 V) | 53.82 kVAr |
| Rated Current | 72.17 A |
| Dimensions (Diameter × Height) | 136 × 346 mm |
| Gram | 5.65 kg |
| Number of Phases | 3-Phase |
| Body Type | Silindir |
| Standards | IEC 60831-1/2 |
| Overvoltage Withstand | Un + 10%, 24 saatte bir 8 saat |
| Overcurrent Withstand | 1,5 x In |
| Housing Type | Silindirik alüminyum kasa |
| Service Life | >130.000 saat (ortam sıcaklığı +55°C’ye kadar) |
| Ambient Temperature | – 40°C – +55°C |
| Cooling Type | Doğal hava soğutmalı. Kasa sıcaklığı, kasanın tepesinde en fazla 60°C olmalıdır |
| Dielectric System | MKP metalize edilmiş polipropilen film, kendini onarma özellikli |
| Safety Features | Aşırı basınca duyarlı 3 faz ayırıcı |
| Mounting Style | Dikey |
| Key Features | Güç : 50 kVAr (Trifaze) |
