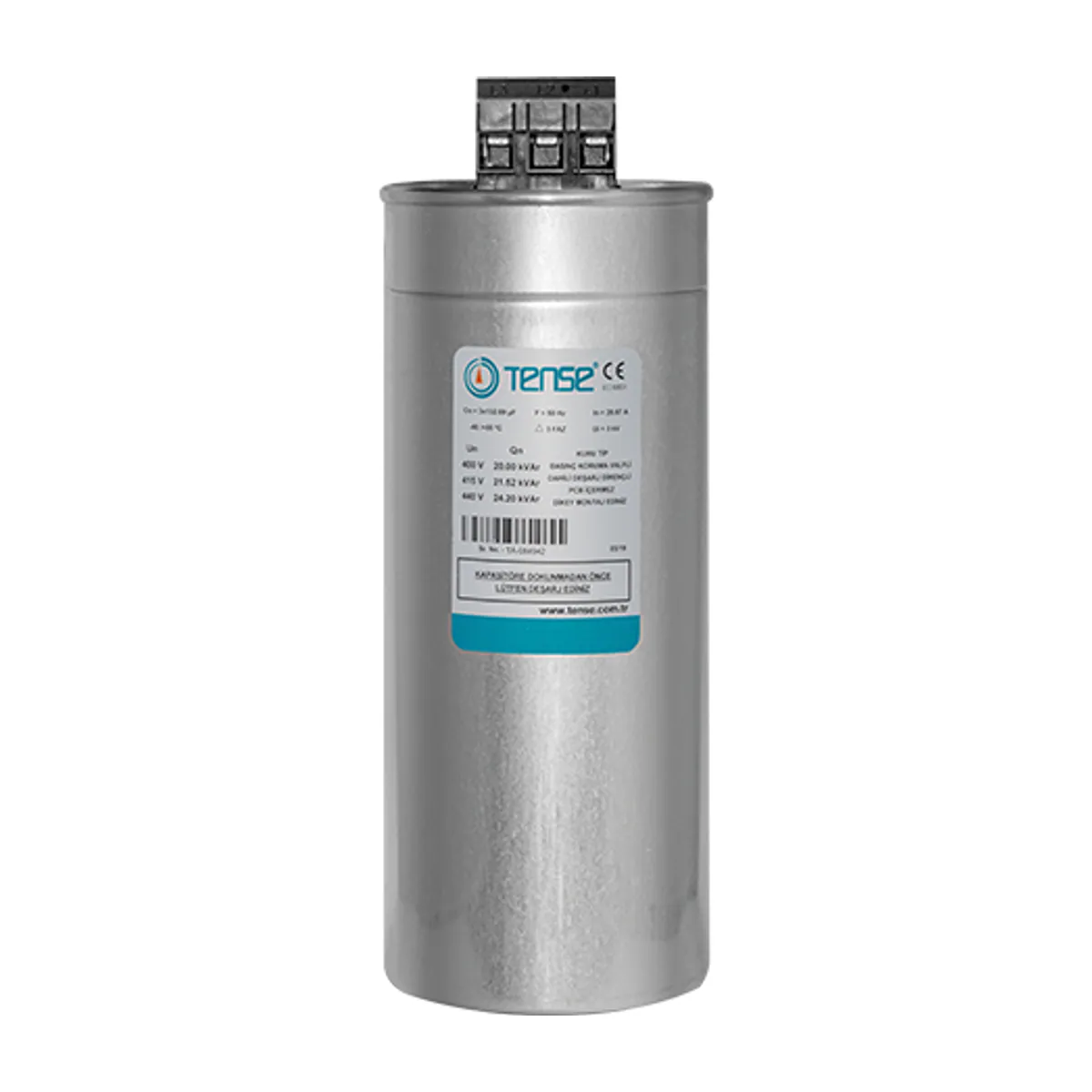

Tense TTKB-20 525 V Heavy-Duty Three-Phase Power Capacitor, 20 kVAr, 525 VAC
- Brand: Tense
- SKU: TTKB-20
- MPN: TTKB-20
- Price: 3127.21 TRY + VAT · incl. VAT 3752.65 TRY
- Availability: In stock
- Three-Phase Power Capacitors
- Tense Three-Phase Power Capacitors
- Selection guide: Three-Phase Power Factor Correction Capacitors Selection Guide
Tense TTKB-20, 525 V heavy-duty three-phase power capacitor. Rated Power: 20 kVAr; Rated Voltage: 525 VAC; Duty Class: Heavy duty; Output Power (480 V): 16.7 kVAr; Output Power (525 V): 20 kVAr. LV Power Capacitors are designed for power factor correction in low-voltage systems. The capacitors have a cylindrical aluminum case. Thanks to the overpressure-sensitive disconnect system, capacitor bursting is prevented. Key Features: Power: 20 kVAr (Three-Phase).
| Rated Power | 20 kVAr |
|---|---|
| Rated Voltage | 525 V AC |
| Duty Class | Ağır hizmet |
| Output Power (480 V) | 16.7 kVAr |
| Output Power (525 V) | 20 kVAr |
| Rated Current | 21.99 A |
| Dimensions (Diameter × Height) | 116 × 243 mm |
| Gram | 2.6 kg |
| Number of Phases | 3-Phase |
| Body Type | Silindir |
| Standards | IEC 60831-1/2 |
| Overvoltage Withstand | Un + 10%, 24 saatte bir 8 saat |
| Overcurrent Withstand | 1,5 x In |
| Housing Type | Silindirik alüminyum kasa |
| Service Life | >130.000 saat (ortam sıcaklığı +55°C’ye kadar) |
| Ambient Temperature | – 40°C – +55°C |
| Cooling Type | Doğal hava soğutmalı. Kasa sıcaklığı, kasanın tepesinde en fazla 60°C olmalıdır |
| Dielectric System | MKP metalize edilmiş polipropilen film, kendini onarma özellikli |
| Safety Features | Aşırı basınca duyarlı 3 faz ayırıcı |
| Mounting Style | Dikey |
| Key Features | Güç : 20 kVAr (Trifaze) |
