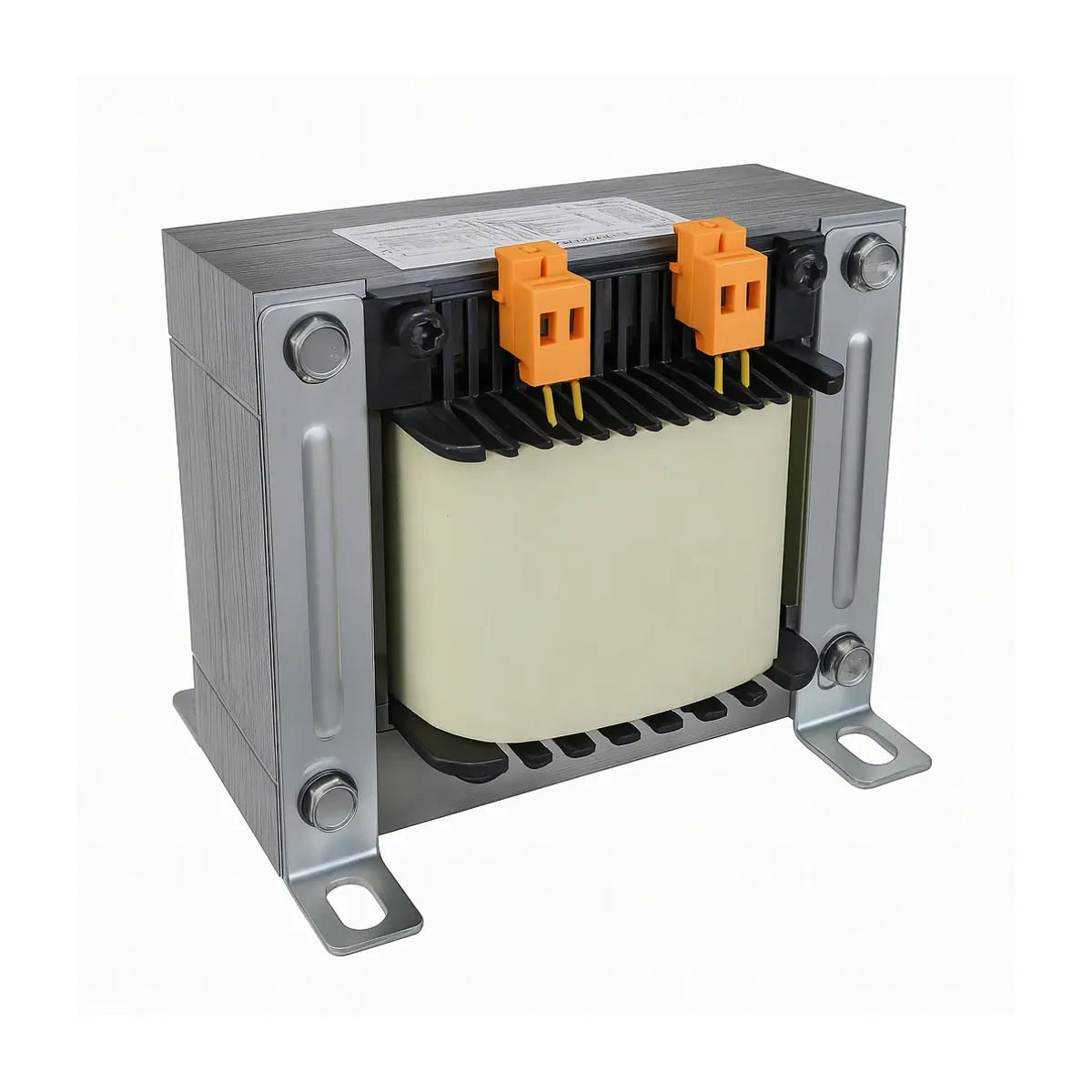

Tibcon 0.5 kVAr Single-Phase Harmonic Filter 7% - HRT-71230.5
- Brand: Tibcon
- SKU: TBHR5000
- MPN: TBHR5000
- Price: 1092.39 TRY + VAT · incl. VAT 1310.87 TRY
- Availability: In stock
- Single-Phase Harmonic Filters
- Selection guide: Single-Phase Harmonic Filters Selection Guide: Technical Criteria & Application Standards
Tibcon 0.5 kVAr Single-Phase Harmonic Filter 7% - HRT-71230.5. Single-Phase Harmonic Filters are used in power factor correction panels with drive and switching loads. Technical data: Power 0.5 kVAr. Stock code: TBHR5000.
| Power | 0.5 kVAr |
|---|---|
| Inductance | 31,8 mH |
| Current | 2,9 A (I rms) |
| Connection Type | Klemens |
| Product Net Weight | 1.2 kg |
| Reactor detuning factor | p=%7 |
| Resonance Frequency | 189 Hz |
| Standards | EN 61558-1, EN 61558 2-20, EN 60289 ve EN60076-6 |
| Frequency | 50 Hz (60 Hz Opsiyonel) |
| Inductance Tolerance | %3 |
| IP Rating | IP00 |
| Relative Humidity | %95 Yoğunlaşmayan (DIN 40040) |
| Maximum Operating Altitude Permissible | 0–2000 m |
| Thermal Protection | 120C (NC kontak) |
