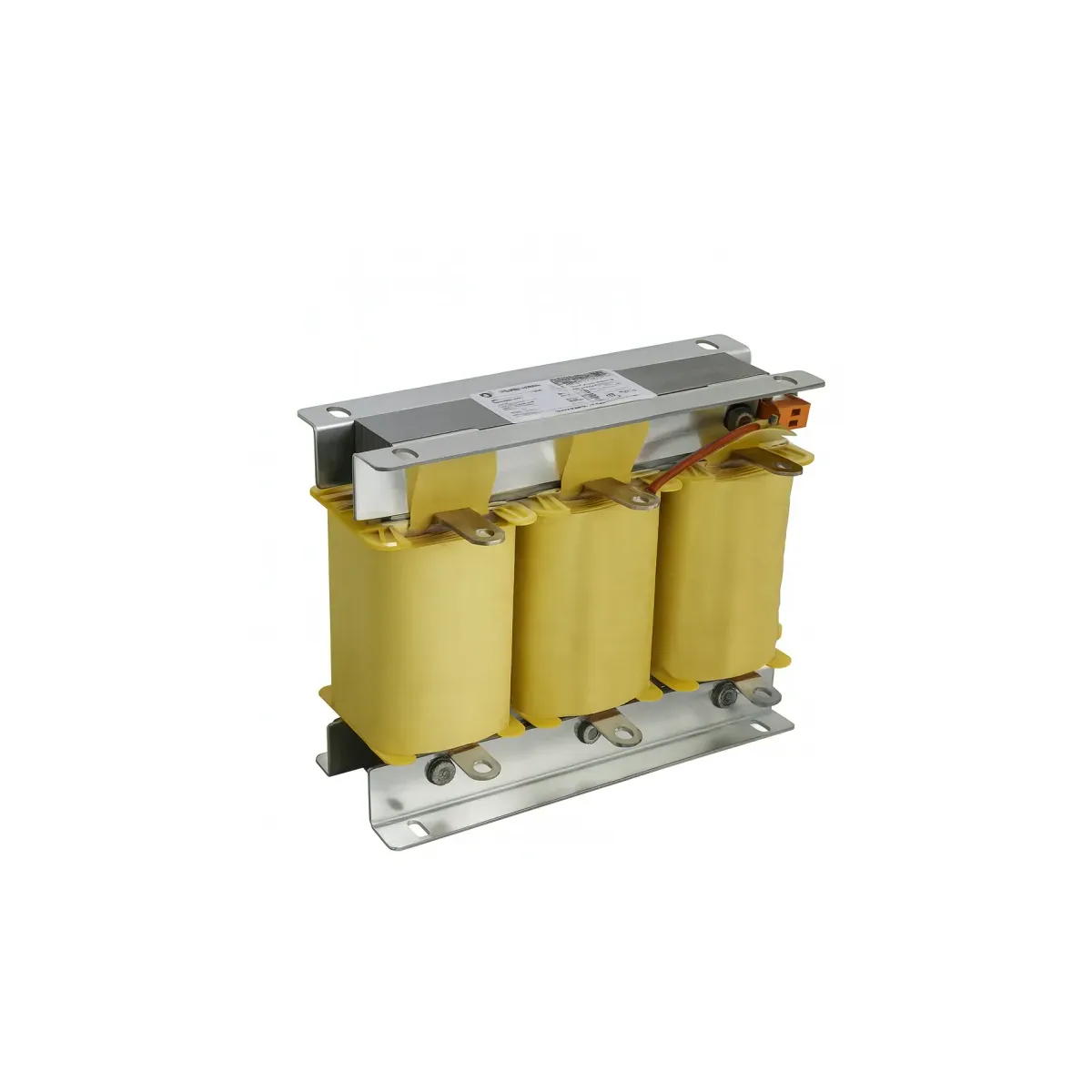

Tibcon 1.5 kVAr Three-Phase Harmonic Filter 7% - HRT-73401.5
- Brand: Tibcon
- SKU: TBHR5202
- MPN: TBHR5202
- Price: 2665.43 TRY + VAT · incl. VAT 3198.52 TRY
- Availability: In stock
- Three-Phase Harmonic Filters
- Tibcon Three-Phase Harmonic Filters
- Selection guide: Three-Phase Harmonic Filters Selection Guide: Technical Criteria and Engineering Practice
Tibcon 1.5 kVAr Three-Phase Harmonic Filter 7% - HRT-73401.5. Three-Phase Harmonic Filters are used in Power Factor Correction panels with drives and switching loads. Technical data: Power 1.5 kVAr. Stock code: TBHR5202.
| Power | 1.5 kVAr |
|---|---|
| Inductance | 25,53 mH |
| Current | 2,4 A (I rms) |
| Connection Type | Klemens |
| Product Net Weight | 1.5 kg |
| Reactor detuning factor | p=%7 |
| Resonance Frequency | 189 Hz |
| Standards | EN 61558-1, EN 61558 2-20, EN 60289 ve EN60076-6 |
| Frequency | 50 Hz (60 Hz Opsiyonel) |
| Inductance Tolerance | %3 |
| IP Rating | IP00 |
| Relative Humidity | %95 Yoğunlaşmayan (DIN 40040) |
| Maximum Operating Altitude Permissible | 0–2000 m |
| Thermal Protection | 120C (NC kontak) |
