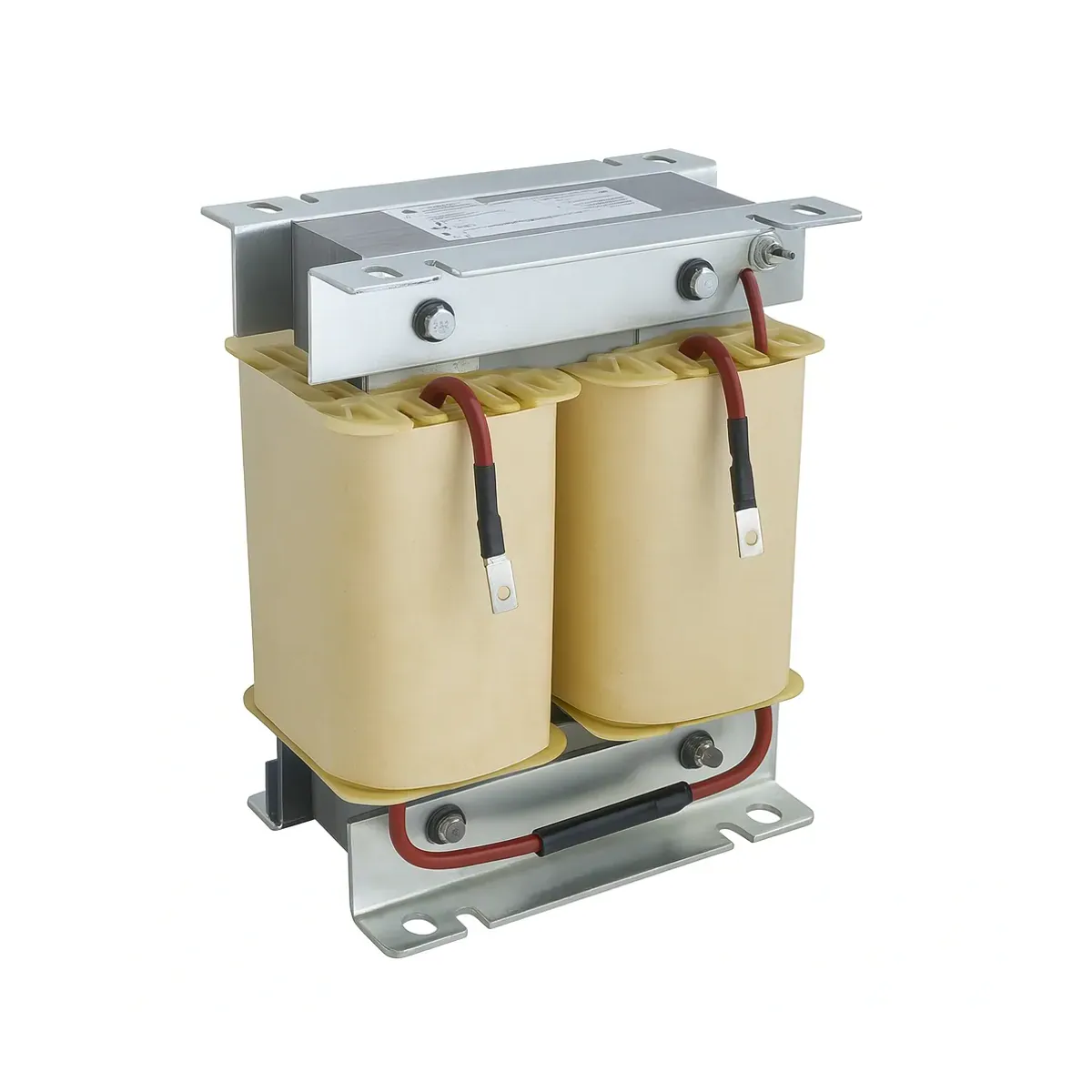

Tibcon 1 kVAr Single-Phase Shunt Reactor - TBSR5402
- Brand: Tibcon
- SKU: ŞM-231
- MPN: TBSR5402
- Price: 2512.49 TRY + VAT · incl. VAT 3014.99 TRY
- Availability: In stock
- Single-Phase Shunt Reactors
- Tibcon Single-Phase Shunt Reactors
- Selection guide: Single-Phase Shunt Reactors Selection Guide: Technical Criteria & Application Standards
Tibcon 1 kVAr Single-Phase Shunt Reactor - TBSR5402. Single-Phase Shunt Reactors are used to balance the capacitive effect of long cables, UPS systems and unloaded capacitors. Technical data: Voltage 230V, Power 1 kVAr. Stock code: ŞM-231.
| Voltage | 230 V |
|---|---|
| Power | 1 kVAr |
| Current | 4.34 A |
| Inductance | 168 mH |
| Thermal Protection | 120C (NC kontak) |
| Connection Type | Klemens |
| Product Net Weight | 6.5 kg |
| Dimensions | 145 x 150 x 130 mm (A x B x C, TİP1 çizimi) |
| Standards | EN 61558-1, EN 61558 2-20, EN 60289 ve EN60076-6 |
| Frequency | 50 Hz (60 Hz Opsiyonel) |
| Inductance Tolerance | %3 |
| Magnetic Circuit | Yüksek manyetik geçirkenlikli 0,35 mm silisli laminasyon |
| IP Rating | IP00 |
| Relative Humidity | %95 Yoğunlaşmayan (DIN 40040) |
| Maximum Operating Altitude Permissible | 0–2000 m |
| Operating Temperature | -10 °C … +40 °C |
