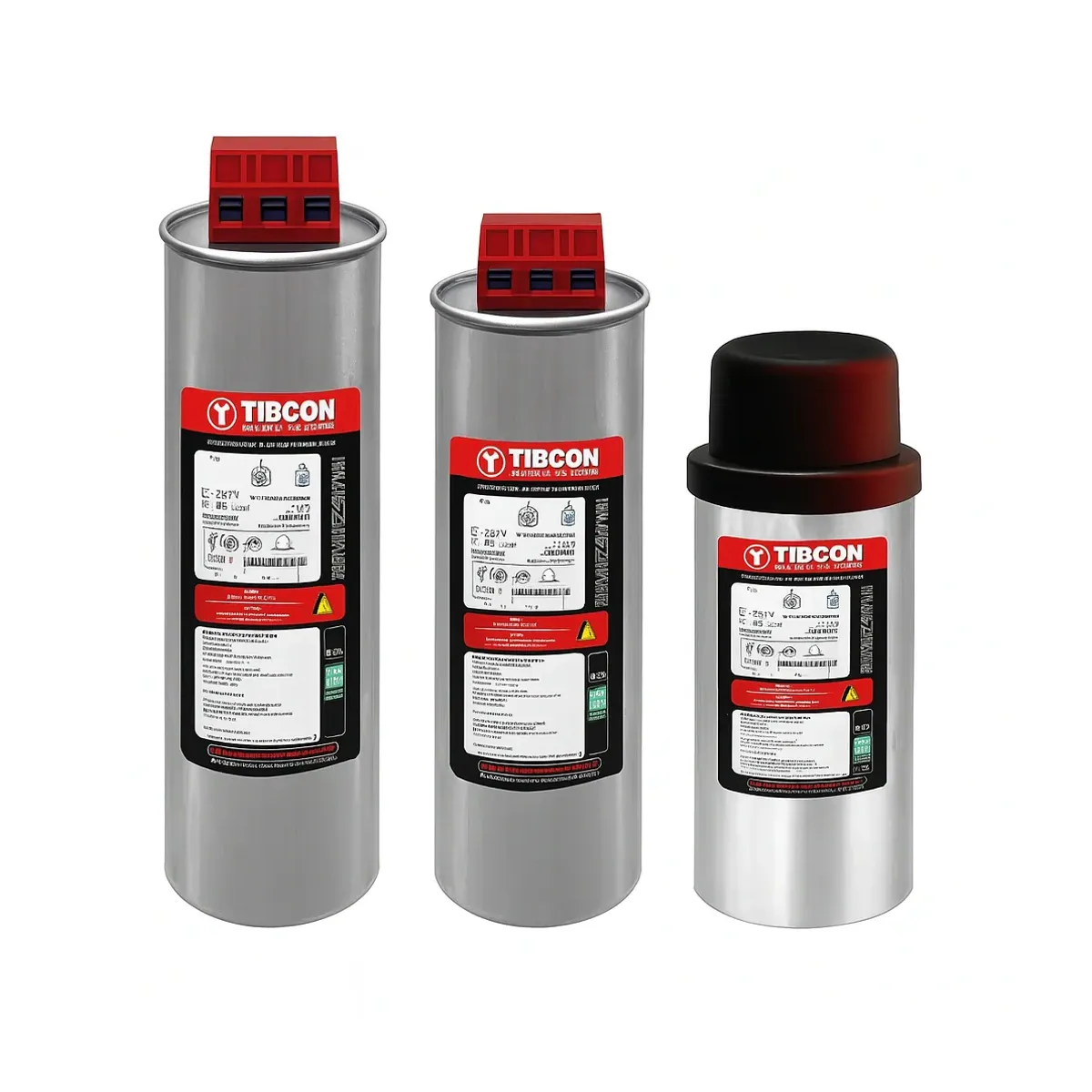

Tibcon 14.1 kVAr 440V 450V 460V Heavy-Duty Cylindrical Capacitor - TBC1305
- Brand: Tibcon
- SKU: HD-CYL-14,1-440-SCR
- MPN: TBC1305
- Price: 1679.04 TRY + VAT · incl. VAT 2014.85 TRY
- Availability: In stock
- Three-Phase Power Capacitors
- Tibcon Three-Phase Power Capacitors
- Selection guide: Three-Phase Power Factor Correction Capacitors Selection Guide
Tibcon 14.1 kVAr 440V 450V 460V Heavy-Duty Cylindrical Capacitor - TBC1305. Three-Phase Power Capacitors are used in staged or fixed reactive power correction in Power Factor Correction panels. Technical values: Size Type 76x247mm, Voltage 450VAC, Power 14.1 kVAr. Stock code: HD-CYL-14,1-440-SCR.
| Size Type | 76x247mm |
|---|---|
| Voltage | 450 V AC |
| Power | 14.1 kVAr |
| Reactive power by voltage | 440 VAC: 14,1 kVAr; 450 VAC: 14,7 kVAr; 460 VAC: 15,4 kVAr |
| Capacitance | 3x77 µF |
| Current | 18.5 A |
| Standards | IEC 60831-1&2, IS 13340 |
| Frequency | 50/60 Hz |
| Maximum Overvoltage | Un + %10 - 8 sa/24 sa; Un + %15 - 30 min/24 sa; Un + %20 - 5 min/24 sa; Un + %30 - 1 min/24 sa |
| Dielectric | MPP Film - Kendini Onarabilen |
| IP Rating | IP20 |
| Cooling Type | Doğal Soğutma |
| Maximum Operating Altitude Permissible | 4000 mt |
| Discharge Resistor | Dahili deşarj direnci 50 voltun altına 60 sn'de düşer |
| Use environment | Dahili ve Harici |
| Rated Lifetime | 130.000 saat (+65°) | 180.000 saat (+55°) | 100.000 saat (-25°) | 80.000 saat (-40°) |
| Impulse Current | 200 x In'ye kadar |
| Capacitance Tolerance | -%5 … +%10 |
| Test Voltage (Terminal-Terminal) | 2,15xUn, AC 2 sn |
| Test Voltage (Terminal to Case) | 2xUn+2000 V veya 3000V AC 10 s |
| Operating Temperature | -25 °C … +65 °C |
| Mounting Position | Yatay ve Dikey |
| Maximum Humidity | %95 |
| Protection Type | Kuru tip aşırı basınçta açan, kendi kendini onarabilen |
| Impregnant | PCB içermez Reçineli Koruma |
| Case | Alüminyum Kasa |
| Grounding and Mounting | M12 Civata ile |
