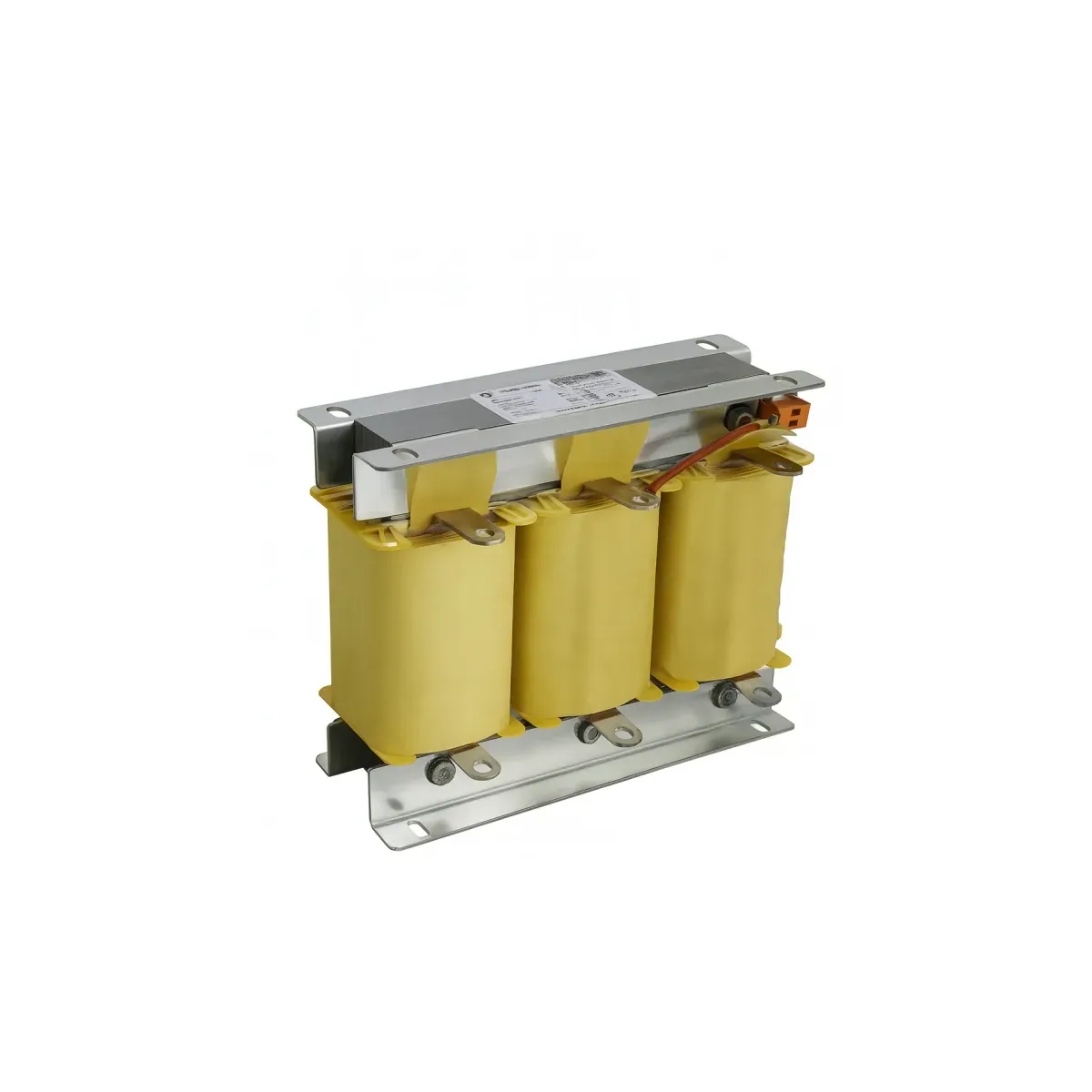

Tibcon 15 kVAr Three-Phase Harmonic Filter 7% - HRT-734015
- Brand: Tibcon
- SKU: TBHR5216
- MPN: TBHR5216
- Price: 5920.74 TRY + VAT · incl. VAT 7104.89 TRY
- Availability: In stock
- Three-Phase Harmonic Filters
- Tibcon Three-Phase Harmonic Filters
- Selection guide: Three-Phase Harmonic Filters Selection Guide: Technical Criteria and Engineering Practice
Tibcon 15 kVAr Three-Phase Harmonic Filter 7% - HRT-734015. Three-Phase Harmonic Filters are used in Power Factor Correction panels with drives and switching loads. Technical data: Power 15 kVAr. Stock code: TBHR5216.
| Power | 15 kVAr |
|---|---|
| Inductance | 2,55 mH |
| Current | 24 A (I rms) |
| Connection Type | Klemens |
| Product Net Weight | 10 kg |
| Reactor detuning factor | p=%7 |
| Resonance Frequency | 189 Hz |
| Standards | EN 61558-1, EN 61558 2-20, EN 60289 ve EN60076-6 |
| Frequency | 50 Hz (60 Hz Opsiyonel) |
| Inductance Tolerance | %3 |
| IP Rating | IP00 |
| Relative Humidity | %95 Yoğunlaşmayan (DIN 40040) |
| Maximum Operating Altitude Permissible | 0–2000 m |
| Thermal Protection | 120C (NC kontak) |
