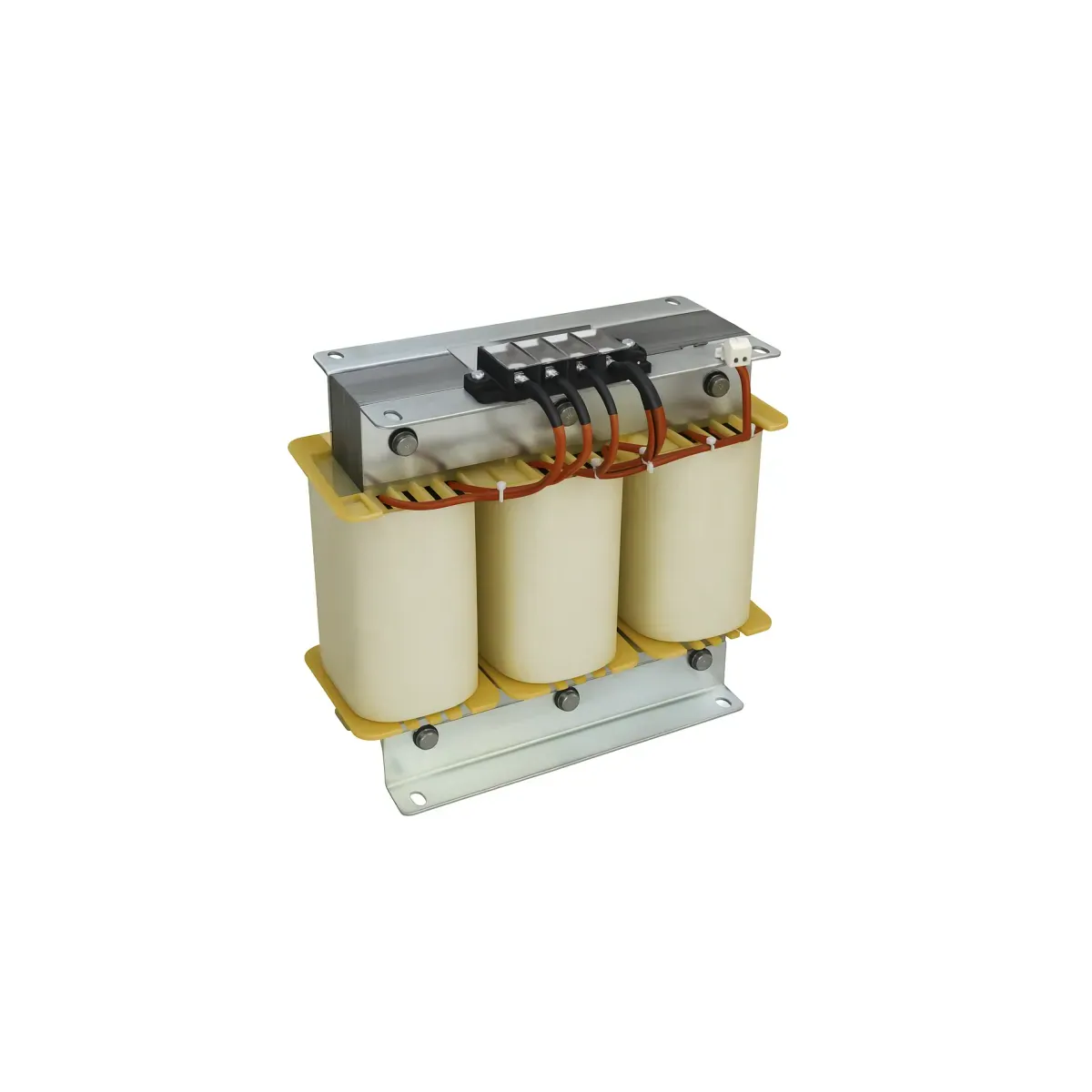

Tibcon 2 kVAr Three-Phase Shunt Reactor - TBSR5605
- Brand: Tibcon
- SKU: ŞT-402
- MPN: TBSR5605
- Price: 5811.50 TRY + VAT · incl. VAT 6973.80 TRY
- Availability: In stock
- Three-Phase Shunt Reactors
- Tibcon Three-Phase Shunt Reactors
- Selection guide: Three-Phase Shunt Reactors Selection Guide: Technical Criteria and Engineering Practice
Tibcon 2 kVAr Three-Phase Shunt Reactor - TBSR5605. Three-Phase Shunt Reactors are used to balance the capacitive effect of long cables, UPS and unloaded capacitors. Technical data: Voltage 400V, Power 2 kVAr. Stock code: ŞT-402.
| Voltage | 400 V |
|---|---|
| Power | 2 kVAr |
| Current | 2.88 A |
| Inductance | 255 mH |
| Thermal Protection | 120C (NC kontak) |
| Connection Type | Klemens |
| Product Net Weight | 11.6 kg |
| Dimensions | 240 x 230 x 160 mm (A x B x C, TİP1 çizimi) |
| Standards | EN 61558-1, EN 61558 2-20, EN 60289 ve EN60076-6 |
| Frequency | 50 Hz (60 Hz Opsiyonel) |
| Inductance Tolerance | %3 |
| Magnetic Circuit | Yüksek manyetik geçirkenlikli 0,35 mm silisli laminasyon |
| IP Rating | IP00 |
| Relative Humidity | %95 Yoğunlaşmayan (DIN 40040) |
| Maximum Operating Altitude Permissible | 0–2000 m |
| Operating Temperature | -10 °C … +40 °C |
