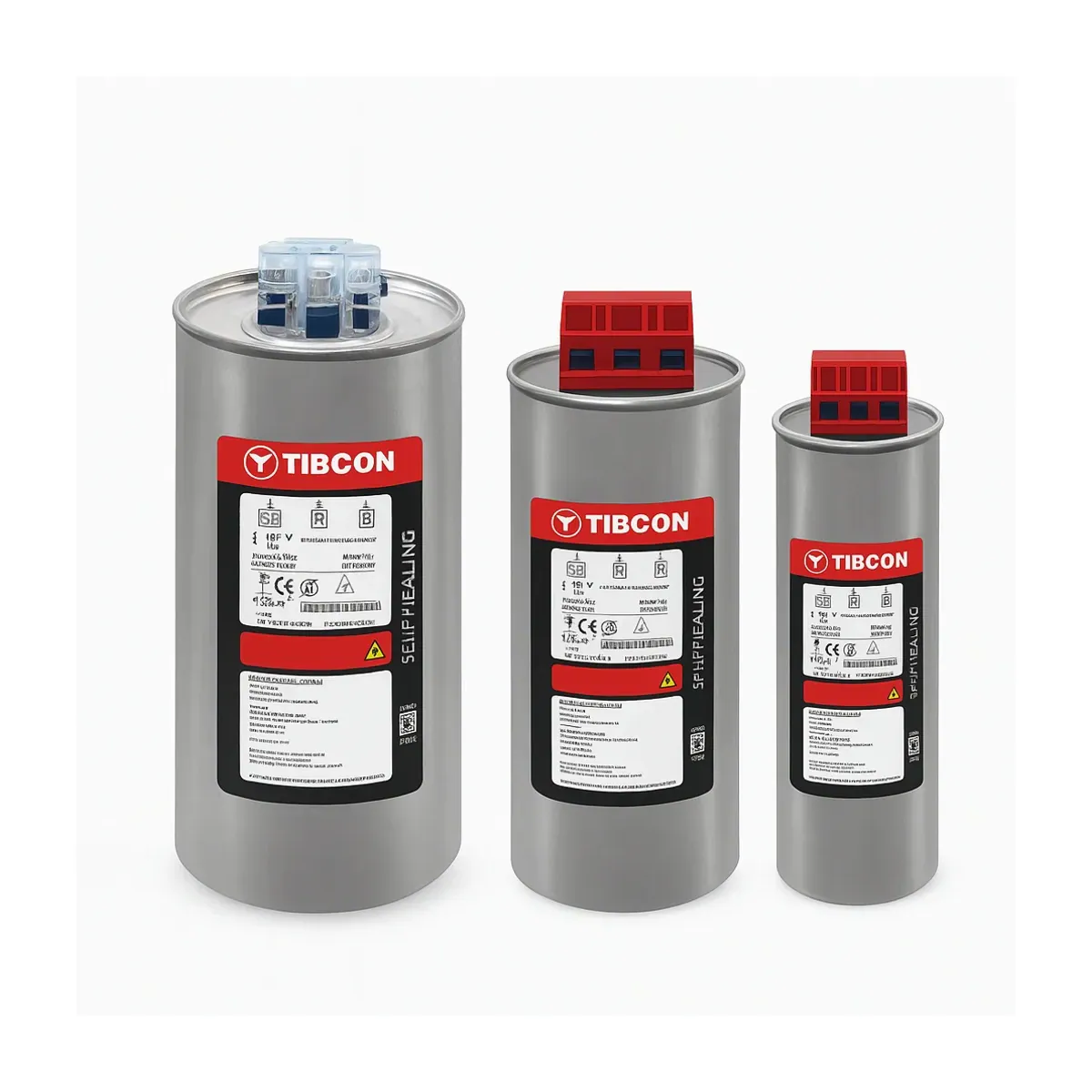

Tibcon 30 kVAr Extra Heavy-Duty Cylindrical Capacitor 525V - TBC1508
- Brand: Tibcon
- SKU: SHD-CYL-30-525-SCR
- MPN: TBC1508
- Price: 3428.04 TRY + VAT · incl. VAT 4113.65 TRY
- Availability: In stock
- Three-Phase Power Capacitors
- Tibcon Three-Phase Power Capacitors
- Selection guide: Three-Phase Power Factor Correction Capacitors Selection Guide
Tibcon 30 kVAr Extra Heavy-Duty Cylindrical Capacitor 525V - TBC1508. Three-Phase Power Capacitors are used in staged or fixed reactive power correction in Power Factor Correction panels. Technical values: Size Type 116x247mm, Voltage 525VAC, Power 30 kVAr. Stock code: SHD-CYL-30-525-SCR.
| Size Type | 116x247mm |
|---|---|
| Voltage | 525 V AC |
| Power | 30 kVAr |
| Reactive power by voltage | 525 VAC: 30 kVAr; 480 VAC: 25 kVAr; 440 VAC: 21 kVAr; 400 VAC: 17,4 kVAr |
| Capacitance | 3x115,5 µF |
| Current | 33 A |
| Standards | IEC 60831-1&2, IS 13340 |
| Frequency | 50/60 Hz |
| Maximum Overvoltage | Un + %10 - 8 sa/24 sa; Un + %15 - 30 min/24 sa; Un + %20 - 5 min/24 sa; Un + %30 - 1 min/24 sa |
| Dielectric | MPP Film - Kendini Onarabilen |
| IP Rating | IP20 |
| Cooling Type | Doğal Soğutma |
| Maximum Operating Altitude Permissible | 4000 mt |
| Discharge Resistor | Dahili deşarj direnci 50 voltun altına 60 sn'de düşer |
| Use environment | Dahili ve Harici |
| Rated Lifetime | 130.000 saat (+65°) | 180.000 saat (+55°) | 100.000 saat (-25°) | 80.000 saat (-40°) |
| Impulse Current | 200 x In'ye kadar |
| Capacitance Tolerance | -%5 … +%10 |
| Test Voltage (Terminal-Terminal) | 2,15xUn, AC 2 sn |
| Test Voltage (Terminal to Case) | 2xUn+2000 V veya 3000V AC 10 s |
| Operating Temperature | -25 °C … +65 °C |
| Mounting Position | Yatay ve Dikey |
| Maximum Humidity | %95 |
| Protection Type | Kuru tip aşırı basınçta açan, kendi kendini onarabilen |
| Impregnant | PCB içermez Reçineli Koruma |
| Case | Alüminyum Kasa |
| Grounding and Mounting | M12 Civata ile |
