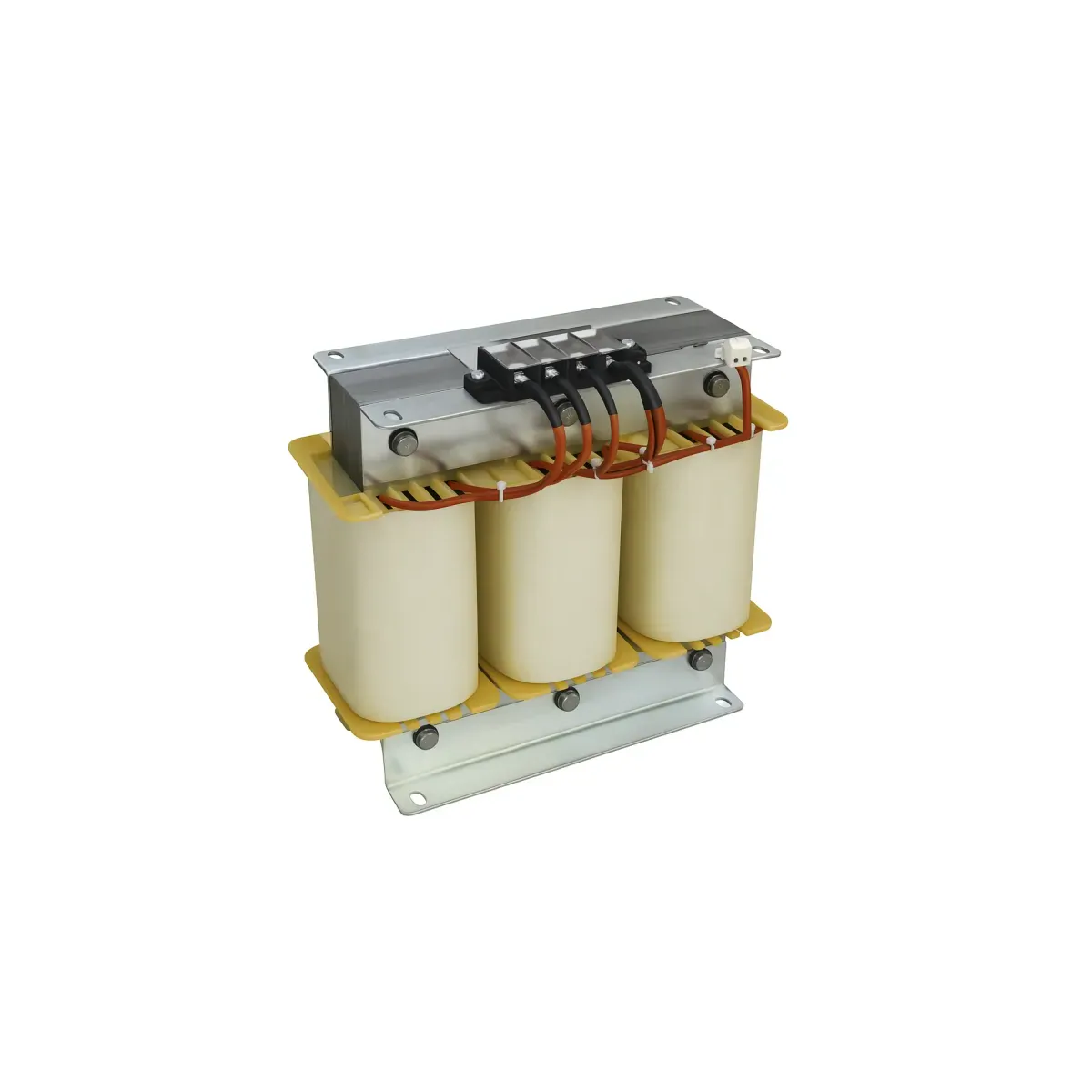

Tibcon 40 kVAr Three-Phase Shunt Reactor - TBSR5620
- Brand: Tibcon
- SKU: ŞT-4040
- MPN: TBSR5620
- Price: 63489.59 TRY + VAT · incl. VAT 76187.51 TRY
- Availability: In stock
- Three-Phase Shunt Reactors
- Tibcon Three-Phase Shunt Reactors
- Selection guide: Three-Phase Shunt Reactors Selection Guide: Technical Criteria and Engineering Practice
Tibcon 40 kVAr Three-Phase Shunt Reactor - TBSR5620. Three-Phase Shunt Reactors are used to balance the capacitive effect of long cables, UPS and unloaded capacitors. Technical data: Voltage 400V, Power 40 kVAr. Stock code: ŞT-4040.
| Voltage | 400 V |
|---|---|
| Power | 40 kVAr |
| Current | 57.6 A |
| Inductance | 12,6 mH |
| Thermal Protection | 120C (NC kontak) |
| Connection Type | Pabuç |
| Product Net Weight | 141 kg |
| Dimensions | 440 x 480 x 300 mm (A x B x C, TİP2 çizimi) |
| Standards | EN 61558-1, EN 61558 2-20, EN 60289 ve EN60076-6 |
| Frequency | 50 Hz (60 Hz Opsiyonel) |
| Inductance Tolerance | %3 |
| Magnetic Circuit | Yüksek manyetik geçirkenlikli 0,35 mm silisli laminasyon |
| IP Rating | IP00 |
| Relative Humidity | %95 Yoğunlaşmayan (DIN 40040) |
| Maximum Operating Altitude Permissible | 0–2000 m |
| Operating Temperature | -10 °C … +40 °C |
