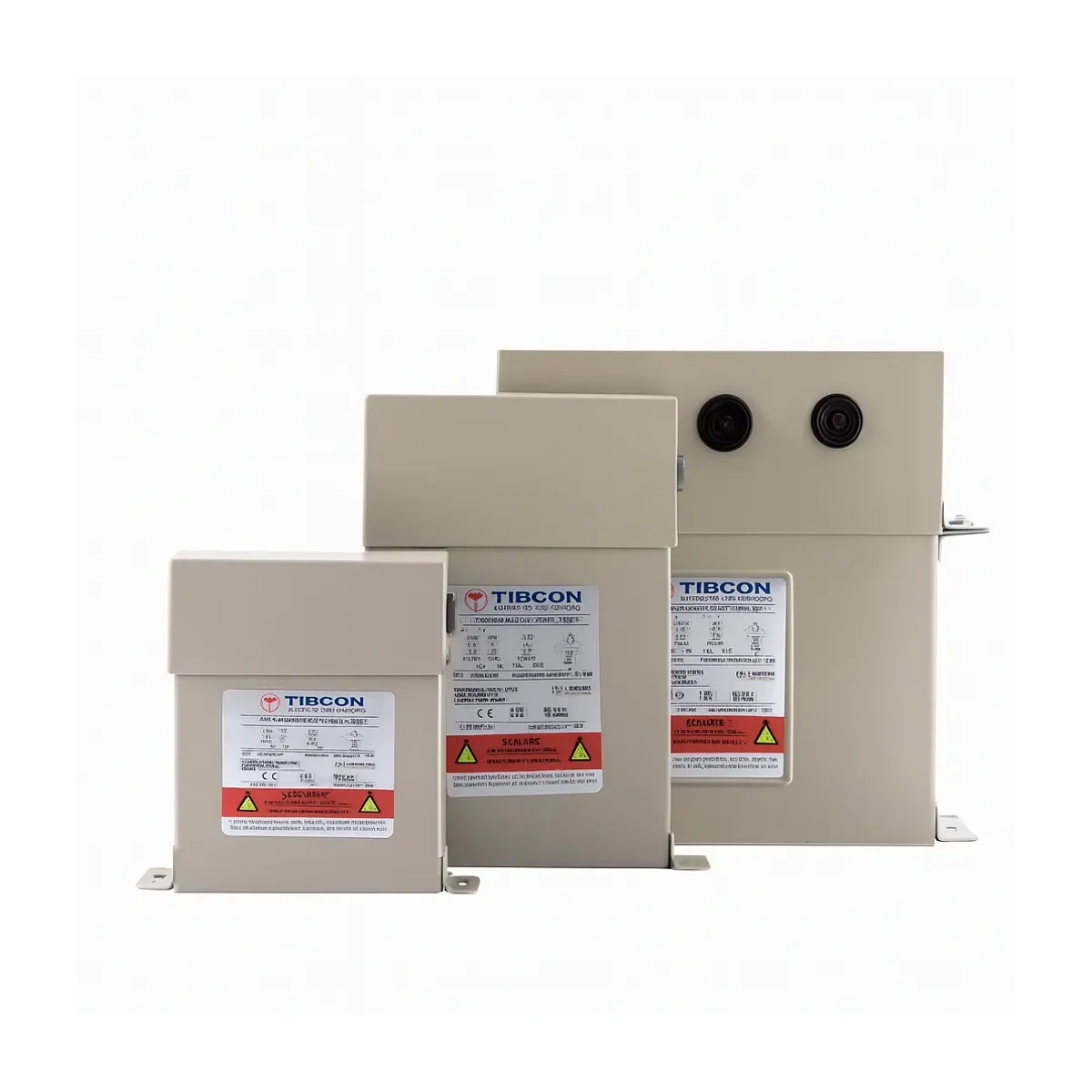

Tibcon 7.5 kVAr 400V 415V 440V Three-Phase Box-Type Capacitor - TBC1205
- Brand: Tibcon
- SKU: BOX-7,5-400-SCR
- MPN: TBC1205
- Price: 799.48 TRY + VAT · incl. VAT 959.38 TRY
- Availability: In stock
- Three-Phase Box Type Power Capacitors
- Selection guide: Three-Phase Box Type Power Capacitors Selection Guide: Technical Criteria & Application Standards
Tibcon 7.5 kVAr 400V 415V 440V Three-Phase Box-Type Capacitor - TBC1205. Three-Phase Box Type Power Capacitors are used in staged or fixed reactive power correction in Power Factor Correction panels. Technical values: Size Type 157x54x213mm, Voltage 400VAC, Power 7.5 kVAr. Stock code: BOX-7,5-400-SCR.
| Size Type | 157x54x213mm |
|---|---|
| Voltage | 400 V AC |
| Power | 7.5 kVAr |
| Reactive power by voltage | 400 VAC: 7,5 kVAr; 415 VAC: 8,07 kVAr; 440 VAC: 9,08 kVAr |
| Capacitance | 3x50 µF |
| Current | 11 A |
| Standards | IEC 60831-1&2, IS 13340 |
| Frequency | 50/60 Hz |
| Maximum Overvoltage | Un + %10 - 8 sa/24 sa; Un + %15 - 30 min/24 sa; Un + %20 - 5 min/24 sa; Un + %30 - 1 min/24 sa |
| Dielectric | MPP Film - Kendini Onarabilen |
| IP Rating | IP20 |
| Cooling Type | Doğal Soğutma |
| Maximum Operating Altitude Permissible | 4000 mt |
| Discharge Resistor | Dahili deşarj direnci 50 voltun altına 60 sn'de düşer |
| Use environment | Dahili ve Harici |
| Rated Lifetime | 130.000 saat (+65°) | 180.000 saat (+55°) | 100.000 saat (-25°) | 80.000 saat (-40°) |
| Impulse Current | 200 x In'ye kadar |
| Capacitance Tolerance | -%5 … +%10 |
| Test Voltage (Terminal-Terminal) | 2,15xUn, AC 2 sn |
| Test Voltage (Terminal to Case) | 2xUn+2000 V veya 3000V AC 10 s |
| Operating Temperature | -25 °C … +65 °C |
| Mounting Position | Yatay ve Dikey |
| Maximum Humidity | %95 |
| Protection Type | Kuru tip aşırı basınçta açan, kendi kendini onarabilen |
| Impregnant | PCB içermez Reçineli Koruma |
| Case | Kutu Tip Çelik Kasa |
