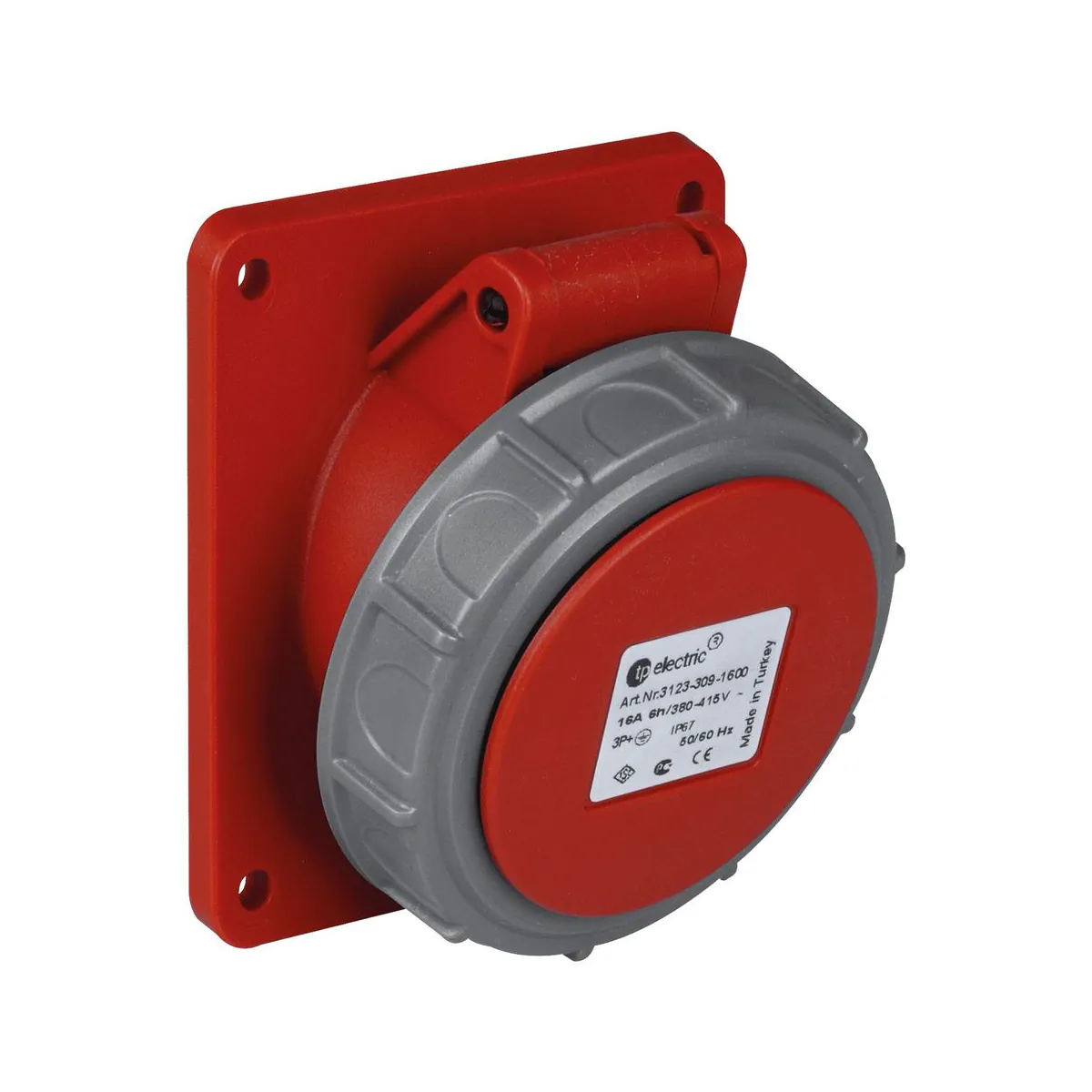

TP Elektrik 3006-309-1600 CEE 5x16A Machine Socket (Angled) (83x90), IP 67, 6h
- Brand: TP Elektrik
- SKU: 3006-309-1600
- MPN: 3006-309-1600
- Price: 936.00 TRY + VAT · incl. VAT 1123.20 TRY
- Availability: In stock
- CEE Angled Panel Sockets
- TP Elektrik CEE Angled Panel Sockets
- Selection guide: CEE Angled Panel Sockets Selection Guide: Technical Criteria and Engineering Practice
TP Elektrik 3006-309-1600, CEE 5x16A machine socket (angled) (83x90). Electrical values: 16 A rated current, 380–415 V AC rated voltage, 50–60 Hz frequency. Usage information: IP 67 protection rating, quick connection, 1-4 mm² cable cross-section, 6h clock position. Technical specifications: Protection Rating: IP 67; Connection Type: Quick Connection; Contacts-Current: 5x16A; Rated Current: 16 A; Frequency: 50–60 Hz; Number of Contacts: 5; Clock Position: 6h; Rated Voltage: 380–415 V AC; Weight: 297 g; Cable Cross-Section: 1-4 mm².
| Poles-Ampere | 5x16A |
|---|---|
| Number of Contacts | 5 |
| Rated Current | 16 A |
| Rated Voltage | 380–415 V AC |
| Frequency | 50/60 Hz |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Connection Type | Hızlı Bağlantı |
| Gram | 297 g |
| Cable Cross-Section | 1–4 mm² |
