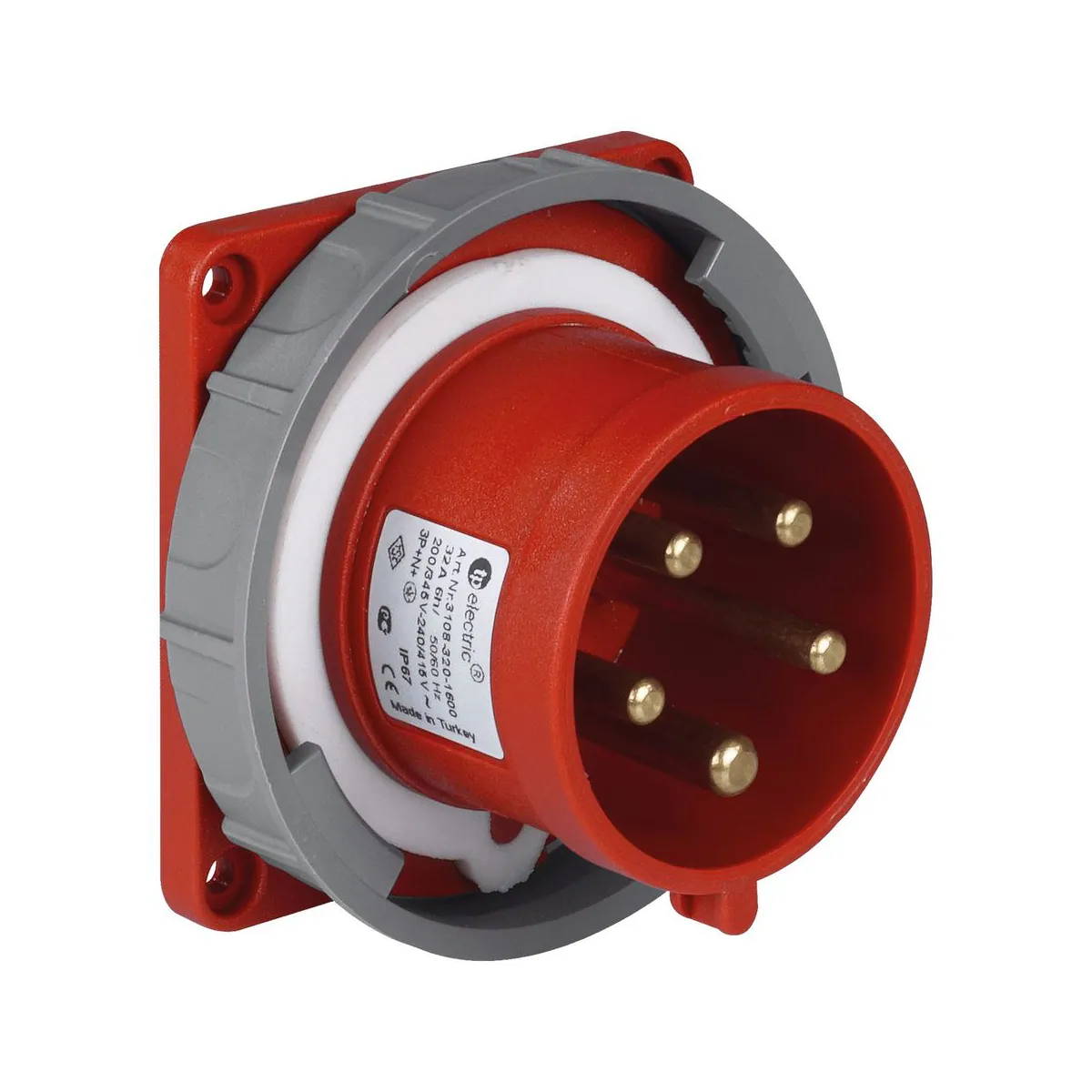

TP Elektrik 3108-320-1600 CEE 5x32A Machine Plug (straight) (83x90), IP 67, 6h
- Brand: TP Elektrik
- SKU: 3108-320-1600
- MPN: 3108-320-1600
- Price: 896.00 TRY + VAT · incl. VAT 1075.20 TRY
- Availability: In stock
- CEE Panel Plugs
- TP Elektrik CEE Panel Plugs
- Selection guide: CEE Panel and Appliance Inlet Plugs Selection Guide
TP Elektrik 3108-320-1600, CEE 5x32A machine plug (straight) (83x90). Electrical values: 32 A rated current, 380–415 V AC rated voltage, 50–60 Hz frequency. Usage information: IP 67 protection rating, screw connection, 2.5-6 mm² cable cross-section, 6h clock position. Technical specifications: Protection Rating: IP 67; Connection Type: Screw Connection; Contacts-Current: 5x32A; Rated Current: 32 A; Frequency: 50–60 Hz; Number of Contacts: 5; Clock Position: 6h; Rated Voltage: 380–415 V AC; Weight: 242 g; Cable Cross-Section: 2.5-6 mm².
| Poles-Ampere | 5x32A |
|---|---|
| Number of Contacts | 5 |
| Rated Current | 32 A |
| Rated Voltage | 380–415 V AC |
| Frequency | 50/60 Hz |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Connection Type | Screw connection |
| Gram | 242 g |
| Cable Cross-Section | 2.5–6 mm² |
